Description

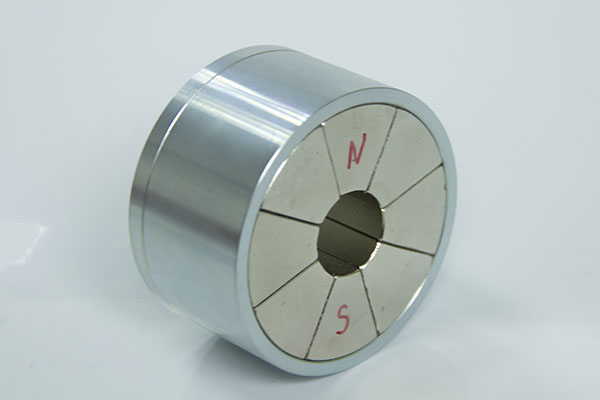

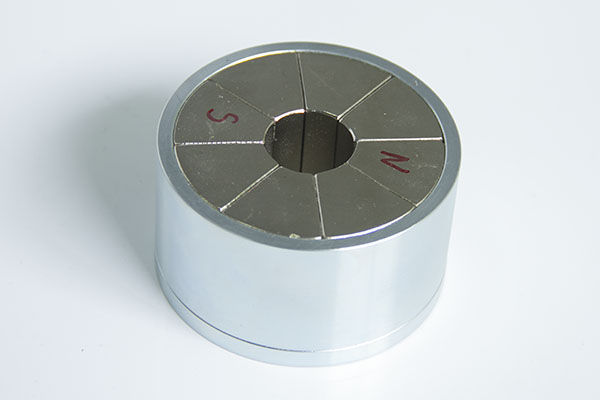

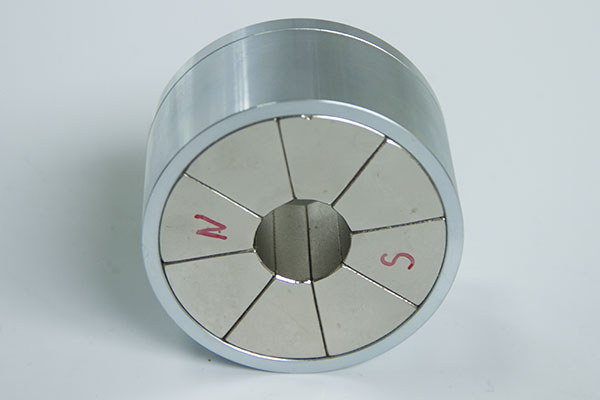

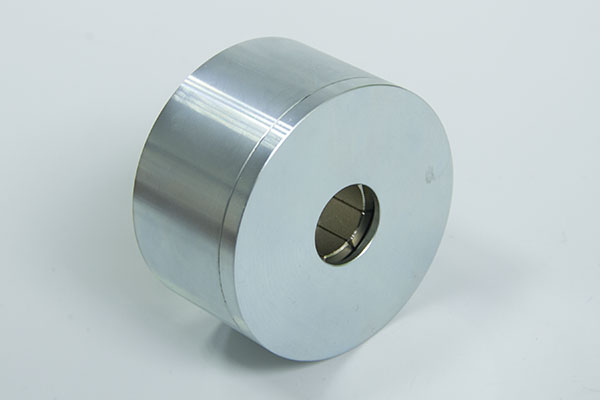

1.05T D75x35mm Halbach Array
A halbach array is a special arrangment of permanent magnets that augments the magnetic field on one side of the array while cancelling the field to near zero on the other side. It can be achieved more stronger magnetic field with fewer magnets.

1. Materials

Magnet: Neodymium Magnet
Hardware part: 10# or 20# steel, martensitic stainless steel

Size: D75x35mm Halbach Array

Center magnetic field: 1.05T



More information about 1.38T halbach array:



Product Name
Halbach Array D75x35mm
Material
N50M Magnets+ 10# steel
Coating
NiCuNi for magnets
Zn for steel
Magnetization Direction
According to the drawing (see following)
Grade
N50M
Brand
FAIZEAL
Size
D75x35mm
Application
Industry
