Pot Magnet

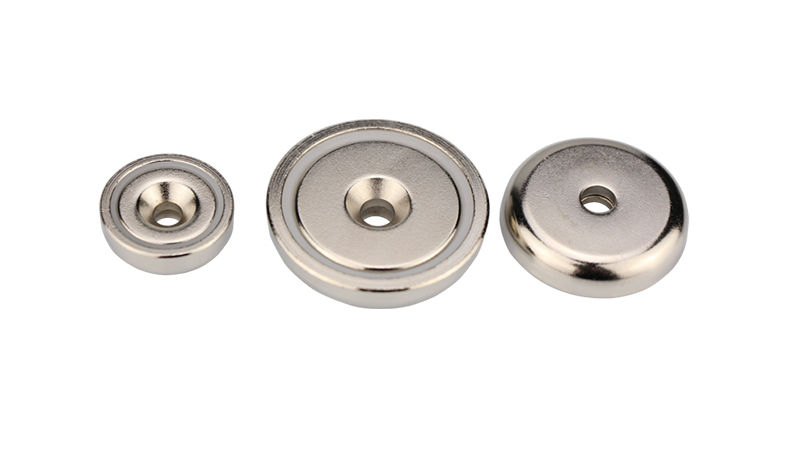

Countersunk Hole Neodymium Pot Magnets

cheap price with high quality
Countersunk Hole Neodymium Pot Magnets-video
Countersunk Hole Neodymium Pot Magnets
Countersunk Hole Neodymium Pot Magnets
Countersunk Hole Neodymium Pot Magnets
Countersunk Hole Neodymium Pot Magnets

Description

Reviews

Countersunk Hole Neodymium Pot Magnets

Model D(mm) d(mm) d1(mm) H(mm) weight(g)  force(kgf)
CUP-A12 12 3.5 6.5 4.5 4 2.5
CUP-A16 16 3.5 6.5 5 7 6
CUP-A20 20 4.5 8.6 7 14 11
CUP-A25 25 5.5 10.6 8 25 22
CUP-A32 32 5.5 10.6 8 42 32
CUP-A36 36 6.5 11.3 8 54 43
CUP-A42 42 6.5 11.3 8.6 78 65
CUP-A48 48 8.5 15.5 11 138 75
CUP-A55 55 8.5 14.5 12 205 95
CUP-A60 60 8.5 14.5 15 305 160
CUP-A70 70 10.5 16.5 17 485 210
CUP-A75 75 10.5 16.5 18 560 250
CUP-A80 80 10.5 16.5 18 668 300
CUP-A90 90 10.5 16.5 18 850 380
CUP-A120 120 12.5 22.5 18 1520 480

Powerful Holding

The pot magnets of FAIZEAL has
powerfull holding for using. It made
if strong neodymium magnets in pot
magnets. Unbeliveable holding for the
size.

Very Durable

Neodymium magnet it has the characteristic of breakability. But this design of pot magnets will not break
by use the steel cups which greatly
increase the longevity of the magnets.

Cost Performance

This design of pot magnets has higher cost performance than normal magnets. It also has power holding with lower price. Accept OEM, if you have any customized design to do. Just contact with us.

Pot Magnets Cross Section

Pot magnets must come into contact with the Steel plate surface to show its full holding power potential. If there is any obstruction between the magnet and the steel target, like even a thin wood veneer, the holding power can be greatly reduced, also the connection should be even across the entire diameter of the magnets base, avoiding high spots like weld seams, screw heads or rivets where possible.
