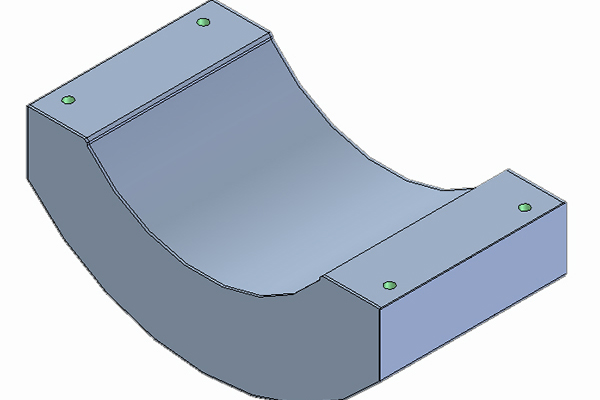

Permanent Magnetic Adsorption Device for Wall-climbing Robot

Halbach Array
Permanent Magnetic Adsorption Device for Wall-climbing Robot
Permanent Magnetic Adsorption Device for Wall-climbing Robot
Permanent Magnetic Adsorption Device for Wall-climbing Robot
Permanent Magnetic Adsorption Device for Wall-climbing Robot
Permanent Magnetic Adsorption Device for Wall-climbing Robot
Get a Quote Now

Description

Reviews

R系列磁力瓦参数表
The parameter table of R series magnetic wheel(NdFeB)

NO. 型号 R(mm) 长L (mm) 宽W (mm) 高H (mm) W1 (mm) H1(mm） R1 M W2 L1 距离10mm厚钢板吸附力(N) 重量 Weight(kgs)
0mm 3mm 5mm
FZR5040 50 42 76 36.5 42 12.5 26 M4 64 20 490 230 150 0.55
FZR5060 50 62 76 36.5 42 12.5 26 M4 64 40 820 400 260 0.83
FZR5080 50 82 76 36.5 42 12.5 26 M4 64 60 1150 570 380 1.10
FZR8040 80 42 115 51 76 20 49 M5 102 20 730 400 300 1.15
FZR8060 80 62 115 51 76 20 49 M5 102 40 1250 730 540 1.68
FZR8080 80 82 115 51 76 20 49 M5 102 60 1750 1050 800 2.20
FZR10040 100 42 152 62 100 26 64 M5 138 20 850 480 340 1.75
FZR10060 100 62 152 62 100 26 64 M5 138 40 1500 900 650 2.55
FZR10080 100 82 152 62 100 26 64 M5 138 60 2150 1300 950 3.40
FZR100100 100 102 152 62 100 26 64 M5 138 80 2800 1700 1250 4.25
FZR12040 120 42 172 70 120 30 80 M5 158 20 1000 600 420 2.25
FZR12060 120 62 172 70 120 30 80 M5 158 40 1750 1100 800 3.28
FZR12080 120 82 172 70 120 30 80 M5 158 60 2500 1600 1200 4.32
FZR120100 120 102 172 70 120 30 80 M5 158 80 3250 2100 1600 5.35
FZR15040 150 42 200 77 142 31 104 M6 186 20 1200 750 560 2.95
FZR15060 150 62 200 77 142 31 104 M6 186 40 2100 1350 1050 4.25
FZR15080 150 82 200 77 142 31 104 M6 186 60 3000 2000 1550 5.65
FZR150100 150 102 200 77 142 31 104 M6 186 80 3950 2550 2050 7.10
FZR150120 150 122 200 77 142 31 104 M6 186 100 4850 3250 2550 8.40

Application

Permanent magnetic adsorption device for wall-climbing robot based on halbach array.

The wall-climbing roborts are use for hull, marine,boiler and so on.
