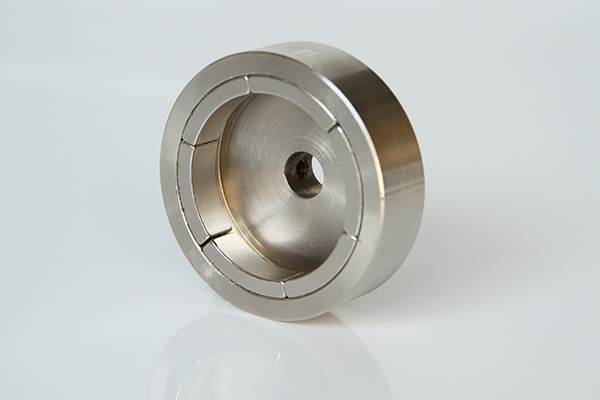

Magnetic Coupling-Inner And External Magnets Assembly

Magnetic Coupling

Magnetic Coupling-Inner And External Magnets Assembly
Contact Us
Magnetic Coupling-Inner And External Magnets Assembly
Magnetic Coupling-Inner And External Magnets Assembly
Magnetic Coupling-Inner And External Magnets Assembly
Magnetic Coupling-Inner And External Magnets Assembly
Description
Magnetic Coupling

  Magnetic coupling is a new kind of coupling,which connects motor and machine by permanent magnetic force.They work in the sealless magnetic drive pumps,which transporting volatile,flammable,explosive and toxic solutions with no leakage.

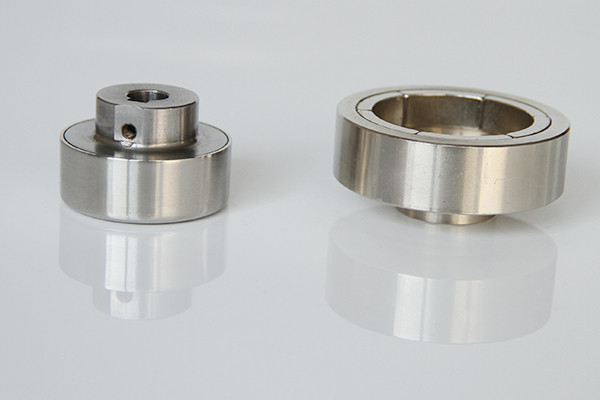

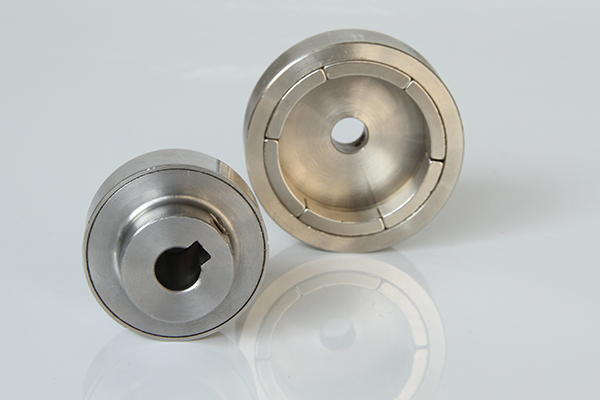

  The appearance of Magnetic coupling solved thoroughly the leak problems existed in dynamic sealing of certain mechanical devices.Magneic coupling are widely used in various industries and fields,such as chemical,papermaking,foodstuff, pharmacy,and so on.Magnetic coulpling is consist of external rotor,internal rotor and isolating cover.





Item

Description

1

Outer Rotor

2

Magnet

3

Inner Rotor

4

Spacer Sleeve



1. Materials

Magnet: Neodymium Magnet

Sleeve: Austenite stainless steel, such as SS304, SS316.

Main part: 20# steel, martensitic stainless steel

2. Advantages

Magnetic coupling for standard applications

Hermetically sealed

No contact of torque transmitting elements

No maintenance necessary

High efficient can optional

3. Recommended applications

-Chemical industry

-Oil and g as industry

-Refining technology

-Pharmaceutical industry

-Centrifugal pumps

-Top drive mixers/agitators

4. How does magnetic coupling work?
