According to the U.S. Chemical Safety and Hazard Investigation Board (CSB), between 1980 and 2020, toxic chemical releases from seal failures accounted for 28% of major process incidents, with 70% involving pump, reactor, and agitator shaft seals.
Magnetic couplings (also called magnetic drive couplings or permanent magnet couplings) transmit torque through permanent-magnetic fields across an inner-outer rotor pair without mechanical contact — no seal, no leakage. They are the enabling technology for zero-leakage process industries.

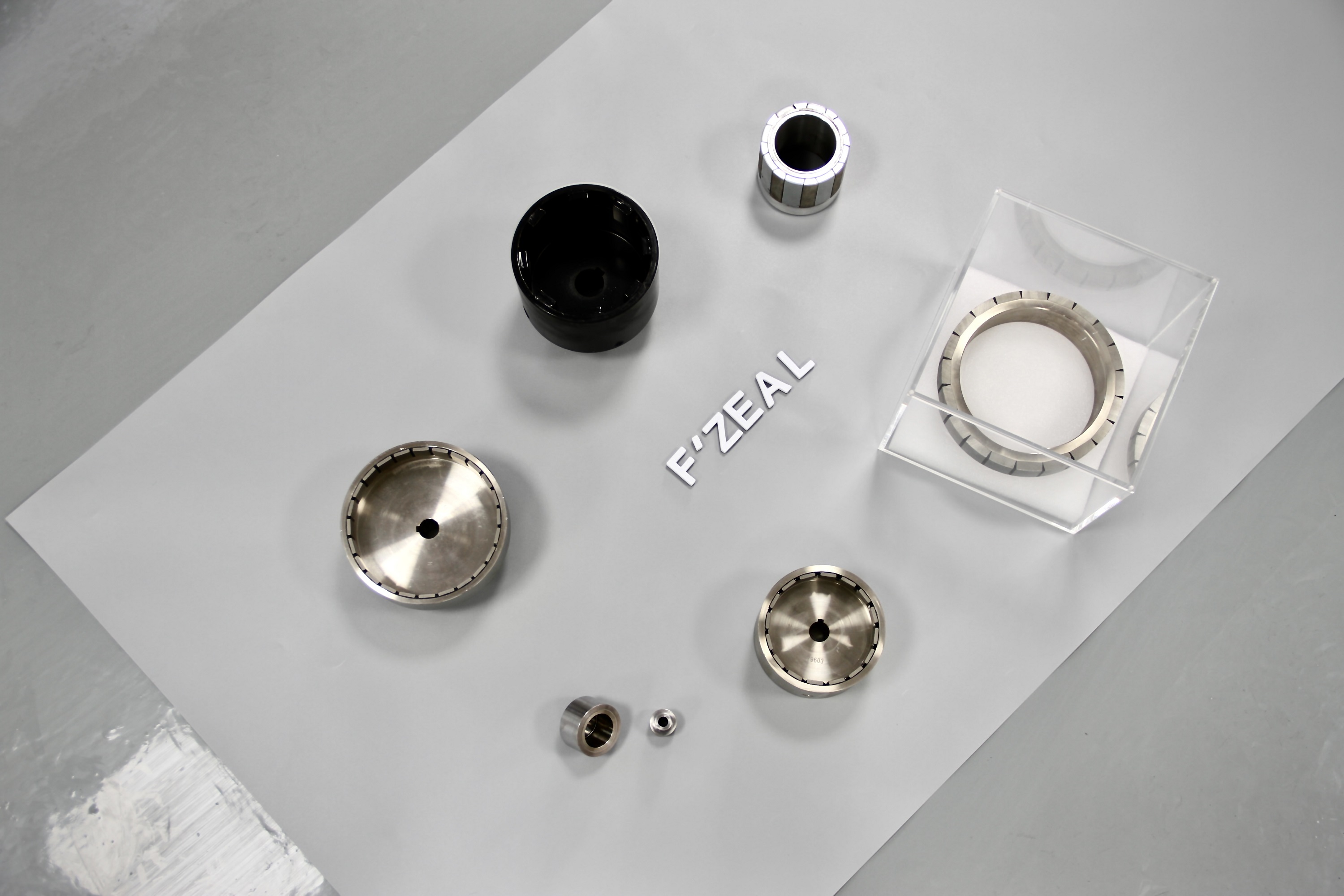

The F-ZEAL magnetic couplings shown here cover black engineering-plastic-housed magnetic couplings (standard magnetic pump applications), 316L stainless-steel-housed inner and outer rotor magnetic couplings (sanitary and chemical grades), disc magnetic couplings in the plastic display case (high-torque synchronous applications), and custom micro magnetic couplings at the bottom right (medical and semiconductor equipment). The core of every product is a sintered NdFeB magnetic circuit, with grade, housing material, and protection level selected per medium and operating condition.
A magnetic coupling has an inner rotor (driver) on the motor shaft and an outer rotor (driven) on the driven shaft. A sealed containment shroud (can) sits between them. Torque transfers through the permanent-magnetic field coupling — no contact, no leakage.
Torque transmission is the headline metric. For radial multi-pole magnetic couplings, the maximum synchronous torque can be approximated as:
T_max ≈ σ_max · A_eff · r_avg · cos(θ/2)
where σ_max is the maximum shear stress per unit effective area (NdFeB typically 50 to 150 kPa, Halbach 100 to 300 kPa), A_eff is the effective magnetic circuit area (m²), r_avg is the mean air-gap radius (m), and θ is the relative torsion angle between inner and outer rotor (radians).
A widely used engineering simplification is the air-gap torque correction:
T(g) ≈ T_0 · (g_0 / g)²
where T_0 is the rated torque at reference air gap g_0 (typically 1 to 3 mm), and g is the actual air gap. This means every doubling of the air gap reduces torque by 75%. Going from 1 mm to 2 mm loses 75%; from 2 mm to 3 mm loses another ~55%.
Synchronous operation requires the driven-side load torque to stay below the pull-out torque. Synchronous speed is:
n_sync = 60 · f / p
where f is the supply frequency (Hz) and p is the pole-pair count. When load exceeds pull-out torque, the rotors slip (asynchronous); the outer rotor lags the inner rotor at a slip angle — unsafe for personnel and equipment.
Misalignment sensitivity is a key design constraint. Three types:
Axial misalignment: every 1 mm increase loses ~10% to 20% torque. F-ZEAL standard allows ±2 mm.
Radial eccentricity: every 0.1 mm loses ~5% to 10% torque. Allowed ≤0.5 mm.
Angular misalignment: every 1° loses ~8% to 15% torque. Allowed ≤2°.
Engineering rule: total misalignment (axial + radial + angular equivalent air-gap increment) ≤1 mm preserves 80% to 90% of the rated torque.
Eddy-current loss is an underestimated heat source. The outer rotor magnetic field induces eddy currents in the metallic containment shroud. Loss is approximated by:
P_eddy ≈ k_e · B² · n² · t² · V
where B is the air-gap flux density, n is the speed (rpm), t is the shroud wall thickness (typically 0.5 to 1.5 mm), and V is the effective shroud volume. Empirical rule: every 1000 rpm produces 20 to 60 W of loss on a 1 mm 316L stainless shroud. This heat must be removed by the cooling circuit; otherwise shroud temperature can exceed 100°C.
F-ZEAL organizes magnetic couplings into four product families:
Standard magnetic-pump magnetic couplings: inner rotor N35 to N42 NdFeB with steel back-iron, outer rotor 316L stainless or Hastelloy C-276 containment shroud, outer diameter 50 to 150 mm, torque 5 to 500 N·m. Pairs with CQB, CQH, CQBG chemical magnetic pumps, IHF fluoroplastic magnetic pumps, and IMD liner-fluoroplastic magnetic pumps.
Sanitary magnetic couplings: outer rotor 316L stainless (Ra ≤0.8 µm, 3A certified), inner rotor PEEK or PPS shroud (contamination-free), torque 1 to 80 N·m. Pairs with food, beverage, dairy, and pharmaceutical process pumps.
Disc (axial) magnetic couplings: axial magnetic circuit, multi-pole stacking, high torque density (up to 300 kPa shear stress), outer diameter 80 to 300 mm, torque 20 to 3000 N·m. Used in large reactor agitators, tank-farm pumps, and compressor isolation drives.
Custom magnetic couplings: non-standard shafts, integrated flanges, ATEX explosion-proof (Ex db IIB T4 to T6), low-activation (nuclear), medical grade (ISO 13485), cryogenic LNG (-196°C), ultra-high temperature (300°C+), vacuum grade (10⁻⁹ Pa·m³/s leak rate). Lead time 20 to 40 days.
Chemical is the largest single application, accounting for over 60% of magnetic coupling volume.
Chemical magnetic pumps: typical service covers sulfuric acid (≤ 98%), hydrochloric acid (≤ 36%), nitric acid, phosphoric acid, hydrofluoric acid, acetic acid, sodium hydroxide (≤ 50%), sodium hypochlorite, organic solvents (toluene, xylene, DMF, DMSO), strong oxidizers (hydrogen peroxide, chlorine gas). F-ZEAL chemical magnetic couplings come with 316L, Hastelloy C-276, titanium Ti-2, and duplex 2507 containment shrouds — virtually any corrosive medium.
Glass-lined reactor agitators: reactor inner diameter 1 to 6 m, agitator shaft passing through the lid, conventional seals leak corrosive vapor. Magnetic couplings deliver zero leakage, agitator power 1.5 to 75 kW. F-ZEAL offers BN-01 to BN-08 standard sizes.
Polymerization reactors: polymerization (PE, polypropylene, PVC, polyester, polyamide) runs at 50 to 200°C; conventional seals wear fast under frictional heat. Magnetic couplings have no friction and support long cycle times. F-ZEAL uses N38SH to N42UH (150 to 180°C).
Evaporators and crystallizers: particle-bearing, crystalline, high-viscosity media. F-ZEAL double-shroud magnetic couplings (shroud + barrier dual layer) operate in slurries with 30% solids.
Coal chemical: coal liquefaction, hydrogenation, ammonia synthesis, methanol, DME, coal-to-olefin; media contain H₂S, CO, NH₃, phenols. F-ZEAL explosion-proof magnetic couplings carry ATEX Ex db IIB T4.
The food and pharmaceutical sectors need sanitary, contamination-free, easy-to-clean magnetic couplings.
Dairy: milk, cream, yogurt, cheese process lines. Sanitary magnetic couplings have Ra ≤0.8 µm surfaces, 3A certification, EHEDG documentation; F-ZEAL offers fully CIP (clean-in-place) compatible geometry.
Beverage: beer, juice, soft drinks, wine, tea. Media contain CO₂, sugar, acid, alcohol — conventional seals risk contamination. Sanitary magnetic couplings deliver zero-contamination transfer.
Pharmaceutical: APIs, synthetic drugs, biologics, oral solutions, injections, large-volume infusions, vaccines, blood products. Requires GMP, FDA, USP Class VI certifications. F-ZEAL offers ISO 13485 medical-system-certified magnetic coupling variants.
Brewing and condiments: soy sauce, vinegar, cooking wine, MSG, enzymes, yeast. Sanitary, easy-clean, long-life.
F-ZEAL sanitary magnetic couplings offer 316L stainless, PEEK, PPS, and PVDF housing materials, all compliant with FDA 21 CFR, EU 1935/2004, and GB 4806 food-contact regulations.
Oil and gas is a traditional stronghold, with four sub-scenarios.
Onshore oil and gas gathering: crude, associated gas, produced water, light hydrocarbon, condensate. Media contain H₂S, CO₂, Cl⁻, sand, wax. F-ZEAL supplies API 685 magnetic-pump magnetic couplings (outer diameter 80 to 250 mm, torque 50 to 1500 N·m).
Offshore oil and gas platforms: space-constrained, high explosion-proof requirements, heavy vibration. F-ZEAL explosion-proof magnetic couplings meet ATEX/IECEx Ex db IIB T4 and pass IEC 60068 seismic tests.
LNG and cryogenic liquefied gas: media at -162°C to -196°C (LNG), -78°C (LPG), -50°C (condensate). NdFeB remanence rises slightly at cryogenic temperatures (+0.5% per 100°C drop), magnetic performance is stable; containment shroud materials need cryogenic stainless or Invar 36 with special welding.
Oil-gas separation, three-phase separation: multiphase media, gas-liquid-solid coexistence; conventional seals wear fast. F-ZEAL double-shroud magnetic couplings achieve ≥30000 h life.
Vacuum and semiconductor are extreme cleanliness scenarios.
Semiconductor equipment: wafer transfer robots, etch chambers, diffusion furnaces, CVD, PVD, ion implanters. Vacuum 10⁻⁶ to 10⁻⁹ Pa, leak rate ≤10⁻⁹ Pa·m³/s. F-ZEAL vacuum-grade magnetic couplings use metallic bellows isolation, no O-rings, no lubricant grease.
Flat panel display: OLED, Micro-LED, liquid crystal panel vacuum chamber drives. Torque 0.5 to 10 N·m, speed 100 to 3000 rpm.
Vacuum pumps: rotary vane, Roots, dry pump drive isolation. Oil-free vacuum, ultra-high vacuum, clean vacuum. F-ZEAL offers full-metal-sealed versions rated to 10⁻⁹ Pa·m³/s leak rate.
Vacuum valves and feedthroughs: magnetic feedthroughs, magnetic-rotary vacuum valves. F-ZEAL standard products outer diameter 30 to 100 mm, torque 1 to 50 N·m.
Water treatment and metallurgy media are abrasive, corrosive, and harsh.
Sewage lift: 5% to 30% solids, particle size ≤5 mm. F-ZEAL wear-resistant containment shrouds (Hastelloy C-276, duplex 2507, silicon-carbide coating).
Electroplating and electrolysis: media with Cr, Ni, Cu, Zn, Au, Ag ions; strong acid and alkali. Shroud material must resist strong oxidizing acids (chromic acid). F-ZEAL offers titanium Ti-2, Hastelloy C-276, PTFE-lined containment shrouds.
Electroless nickel and plating: temperature 80 to 95°C, pH 4 to 6, contains citric acid, malic acid, sodium hypophosphite. F-ZEAL N42SH (150°C) grade suits the duty.
Mining and metallurgy, slurry transport: copper, gold, iron ore slurries with 30% to 60% solids. F-ZEAL double-shroud magnetic couplings are wear-resistant, lifetime 20000 to 50000 h.
Cooling water, recirculation water: HVAC, power plant, chemical recirculation. Media contain Cl⁻, SO₄²⁻, biological slime. F-ZEAL standard 316L stainless suffices.
Medical and life science are the high-growth application.
Hemodialysis: dialysate transfer, blood circulation, filter drive. F-ZEAL medical-grade magnetic couplings carry ISO 13485, FDA, CE certification, outer rotor PEEK and PPS, biocompatibility USP Class VI.
Blood pumps: cardiopulmonary bypass (CPB), ventricular assist (VAD), ECMO. F-ZEAL offers micro magnetic couplings (outer diameter ≤30 mm, torque 0.1 to 5 N·m).
Perfusion and cell culture: sterile, pyrogen-free, particulate-free. F-ZEAL medical-grade magnetic couplings comply with GMP.
Pharmaceutical water: purified water (PW), water for injection (WFI), ultrapure water (UPW). F-ZEAL 316L stainless + PEEK shroud meets USP, EP, JP.
Pharmaceutical fermenters and bioreactors: cell culture, vaccine production, monoclonal antibody production. F-ZEAL offers steam-in-place (SIP) and clean-in-place (CIP) compatible magnetic couplings.
Magnetic circuit design is the engineering heart. Three main magnetic circuit types — radial (4 to 24 poles), Halbach (4 or 8 segments), and axial disc (multi-pole ring stack) — each suit different scenarios.
Magnet material selection logic:
• Sintered NdFeB: default, high remanence, large energy product (280 to 420 kJ/m³)
• Samarium cobalt Sm2Co17: high temperature (≥ 200°C) or radiation-tolerant, energy product 200 to 280 kJ/m³ but 350°C+ thermal capability
• Samarium cobalt SmCo5: medium temperature (150 to 250°C), lower cost than Sm2Co17
• Bonded NdFeB: complex geometry, high volume (isotropic 60 to 100 kJ/m³)
• Ferrite: low cost, light torque, low temperature (≤ 200°C)
Containment shroud materials:
• 316L stainless: general, chemical, food, ≤ 400°C
• Hastelloy C-276: strong corrosion, wet chlorine, seawater
• Titanium Ti-2: chloride, wet oxidation
• Duplex 2507: chloride-bearing, H₂S-bearing
• PEEK, PPS, PVDF: sanitary, strong corrosion, low temperature
• Invar 36: cryogenic LNG (-196°C), low expansion
Regulations and certifications:
• API 685 (petrochemical magnetic pump)
• ASME B73.1 (chemical process pump)
• ISO 2858 / ISO 5199 (centrifugal pump)
• 3A sanitary standard (food and dairy)
• EHEDG (European hygienic engineering)
• FDA 21 CFR / EU 1935/2004 / GB 4806 (food contact)
• ATEX 2014/34/EU / IECEx (explosion-proof)
• ISO 13485 (medical device)
• ASME B&PV (pressure vessel)
F-ZEAL standard magnetic couplings carry the above mainstream certifications and provide complete documentation packages.
Main failure modes:
Demagnetization: NdFeB grades N35 to N42UH tolerate 80 to 180°C; beyond that, irreversible demagnetization occurs. High-temperature processes (polymerization, evaporation, coal liquefaction) require tight temperature management or cooling jackets. F-ZEAL high-temperature magnetic couplings use N42SH to N48UH (150 to 200°C); ultra-high temperature uses Sm2Co17 (350°C).
Containment shroud corrosion / rupture: shroud rupture is the most dangerous failure — medium ejects toward the motor side. F-ZEAL standard magnetic couplings come with double shrouds (shroud + barrier dual layer) and rupture-detection sensors.
Mechanical damage: inner and outer rotor pole collisions (often due to excessive assembly misalignment), bearing failure. F-ZEAL provides assembly torque, axial positioning tolerance, alignment fixtures, and full assembly specifications.
Eddy-current overheating: high speed (≥ 3000 rpm) plus thick shroud (≥ 1.5 mm) plus high flux density (≥ 0.5 T) equals overheating. F-ZEAL engineering guide: high-speed magnetic couplings recommend shroud thickness ≤ 1 mm with a cooling-water jacket.
Magnetic decay: sintered NdFeB decays ≤ 0.1% per year at room temperature; SmCo ≤ 0.05%. Design lifetime 10 to 15 years at 8 hours per day.
MTBF: F-ZEAL standard magnetic couplings achieve MTBF ≥ 30000 hours under rated conditions. Full-life data sheets, accelerated life test reports, and reliability prediction reports are available on request.
Sourcing workflow:
1. Submit requirements: torque, speed, shaft diameter, shroud material, medium, temperature, explosion-proof, lifetime target
2. FAIZEAL delivers DFM report, magnetic circuit simulation (ANSYS Maxwell / JMAG), sample plan, and mass-production quotation within 5 business days
3. Sample lead time 15 to 20 days, MOQ 1 piece
4. Mass-production MOQ 50 pieces, lead time 20 to 30 days
FAIZEAL shipment documents include VSM demagnetization curves, CMM dimensional reports, ANSYS/JMAG magnetic circuit simulation, shroud helium mass-spectrometer leak test reports, dynamic balance reports, PPAP first-article approvals, explosion-proof certificates (if applicable), and sanitary certifications (if applicable).
Q: How much lower is the leakage rate of a magnetic coupling vs a mechanical seal? A: Mechanical seal typical leakage 10⁻³ to 10⁻⁶ mbar·L/s; magnetic coupling (metal shroud) typical leakage 10⁻⁶ to 10⁻⁹ Pa·m³/s — 3 to 6 orders of magnitude improvement.
Q: What is the maximum torque a magnetic coupling can transmit? A: F-ZEAL standard products 0.5 to 5000 N·m. Disc magnetic couplings reach 10000 N·m (outer diameter 400 mm, 24 poles).
Q: What temperature can a magnetic coupling handle? A: NdFeB standard 80°C to 180°C (N35 to N48UH), samarium cobalt 350°C+, cryogenic version supports -196°C LNG.
Q: What is the misalignment tolerance of a magnetic coupling? A: Axial ±2 mm, radial eccentricity ≤ 0.5 mm, angular ≤ 2°. Beyond that, torque drops sharply.
Q: Can a magnetic coupling replace a magnetic pump? A: A magnetic pump is a magnetic coupling + pump integrated product. F-ZEAL supplies magnetic couplings as components (for OEM integration) and complete magnetic-pump solutions.
Q: What is the typical magnetic coupling lifetime? A: Under rated conditions, magnetic decay ≤ 0.1% per year (NdFeB); shroud mechanical life 10 to 20 years; MTBF ≥ 30000 h; magnetic circuit design life 15 years.
Q: How to select a containment shroud material? A: Strong corrosion chemicals: Hastelloy C-276 or titanium; food and pharma: 316L with 3A certification; LNG cryogenic: Invar 36; solids-bearing: duplex 2507 plus coating; strong oxidizing acids: titanium or PEEK liner.
Q: Are magnetic couplings customizable? A: F-ZEAL offers full customization: dimensions, torque, speed, shroud material, explosion-proof, sanitary, medical, vacuum, cryogenic, ultra-high temperature. Lead time 20 to 40 days, MOQ 1 piece (sample).
