Pot Magnet

Male Threaded Neodymium Pot Magnets

cheap price with high quality

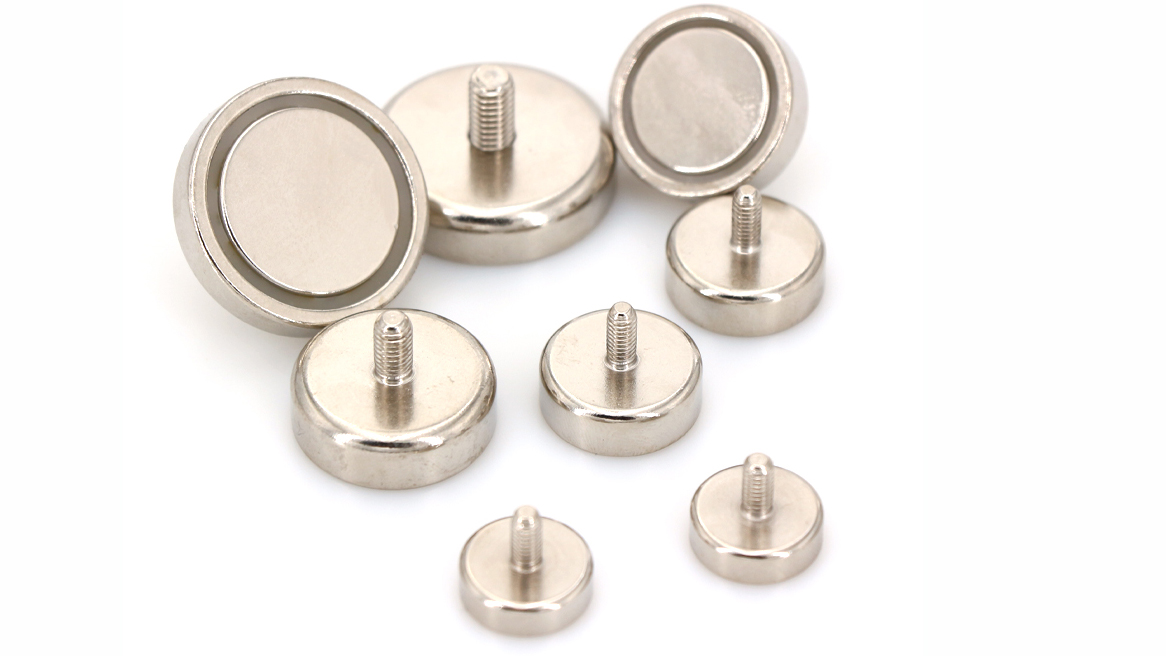

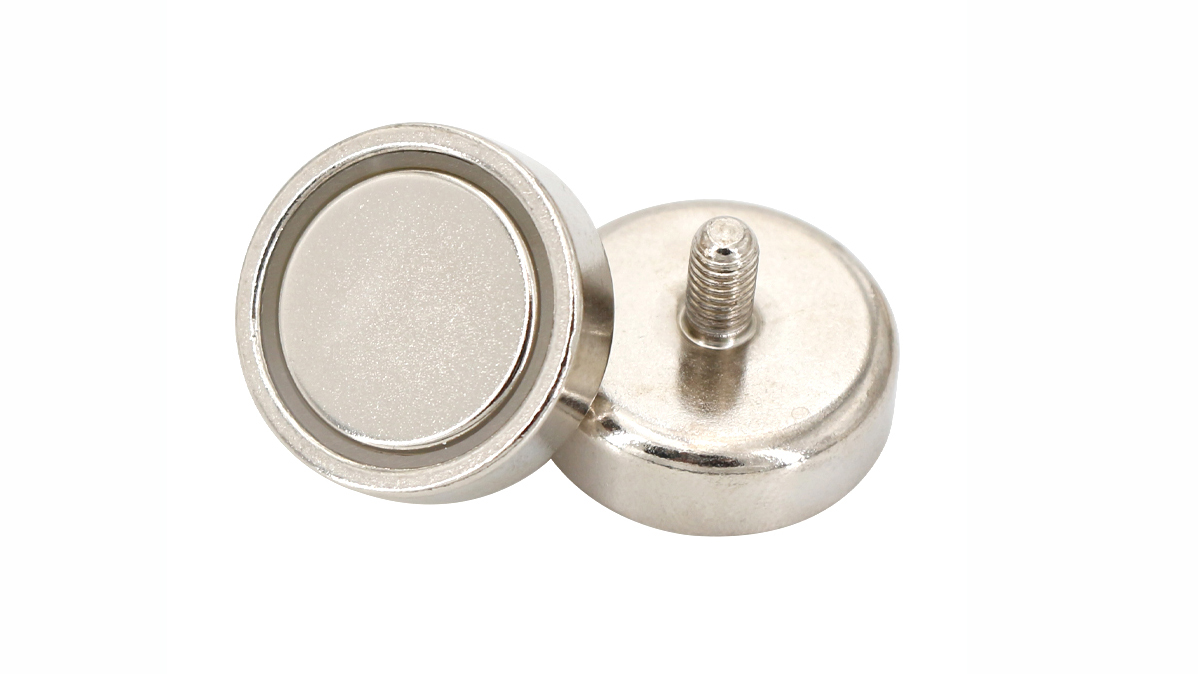

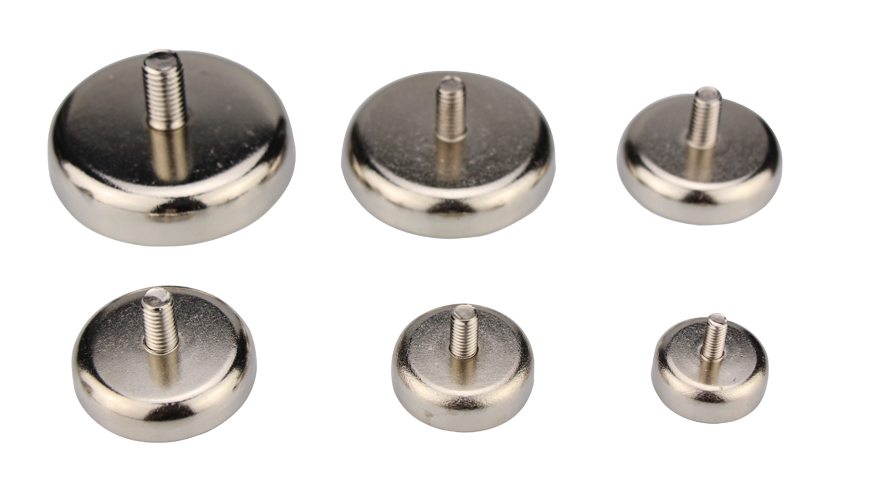

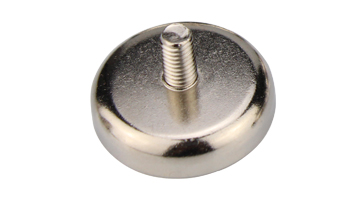

Male Threaded Neodymium Pot Magnets
Male Threaded Neodymium Pot Magnets
Male Threaded Neodymium Pot Magnets
Male Threaded Neodymium Pot Magnets
Male Threaded Neodymium Pot Magnets

Description

Reviews

Male Threaded Neodymium Pot Magnets
Model D(mm) H(mm) h(mm) M weight(g)  force(kgf)
CUP-C 10 10 14 5 M3 4 2
CUP-C 12 12 14 5 M3 5 4
CUP-C 16 16 13.2 5 M4 8 8
CUP-C 20 20 16 7 M4 17 12
CUP-C 25 25 17 8 M5 30 25
CUP-C 32 32 18 8 M6 50 34
CUP-C 36 36 18 8 M6 62 50
CUP-C 42 42 18 8.6 M6 89 72
CUP-C 48 48 24 11 M8 152 81
CUP-C 55 55 28 12 M8 220 95
CUP-C 60 60 28 15 M8 325 160
CUP-C 70 70 34 17 M10 510 200
CUP-C 75 75 35 18 M10 620 250
CUP-C 80 80 35 18 M10 700 300
CUP-C 90 90 35 18 M10 885 360

Powerful Holding

The pot magnets of FAIZEAL has
powerfull holding for using. It made
if strong neodymium magnets in pot
magnets. Unbeliveable holding for the
size.

Very Durable

Neodymium magnet it has the characteristic of breakability. But this design of pot magnets will not break
by use the steel cups which greatly
increase the longevity of the magnets.

Cost Performance

This design of pot magnets has higher cost performance than normal magnets. It also has power holding with lower price. Accept OEM, if you have any customized design to do. Just contact with us.

Pot Magnets Cross Section

Pot magnets must come into contact with the Steel plate surface to show its full holding power potential. If there is any obstruction between the magnet and the steel target, like even a thin wood veneer, the holding power can be greatly reduced, also the connection should be even across the entire diameter of the magnets base, avoiding high spots like weld seams, screw heads or rivets where possible.
