Halbach Array Curved Linear Motor Magnetic Assembly — Segmented Sector Modules for Arc and Full-Ring Magnetic Tracks
Single-side flux concentration, modular sector joining, ultra-low cogging for high-precision linear and rotary motion

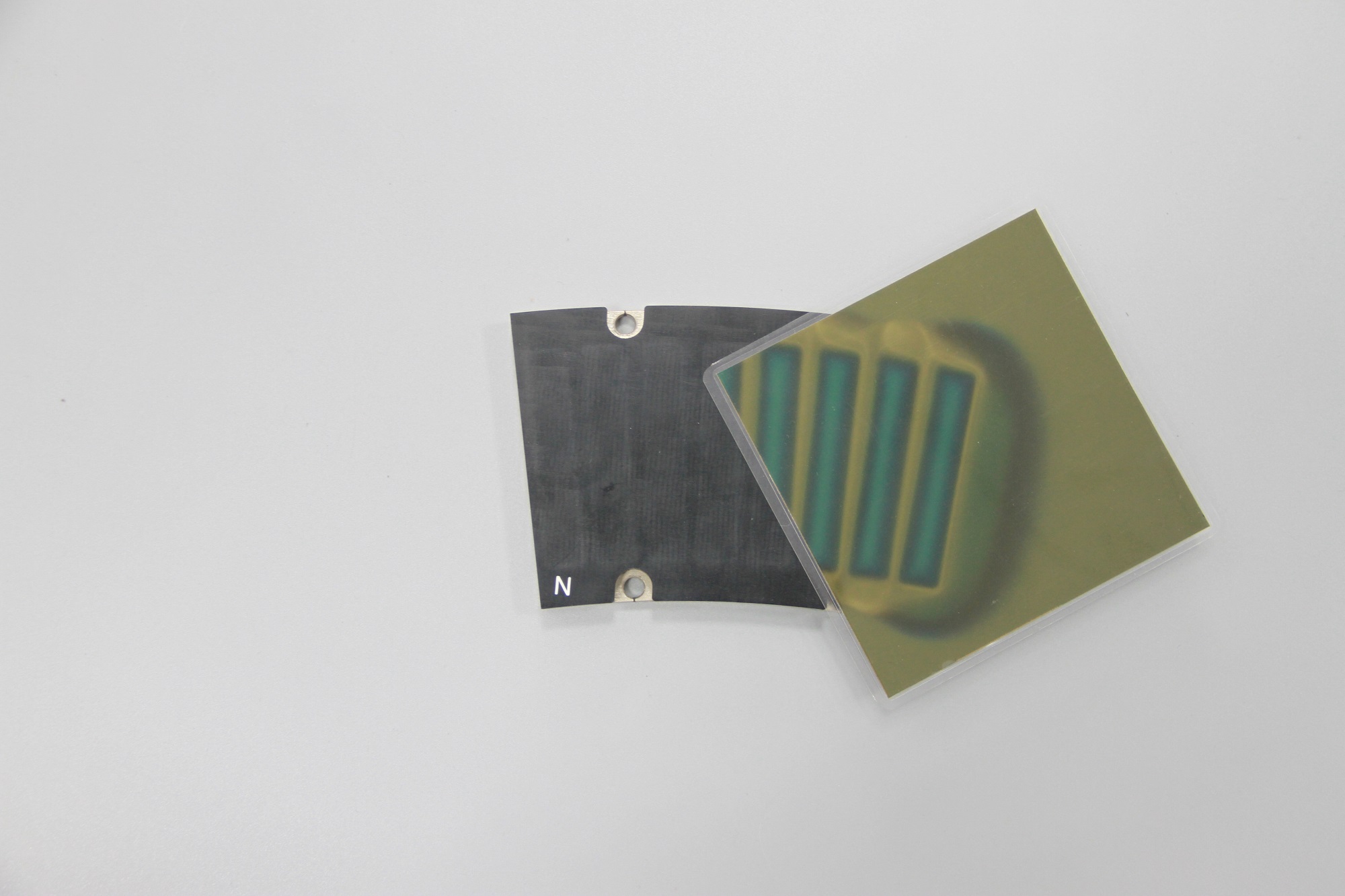

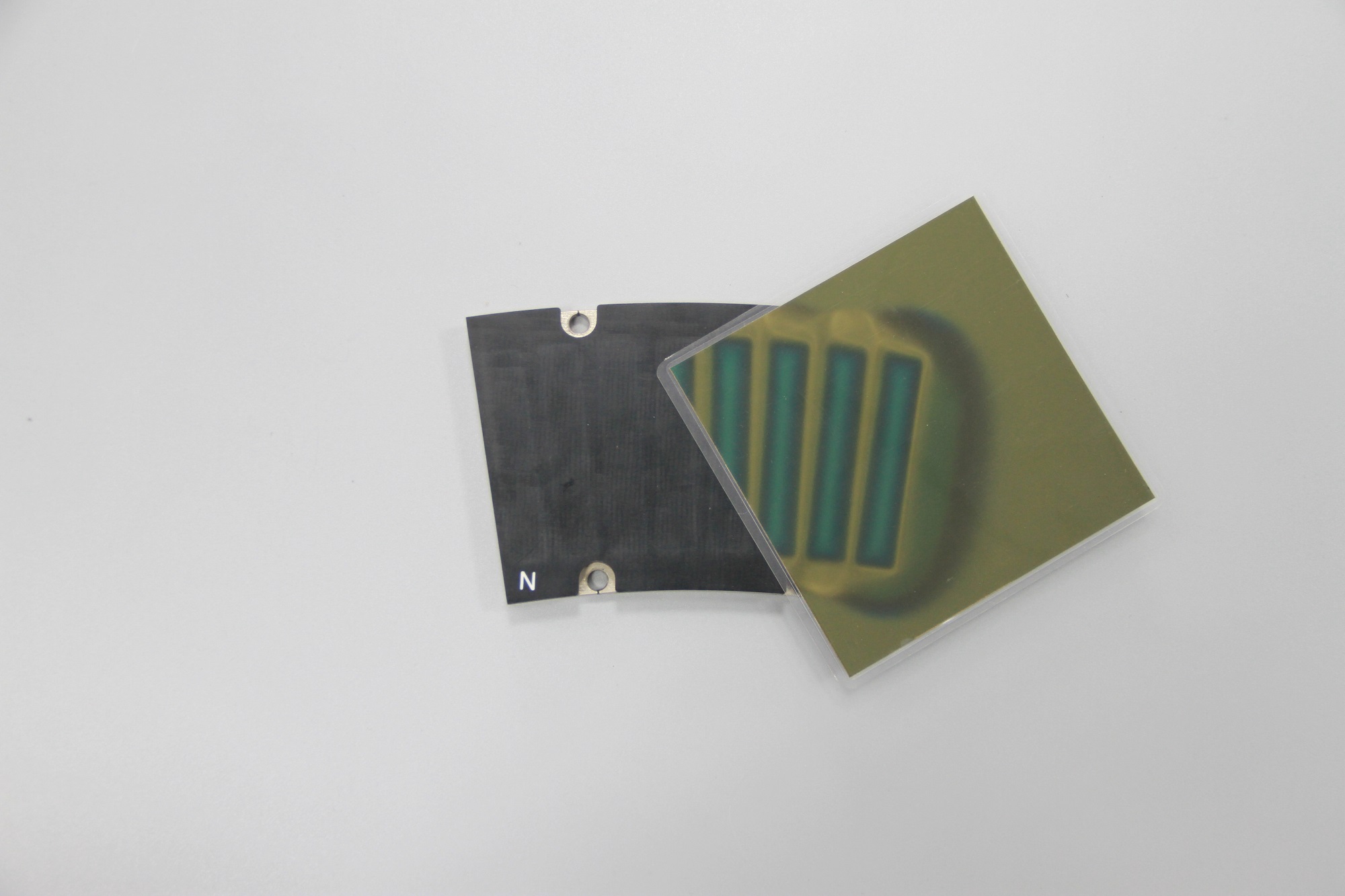

The FAIZEAL Halbach array curved linear motor magnetic assembly is a precision-engineered permanent-magnet track component designed for arc and full-ring linear motors, curved-axis servo systems, and precision rotary indexing tables. Each individual unit is built as a sector (segmented arc segment) so that multiple sectors can be precision-joined into a continuous curved magnetic track, a partial arc of any angle, or a complete 360-degree annular magnetic rail. The Halbach array magnetization pattern concentrates the magnetic flux on the working face of the track, delivering higher thrust density, lower cogging force, and smoother force output than conventional radial-magnet linear motor tracks of the same volume.
Typical applications include semiconductor lithography stages, wafer-handling robots, precision rotary indexing tables, optical inspection and metrology equipment, curved-axis CNC machining centers, and arc-segment industrial automation. Every assembly is custom-built to the customer arc radius, axial length, pole count, and thrust requirement. FAIZEAL supplies the assembly as ready-to-mount magnetic track modules with mounting interfaces, alignment features, and matched pole-position verification, so the system integrator can focus on mechanics, controls, and integration rather than on magnet tolerances.
Why Halbach array sector modules for curved linear motors
A conventional radial-magnet linear motor track uses alternating north-south magnets around a steel back-iron. The magnetic field is split between the working face and the back of the track, half the flux is wasted, and the steel back-iron adds mass and limits the thrust-to-weight ratio. The Halbach array solves this by rotating the magnetization direction segment by segment around the circumference of the sector, so that the vector sum of the magnet segments concentrates flux on the working face and cancels flux on the back. In a curved linear motor, this means 20–40% higher working-face flux density, near-elimination of the back-iron, and a corresponding reduction in track mass.
Sector construction is the second key design choice. A continuous curved or annular magnetic track is difficult to manufacture as a single piece because sintering NdFeB has limited machinability and large arc segments are prone to chipping and distortion. Building the track from precision-ground sector modules — each carrying its own Halbach segment pattern — and joining them with controlled pole-to-pole alignment gives the system integrator a higher-quality, lower-risk build than trying to make a monolithic arc. The joint between sectors is machined to within +/- 0.02 mm of the sector geometry, so the running cogging ripple across the joint is held to the same level as within a single sector.
Key technical advantages
· Halbach array, single-side flux concentration. The segmented Halbach magnetization pattern concentrates flux on the working face, eliminating the need for a heavy steel back-iron and increasing the thrust density of the motor by 20–40% versus a conventional radial-magnet track of the same volume.
· Modular sector joining design. Each track is built from precision-ground sector modules, allowing the assembly to be scaled from a small arc (30 deg, 45 deg, 60 deg) to a partial curve of any angle, all the way to a full 360 deg annular ring. Sectors are joined with pole-to-pole alignment verified on a flux-mapping bench.
· High thrust density, compact motor envelope. The combination of Halbach flux concentration and tight air-gap control delivers high thrust per unit volume, allowing machine builders to shrink the motor envelope or to increase the continuous thrust rating within a given envelope.
· Ultra-low cogging force, smooth force output. Precision-ground sector edges, matched pole-arc coefficient, and Halbach array geometry together reduce the cogging force (force ripple at the magnetic cycle) to a fraction of conventional designs. The result is smoother low-speed motion and higher positioning accuracy in closed-loop servo systems.
· High positioning accuracy. Low cogging, low force ripple, and tight sector-to-sector alignment mean the linear motor can be commanded to sub-micron increments without the force disturbance that would otherwise dominate the closed-loop error budget. The sectors are suited to optical, metrology, and lithography-class positioning stages.
· Optimized magnetic circuit. Each Halbach sector uses a tuned magnetization pattern (typically 4–8 segments per pole pitch) with a specific pole-arc coefficient. The pattern is selected by FAIZEAL engineering to meet the customer thrust, force-ripple, and leakage targets without overdesigning the magnet volume.
· Precision-ground sector edges. Sectors are cut on a multi-axis surface grinder to within +/- 0.02 mm of the nominal arc profile. This means the air-gap between the forcer and the track stays consistent across the joint, and the magnetic field does not show a step at the join.
· Custom arc radius, axial length, and pole count. Every track is engineered to the customer geometry. Typical arc radii from 50 mm to 2000 mm, axial lengths from 20 mm to 500 mm, pole counts from 4 to 64 poles, and thrust ratings from 5 N to 5000 N continuous are within standard production scope.
· Ready-to-mount modules with alignment features. Each sector is supplied with mounting holes, dowel-pin alignment features, and a matched pole-position reference, so the integrator can mount the track on a machine base without re-aligning magnet positions in the field.
· Optional back-iron and housing integration. For applications that want a conventional return path (e.g., to limit external stray field), a thin laminated back-iron and an aluminum or stainless housing can be supplied as part of the sector module.
Applications
· Semiconductor lithography and wafer handling. Precision linear and rotary stages where the magnetic track must deliver sub-micron positioning accuracy with near-zero force ripple. The Halbach array sector track is the standard building block for ASML-class and AMAT-class stage architectures.
· Precision rotary indexing tables. Annular linear motor tracks used as direct-drive rotary axes, replacing gear-driven and torque-motor solutions. The full-ring Halbach track allows unlimited rotation with consistent cogging performance around the entire 360-degree circumference.
· Optical inspection and metrology. Curved or annular motion axes inside optical benches, electron microscopes, and coordinate measuring machines. The low force ripple and the absence of mechanical transmission make Halbach sector tracks a natural fit for these precision instruments.
· Curved-axis CNC and multi-axis machining. Five-axis machining centers and curved-axis grinding machines where the cutting tool follows a non-linear path. A curved linear motor track, rather than a rotary axis plus a linear module, simplifies the mechanics and improves the surface finish by reducing the number of joints in the drive chain.
· Arc-segment industrial automation. Curved conveyor systems, rotary transfer tables, and arc-shaped assembly lines in factory automation. The sector-joinable track adapts to whatever arc the line designer has specified, and the modular construction means a single damaged sector can be replaced without scrapping the entire track.
· Robotic joint and humanoid robot axes. Annular linear motor tracks used as direct-drive rotary joints in humanoid robots, quadruped robot hips, and cobot wrists. High torque density and zero backlash are the headline benefits.
· Medical imaging and surgical robotics. MRI-compatible arc and ring tracks where the Halbach design minimizes external stray field, and the low cogging ripple is essential for smooth patient-side motion in image-guided intervention.
· Photovoltaic and battery manufacturing. Precision motion axes in solar cell stringers, cell sorters, and battery winding equipment, where high throughput and long-term positioning stability are required.
Customization and specifications
Every Halbach sector module is custom-engineered. The list below covers the standard production envelope. Values outside this range are evaluated on request.
Parameter |
Standard Production Range |
Product form |
Sector (segmented arc) module; joinable to arc, partial ring, or full 360 deg ring |
Magnet material |
Sintered NdFeB (N35-N52; SH/UH/EH/AH for elevated temperature); SmCo optional |
Magnetization pattern |
Halbach array, 4-8 segments per pole pitch; pole-arc coefficient 0.65-0.85 |
Pole count |
4 to 64 poles (whole track); sector pole count set to match whole-track pitch |
Working-face flux density |
0.6 T - 1.2 T at the air-gap surface (configuration dependent) |
Thrust force |
5 N to 5000 N continuous (configuration dependent) |
Thrust density |
Up to 30-50 N per cm^2 of active track area (Halbach + tight air-gap) |
Cogging force reduction vs radial-magnet track |
50-80% |
Arc radius (R) |
50 mm - 2000 mm (typical); 30 mm - 3000 mm on request |
Axial length (L) |
20 mm - 500 mm per sector; longer tracks use multiple sectors |
Sector count |
1 to 36 sectors; pole-aligned to within +/- 0.5 deg at the joint |
Sector joint tolerance |
+/- 0.02 mm arc profile, +/- 0.01 mm axial position |
Air-gap (typical) |
0.3 mm - 1.0 mm; tighter on request |
Surface roughness (working face) |
Ra 0.4 um - Ra 0.8 um (ground) |
Dimensional tolerance |
+/- 0.02 mm sector geometry; +/- 0.05 mm mounting features |
Operating temperature |
-40 deg C to +150 deg C standard; +220 deg C on request (SmCo) |
External coating |
Ni-Cu-Ni 20-35 um; black epoxy; Zn; Everlube; uncoated for OEM integration |
Optional back-iron |
Laminated silicon steel, 0.2-0.5 mm lamination; optional |
Optional housing |
6061 aluminum (anodized) or 304/316L stainless; integrated alignment features |
Mounting features |
Through-holes, threaded inserts, dowel-pin alignment features per customer drawing |
Inspection scope |
Dimensional + flux-map + cogging test on a sample basis; full 100% flux map on request |
Documentation |
Dimensional report, material certificate, FEA-based thrust and force-ripple estimate |
Lead time (prototype) |
2-4 weeks (single sector) / 4-6 weeks (full ring) |
Lead time (production) |
4-8 weeks |
Engineering and quality control
Each Halbach sector module is ground on a multi-axis surface grinder to within +/- 0.02 mm of the nominal arc profile, magnetized with a segment-pattern tooling that enforces the Halbach vector sequence, and verified on a flux-mapping bench for working-face flux density and pole-position accuracy. Sectors are matched in pairs or sets so that the pole-to-pole pitch stays consistent across the joint, and a final cogging test on a representative assembled track confirms that the force ripple meets the customer specification. Production lots ship with dimensional reports, material certificates, and an FEA-based thrust and force-ripple estimate; full 100% flux-mapping of every sector is available on request for the most demanding lithography-class applications.
Call to action
If you are designing or specifying a curved or annular linear motor track for a semiconductor stage, precision rotary indexer, arc-axis machine, or any high-precision motion platform, send your required arc radius, axial length, pole count, thrust target, air-gap envelope, and CAD or STEP file. FAIZEAL will return a manufacturability review, a recommended Halbach pattern and pole-arc coefficient, an FEA-based thrust and force-ripple estimate, and a quotation. Engineering consultation and prototype sectors are available for qualified projects. Contact FAIZEAL for custom magnetic assemblies, modular Halbach sector modules, and OEM engineering support.
