EAS Magnetic Security Tag Detacher — Halbach Array Laminated Magnet, FZZ-215 and FZZ-216 Series for Retail and Apparel Stores

12000+ Gauss concentrated magnetic field engineered for fast, damage-free EAS hard-tag release

The FAIZEAL EAS magnetic security tag detacher is a professional-grade tool for fast, damage-free removal of magnetic anti-theft hard tags from apparel, footwear, hats, and retail merchandise. The FZZ-215 and FZZ-216 series use a Halbach array built from laminated NdFeB N50 magnetic steel — a configuration that concentrates the magnetic field on a single working face, delivering 12000+ Gauss peak surface field and faster tag release than conventional solid-magnet detachers of the same size. The result is a portable, ergonomic detacher that line staff can use hundreds of times per shift without fatigue, without damaging the garment, and without slowing down the checkout queue.

Available in two ready-to-use formats — the FZZ-215 compact cylinder for standard checkout counters, and the FZZ-216 truncated-cone with a wider 74 mm working face for high-volume retail environments. Both units are fully assembled, require no installation, and are built with a 6061 aluminum housing (sandblasted and oxidized) plus a SUS304 mirror-polished steel plate. The Halbach-energized laminated core cuts release time to under one second for standard tags, stays cool under continuous use, and holds its field strength across the full service life of the tool.

Why a Halbach array laminated magnet makes a better detacher

Conventional EAS detachers use a single solid NdFeB disc that pushes magnetic flux out of both faces. Half the field is wasted on the back of the magnet, and the working face has to be made larger and heavier to compensate. The Halbach array solves this by rotating the magnetization direction segment by segment around the magnet circumference. The vector sum of the segments concentrates the field on one side and cancels it on the other, so the working face delivers a much higher peak field at the same magnet volume. In practical terms, the detacher head can be made more compact, while still releasing standard hard tags in under one second.

The lamination matters in a different way. A solid NdFeB magnet is an electrical conductor, and pulsed field operation — common in EAS systems with RF or acousto-magnetic detection — induces eddy currents in the magnet body that heat it up and slowly degrade magnetic performance. Laminated magnetic steel breaks the eddy-current loop into many thin slices separated by dielectric insulation, suppressing the loss and keeping the core cool and stable through years of daily use. Field strength at the working face is maintained, and the detacher does not need periodic re-magnetization.

Key features and benefits

· Halbach array concentrated magnetic field, 12000+ Gauss peak surface. The segmented Halbach geometry concentrates flux on the working face, and the laminated NdFeB N50 core delivers a verified 12000+ Gauss surface field. Hard tags release faster, with less wrist effort from the operator.

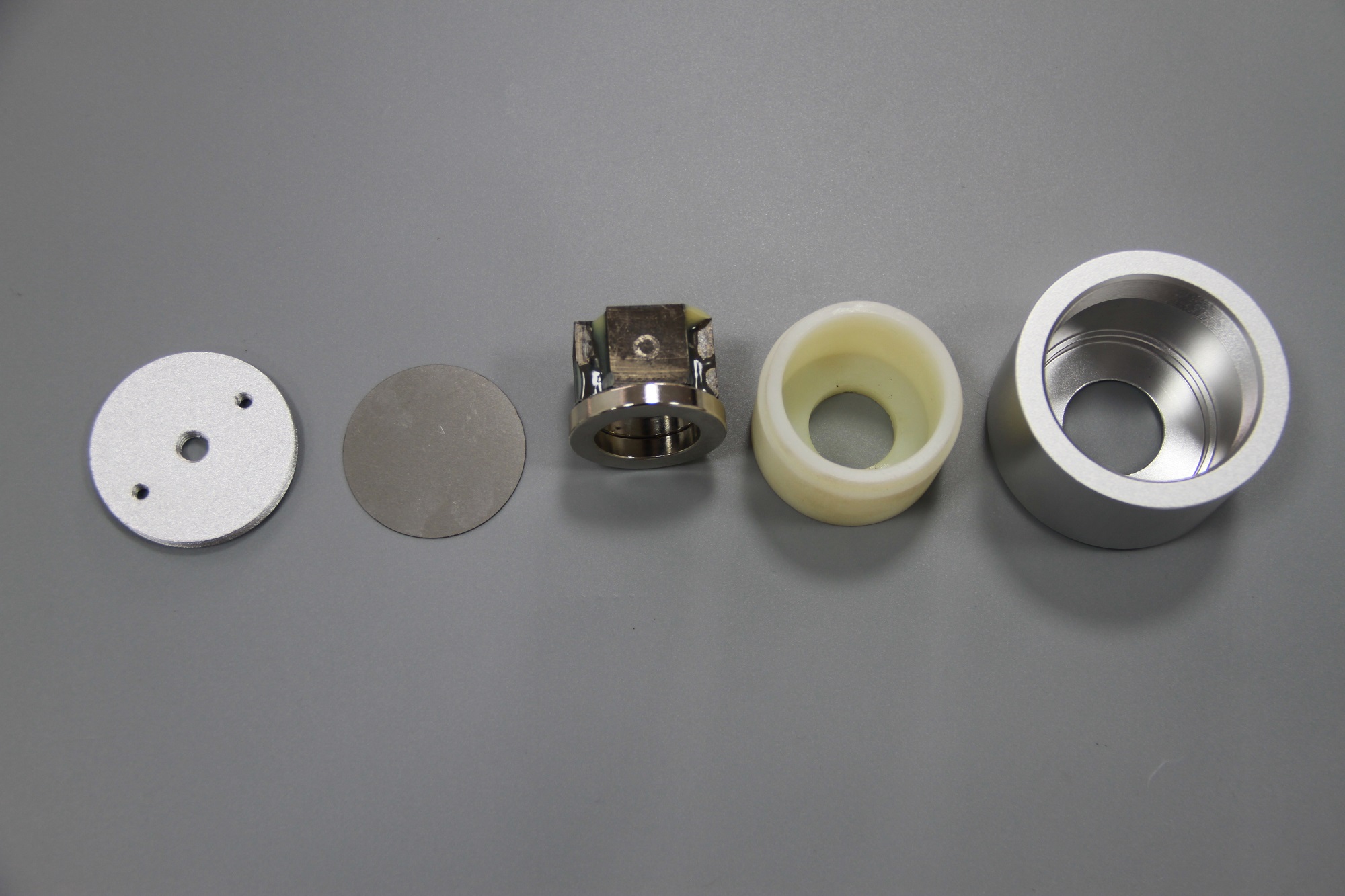

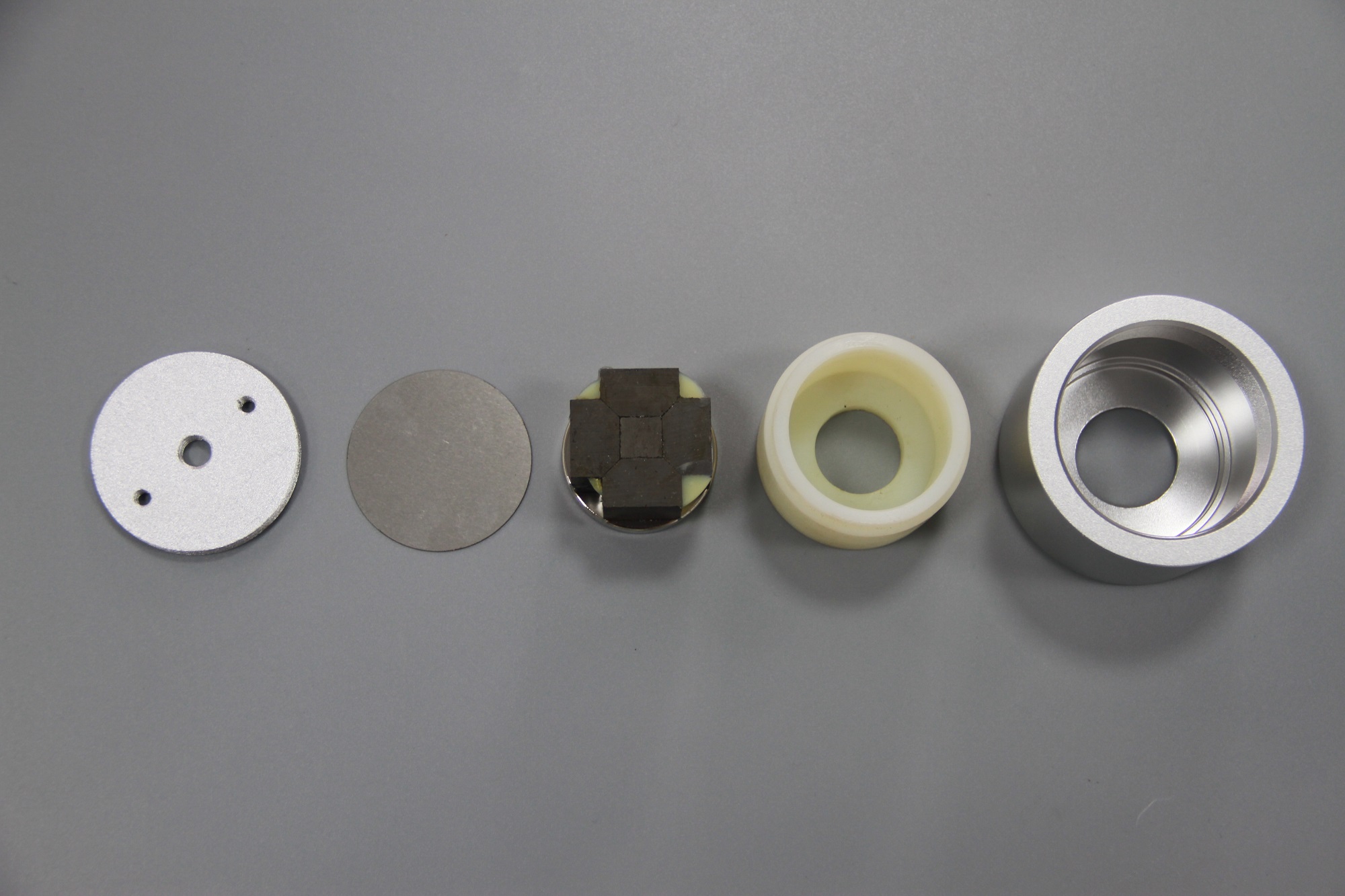

· Laminated NdFeB N50 core. The internal core is built from ultra-thin insulated lamination layers rather than a single solid magnet, suppressing eddy current loss under pulsed EAS fields. The magnet stays cool, holds its field strength longer, and does not need periodic re-magnetization.

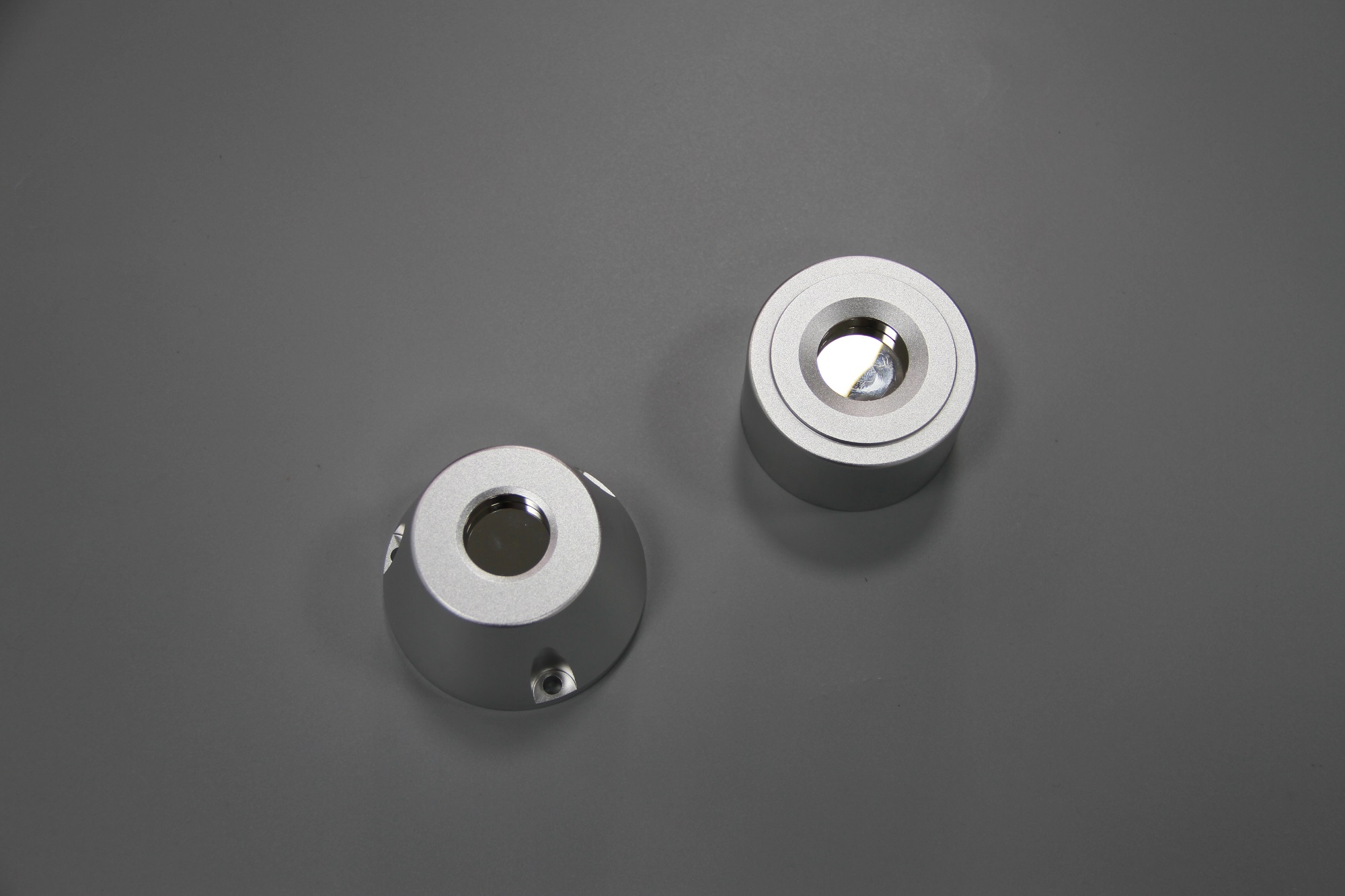

· Two ready-to-use form factors. FZZ-215 compact cylinder (64 mm D x 38.5 mm H) for standard checkout counters; FZZ-216 truncated cone (74 mm D x 50 mm D x 45 mm H) with a wider working face for high-volume retail. Both ship fully assembled with no installation required.

· 12000+ Gauss at center, 12000+ Gauss at surface. The Halbach laminated core delivers a strong, focused field measured at both the center and the surface of the working face, cutting through thick fabrics, multi-layer tags, and packaging with one motion.

· Ultra-fast tag release. Standard 5 kHz and 8.2 MHz magnetic hard tags release in under one second, with a clean separation that does not bend the pin, tear the fabric, or leave magnet residue on the garment.

· Damage-free removal. The concentrated field releases the tag internal locking mechanism without pulling on the stitching, so the garment comes off the rack intact. Fewer damaged goods at point of sale means fewer write-offs and fewer customer complaints.

· Premium 6061 aluminum housing. Sandblasted and oxidized surface treatment is corrosion-resistant and easy to wipe clean. The SUS304 mirror-polished steel plate at the working face is durable and gives the tool a clean, professional look on the checkout counter.

· Ergonomic and portable. Compact body, balanced weight distribution, and a contoured housing fit comfortably in the operator hand during long shifts. No power cord, no installation — the detacher works as soon as it is unwrapped.

· Long service life, low total cost of ownership. Halbach lamination reduces thermal stress on the magnet and prevents the gradual field loss that plagues solid-magnet detachers. In field benchmarks the detacher maintains usable release force well past 100,000 cycles — typically the full lifetime of the tool.

· Universal compatibility. Works with the dominant magnetic hard-tag form factors used in global retail: round and oval magnetic pin tags, lanyard tags, golf-tag shapes, and bottle-neck security tags. Plug-and-play with existing EAS systems from Sensormatic, Checkpoint, Nedap, and mainstream Chinese EAS brands.

Applications

· Apparel and fashion retail. Quick release of clothing tags at the checkout counter. The 12000+ Gauss concentrated field pulls the magnetic pin cleanly even through denim, leather, and padded winter garments.

· Footwear and hat stores. Magnetic hard tags on shoes and caps release in one motion; the operator does not need to bend the pin or twist the tag.

· Supermarkets and grocery. Magnetic bottle-neck tags on wine, spirits, and premium grocery SKUs release cleanly without scratching the bottle finish or leaving magnet marks.

· Department stores and big-box retail. High-volume checkout environments where release speed and operator fatigue are critical; the FZZ-216 truncated-cone form factor with the wider 74 mm working face is built for these conditions.

· EAS system resellers and installers. The detacher is sold alongside EAS gate systems and hard tags as part of a complete retail loss-prevention package. Branded retail packaging and OEM/ODM options are available.

· Warehouse and distribution centers. Used at receiving and quality-control stations to remove protective EAS tags before storage, and at returns processing to remove tags from incoming stock.

Series overview and key specifications

Common features: Ready-to-Use, No Installation, Durable Construction / 共同特点：即用型、免安装、结构耐用

Why specify FAIZEAL for EAS detacher production

FAIZEAL is a manufacturer of laminated NdFeB magnetic assemblies with 15 years of production experience in Halbach-array and laminated-core magnetic components. Every FZZ-215 and FZZ-216 detacher is built to the same engineering standard as our industrial magnetic assemblies for robotics, EV traction, and high-speed motors: dimensional control to +/- 0.05 mm, magnetic performance verified on a flux-mapping bench before shipment, and 100% release-cycle testing on a sample basis from each production lot. For retailers, the practical benefit is a detacher that stays strong across its full service life and does not need to be replaced every six months the way commodity solid-magnet detachers do.

Call to action

Order now to equip your checkout counters, returns desks, and EAS installation crews with the strongest detacher in the FAIZEAL lineup. Choose the FZZ-215 compact cylinder for standard counters and the FZZ-216 truncated cone for high-volume checkout environments. Volume pricing is available for EAS system resellers and retail chains. For OEM/ODM orders, custom housing color, private-label packaging, and Halbach performance tuning to your specific tag mix are available on request. Contact FAIZEAL for samples, quotations, and engineering support.
