Permanent NdFeB Magnetic Adhesion Wheel for Industrial Climbing Robots | Halbach Array | Rubber Sealed IP67 | OEM/ODM Custom Manufacturer

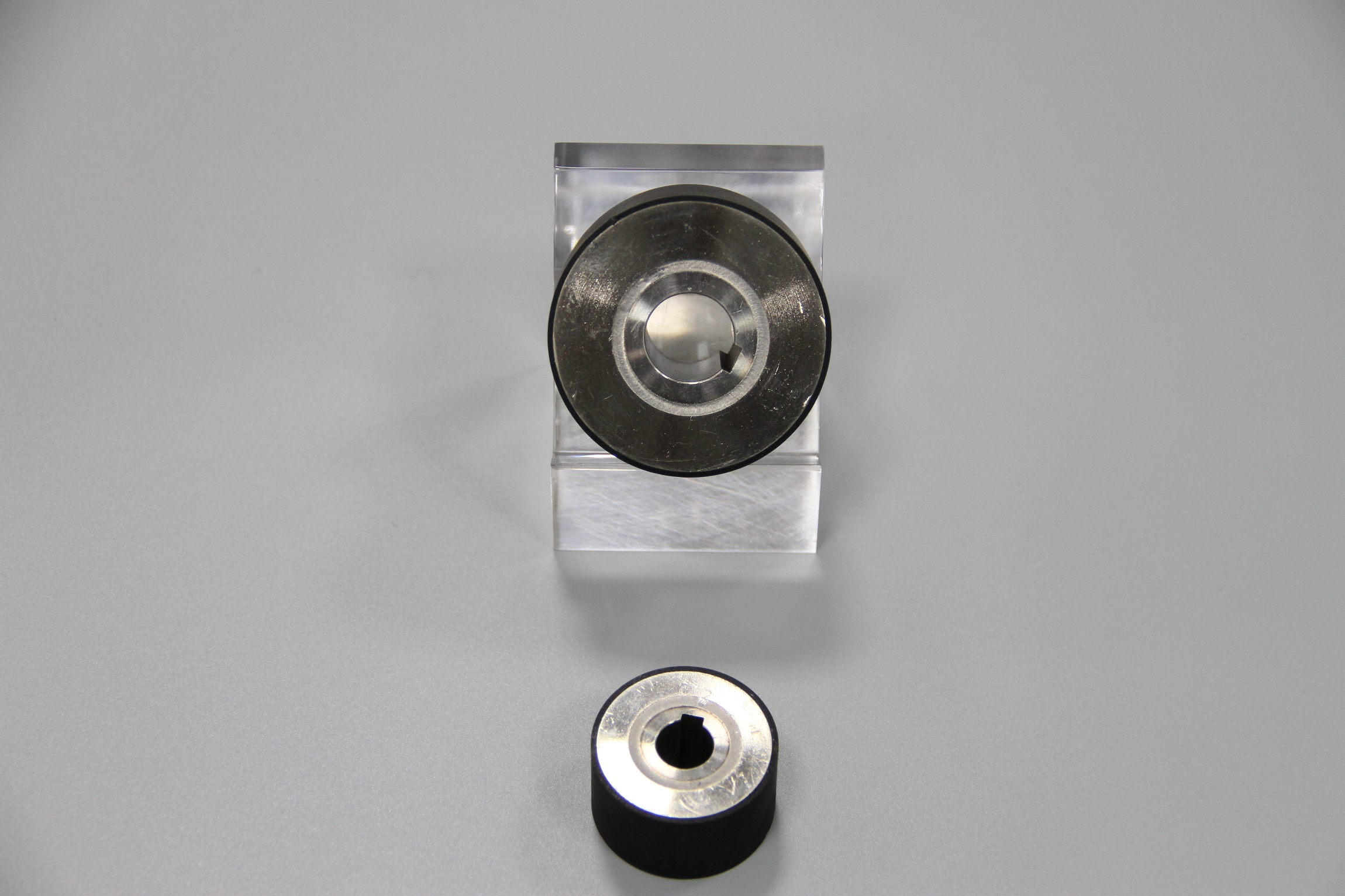

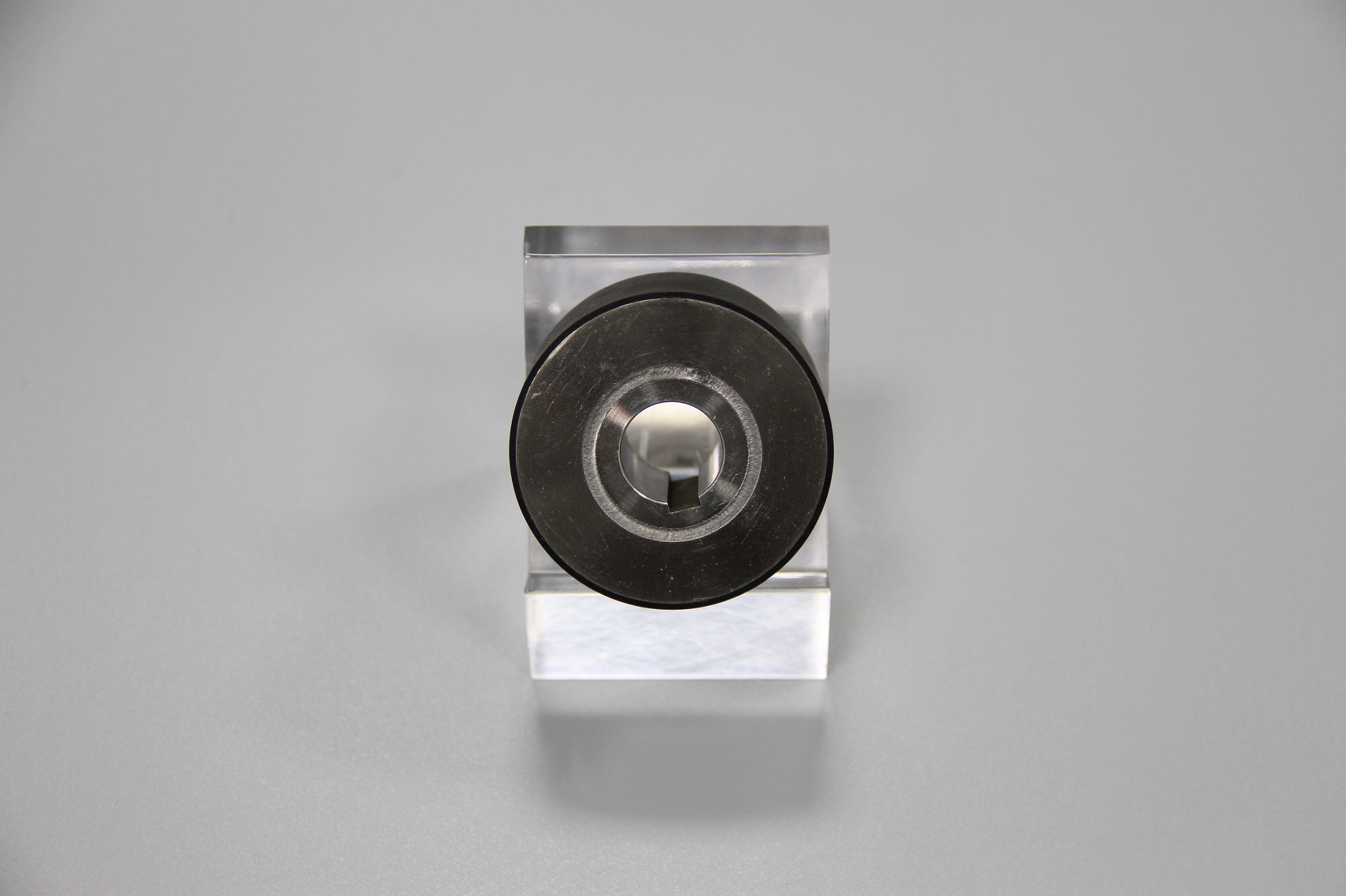

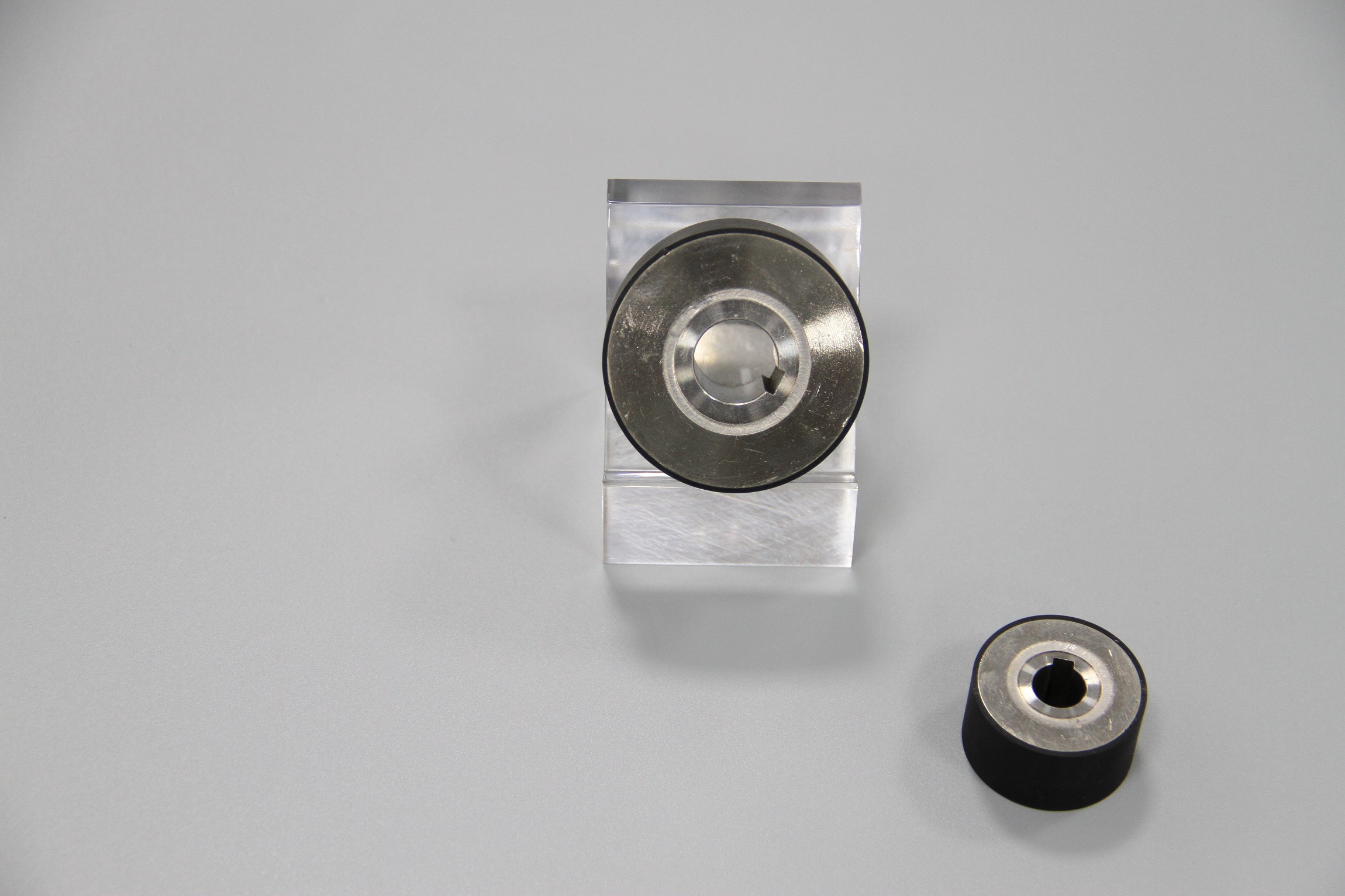

The FAIZEAL arc-segment magnetic wheel is a precision-engineered permanent magnetic adhesion unit designed specifically for wall climbing robots, magnetic crawler robots, and overhead ceiling inspection robots. Each magnetic wheel integrates a sintered NdFeB arc segment magnet array, an optimized Halbach-array magnetic circuit, a low-carbon steel back-iron (DT4 / 10# steel yoke), a vulcanized rubber tread ring, and a precision-machined aluminum or stainless-steel hub with integrated keyway, flange, and bearing seat. The arc-segment construction allows multiple magnetic wheels to be assembled into a large-diameter ring magnetic wheel group that conforms to the curvature of wind turbine nacelles, chemical reactor shells, large storage tank walls, and other large-radius ferromagnetic surfaces. With outer diameters ranging from 30 mm to 500 mm+, single-wheel holding force from 30 N to 5000 N, and operating temperatures from -60°C to +350°C, the FAIZEAL magnetic wheel is built for the most demanding industrial wall climbing robot applications. The wall climbing robot magnetic wheel is the core enabling component that makes a four-wheel magnetic crawler robot climb vertical steel walls, traverse overhead steel ceilings, and inspect the curved steel surfaces of cargo containers and pressure vessels without slipping or falling.
For wall climbing robots operating on ferromagnetic metal surfaces — steel, iron, low-carbon steel plates, ship hulls, storage tanks, wind tower shells, and bridge steel structures — the permanent magnetic wheel offers three decisive advantages over vacuum suction and thrust-fan adhesion. First, the NdFeB permanent magnetic circuit delivers zero energy consumption: the magnetic wheel adheres the instant it touches the steel surface, with no vacuum pump running, no battery drain, and no cable tether for power. Second, the magnetic wheel is completely unaffected by wind, rain, salt spray, and outdoor weather, whereas vacuum suction fails the moment wind speed exceeds a few meters per second and thrust-fan adhesion collapses under gusts. Third, the magnetic wheel produces zero noise, making it the preferred choice for indoor inspection of oil tanks, nuclear power plant containments, and chemical reactors where acoustic signature is a safety concern. FAIZEAL's magnetic wheel with rubber tread further lifts the friction coefficient from 0.4–0.6 (steel-on-steel) to 0.7–0.9 (rubber-on-steel), providing 30% to 50% more anti-slip shear force at the same holding force, which is exactly what a wall climbing robot needs to maintain a 5× to 10× safety factor against slip on a vertical steel wall.
The magnetic circuit is the engineering heart of the FAIZEAL magnetic wheel. Standard circular magnetic wheels use a radial magnetization circuit (N pole outward, S pole inward) with a DT4 electrical pure iron back-iron (thickness 3 to 8 mm) that channels flux through the air gap to the ferromagnetic work surface. FAIZEAL's Halbach magnetic wheel rotates the magnetization vector along the circumference in 4-segment or 6-segment discrete magnetization steps, concentrating the air-gap flux on the working side of the wheel and canceling flux on the back side. The result is 30% to 60% higher air-gap flux density for the same magnet volume, equivalent to a 1.3× to 1.6× holding force multiplier. The trade-off is more complex manufacturing and slightly higher unit cost; the Halbach magnetic wheel is therefore reserved for extreme-load scenarios such as wind turbine blade inspection robots, offshore drilling platform climbing robots, and large-diameter cargo container ceiling inspection robots. Both the standard radial magnetic circuit and the Halbach array are FEA-validated using ANSYS Maxwell or JMAG magnetic circuit simulation before tooling, and every shipped magnetic wheel is delivered with a VSM demagnetization curve, a CMM dimensional report, and a 100% pull-force test certificate on a GB 20# low-carbon steel test plate (thickness ≥ 10 mm, Ra ≤ 1.6 µm).
FAIZEAL magnetic wheels use sintered NdFeB as the default magnet material because of its high remanence (Br) and large energy product (BH)max. The standard grade range is N35 to N52, covering room-temperature applications up to 80°C. For elevated temperature service, FAIZEAL supplies high-coercivity grades N35SH, N38SH, N40SH, N42SH, N45SH, N35UH, N38UH, N40UH, N42UH, N48UH, N30EH, N33EH, N35EH, N38EH, and N28AH, N30AH, N33AH, which tolerate continuous operating temperatures from 120°C to 240°C without irreversible demagnetization. For ultra-high-temperature service above 240°C, or for radiation-resistant applications in nuclear power plant containments (γ dose rate ≤ 100 kGy), FAIZEAL supplies samarium cobalt magnets — SmCo5 or Sm2Co17 — which combine 300°C+ thermal stability with low activation and minimal magnetic decay over a 10–15 year design lifetime. The choice of magnet grade is driven by the maximum operating temperature, the required holding force, and the magnetic circuit design; FAIZEAL's engineering team supports the grade selection during the DFM (Design for Manufacturing) report delivered within 5 working days of inquiry.
When the wall climbing robot must inspect a curved ferromagnetic surface — a wind turbine nacelle, a chemical reactor shell, a spherical pressure vessel, an oil tank dome, a large-diameter cargo container ceiling, or a bridge cable-stay enclosure — a single circular magnetic wheel cannot conform to the curvature. The FAIZEAL arc-segment magnetic wheel solves this problem by manufacturing each magnetic segment as a curved arc (single-arc angle 10° to 60°) and then assembling 6, 8, 12, or more arc segments into a complete ring magnetic wheel group. The resulting multi-arc magnetic wheel assembly adapts to the local surface curvature of the working face, distributes the holding force evenly around the circumference, and allows the wall climbing robot to climb on spherical or cylindrical steel structures with radius as small as 100 mm. The arc segment is precision-cut from sintered NdFeB block using wire EDM and surface grinding, with dimensional tolerance of ±0.05 mm on thickness and ±0.1 mm on width, and curvature radius verified 100% by optical comparator before assembly. The arc segments are bonded to the steel back-iron with high-strength structural adhesive and then magnetized either in the assembled state (preferred for radial multi-pole magnetization) or before assembly (preferred for Halbach configurations requiring precise segment-to-segment angular alignment).
The outer rubber tread ring of the FAIZEAL magnetic wheel is the contact-and-grip element that determines the anti-slip performance on vertical and overhead steel surfaces. The standard tread material is NBR (nitrile butadiene rubber), which delivers oil resistance, abrasion resistance, and a service temperature range of -30°C to +110°C, the most common choice for ship hull cleaning robots, storage tank inspection robots, and indoor industrial NDT robots. For arctic or winter-climate deployment, HNBR (hydrogenated nitrile) extends the low-temperature limit to -40°C while improving ozone and weather resistance. For high-temperature or clean-room applications, silicone rubber covers -60°C to +200°C with excellent weatherability and electrical insulation. For chemical, oil-and-gas, and pharmaceutical environments, FKM / Viton fluoroelastomer delivers chemical resistance above 200°C. For high-load heavy-payload wall climbing robots, polyurethane (PU) tread offers the highest mechanical wear resistance, with rolling-mileage lifetime of 8000 to 30000 km depending on the rubber compound and operating environment. The rubber ring is vulcanized directly onto the steel rim using a one-piece molding process — no seam, no exposed magnet edge, no risk of delamination under vibration or thermal cycling. Rubber ring replacement kits are available as spare parts, with typical replacement interval of 6 to 12 months under continuous service.
One of the most valuable applications of the FAIZEAL permanent magnetic wheel is in wall climbing robots designed to operate in hazardous environments where human inspectors cannot safely enter. Nuclear power plants, chemical processing facilities, oil refineries, mining operations, and high-temperature boiler rooms all pose significant risks to human operators — radiation exposure, toxic gas, explosive atmospheres, extreme heat, and structural collapse hazards. A wall climbing robot equipped with FAIZEAL magnetic wheels can access these dangerous areas, perform ultrasonic testing (UT), magnetic particle inspection (MT), eddy-current NDT, visual inspection, thickness gauging, and coating-condition surveys without exposing any human to the hazard. The magnetic wheel's zero-energy-consumption adhesion means the robot can operate for hours on battery power without depending on tethered power cables that could snag on pipes, valves, or structural members. For ATEX / IECEx Zone 1 and Zone 2 explosive atmospheres, FAIZEAL supplies explosion-proof magnetic wheels rated Ex db IIB T4 to T6, with all-spark-safe stainless-steel fasteners, anti-static conductive rubber tread compounds, and magnetic shielding to prevent electromagnetic interference with sensitive process instrumentation. For nuclear containments, the SmCo magnetic wheel version offers radiation tolerance up to 100 kGy γ dose and low activation to prevent primary-loop contamination.
The permanent magnetic wheel has also opened new possibilities in space exploration, where robotic probes must traverse the metallic hulls of spacecraft, asteroid surfaces, planetary lander exteriors, and orbital infrastructure in microgravity and hard vacuum. The zero-power, zero-heat, zero-outgassing characteristic of the FAIZEAL NdFeB magnetic wheel makes it ideal for space-rated robotic crawlers that must operate on the outer skin of a spacecraft, on asteroid surfaces with ferromagnetic mineral content, or inside space-station modules during on-orbit inspection. Wall climbing robots equipped with FAIZEAL magnetic wheels can perform structural health monitoring, micrometeorite impact inspection, thermal blanket integrity checks, and external payload servicing without requiring astronauts to perform dangerous extravehicular activities. The low-outgassing rubber compounds and vacuum-compatible lubricants used in the FAIZEAL space-grade magnetic wheel make it suitable for LEO, GEO, and deep-space mission profiles.
In disaster response scenarios — collapsed buildings, industrial accidents, structural fires, earthquake-damaged infrastructure, and post-explosion debris fields — FAIZEAL magnetic wheel-equipped search and rescue robots can navigate through unstable terrain, climb on twisted steel beams, traverse overturned steel structures, and enter confined spaces that are inaccessible to human first responders. The wall climbing robot magnetic wheel delivers reliable adhesion on rusty, painted, deformed, and partially coated steel surfaces — the very conditions that dominate post-disaster environments. The rubber tread provides anti-slip grip on wet, oily, or debris-covered steel, and the NdFeB magnetic circuit maintains holding force even when the surface has 0.3 to 0.5 mm of paint, rust, or coating that would defeat a vacuum suction system. With onboard thermal imaging, gas detection, two-way audio, and victim-location sonar, a search and rescue robot on FAIZEAL magnetic wheels can locate trapped survivors, deliver water and communication equipment, and provide real-time situational awareness to incident commanders — all while keeping human responders out of harm's way.
Beyond the core wall climbing robot use case, FAIZEAL magnetic wheels are deployed across the wind energy, marine, petrochemical, and power generation industries. In wind energy, magnetic wheel wall climbing robots autonomously inspect, clean, repaint, and recoat wind turbine steel towers (60 to 160 m tall) and nacelles (4 to 8 m diameter spherical structures) at climbing speeds of 6 to 12 m/min, covering 100 to 200 m² per run without scaffolding or rope access. In marine and offshore, magnetic wheel hull cleaning robots equipped with multiple Halbach magnetic wheels (80 to 150 mm OD, 30 to 50 mm stack) deliver total holding force of 3000 to 8000 N to support 50 to 150 kg payload at working depths of 0 to 30 m, removing biofouling, inspecting cathodic protection, and repainting ship hulls. In petrochemical and power, magnetic wheel climbing robots inspect 100,000 m³ crude oil storage tanks (80 m diameter, 20 m wall height), boiler drums, pressure vessels, oil and gas pipelines (200 to 1200 mm diameter), and the four-tube system of power plant boilers (water wall, superheater, reheater, economizer) with eddy-current, ultrasonic, and magnetic-flux-leakage NDT probes. The FAIZEAL rubber-sealed magnetic wheel, with IP67 to IP68 protection rating, supports 96h to 1000h neutral salt-spray resistance, UV resistance, and -40°C to +200°C thermal cycling, certified to EN 12944 corrosion protection and IEC 61400 wind environment standards.
Every FAIZEAL magnetic wheel is custom-engineered to the customer's wall climbing robot specification. Standard and custom options include: outer diameter 20 mm to 500 mm+ with no upper size limit; wheel width 5 mm to 120 mm; holding force 30 N to 5000 N+ per wheel; NdFeB grade N35 to N52 with SH / UH / EH / AH high-temperature options; samarium cobalt SmCo5 or Sm2Co17 for ultra-high-temperature and radiation-resistant service; radial multi-pole, axial, or Halbach magnetization circuit; back-iron in DT4 electrical pure iron or 10# low-carbon steel; hub material in 6061 / 7075 aluminum alloy, 304 / 316 stainless steel, titanium, or carbon steel; tread material in NBR / HNBR / silicone / FKM Viton / polyurethane / EPDM / chloroprene; surface treatment in black oxide, zinc, nickel, electrophoretic epoxy, PTFE, Dacromet, phosphating, or Parylene coating; protection rating IP54 to IP68; salt-spray rating 48h to 1000h; operating temperature -60°C to +350°C; ATEX / IECEx Ex db IIB T4 to T6 explosion-proof rating; and integrated mechanical interfaces including flange patterns (3-M3 to 12-M12), keyways, D-bores, interference fits, shrink-fit hubs, splines, encoder magnet pockets, brake mounts, strain-gauge mounting pads, pre-installed deep-groove ball bearings or tapered roller bearings, hollow shafts for cable pass-through, and embedded cable channels. The FAIZEAL customization workflow begins with a 2D drawing or 3D step file, proceeds through a DFM (Design for Manufacturing) report and ANSYS Maxwell or JMAG magnetic circuit simulation delivered within 5 working days, then to 10–15 day prototype lead time with MOQ of just 1 piece, and finally to 15–30 day mass-production lead time with MOQ of 100 pieces. Every shipped magnetic wheel includes VSM demagnetization curves, CMM dimensional reports, magnetic circuit simulation reports, salt-spray reports, protection rating reports, dynamic balance reports (G2.5 / G6.3), and PPAP first-article approvals.
The FAIZEAL magnetic wheel delivers maximum holding force on clean low-carbon steel surfaces (Q235, S235, S355, 20# steel) with roughness Ra ≤ 25 µm and flatness ≤ 0.5 mm/m. Ferritic and martensitic stainless steel (430, 410) deliver 70% to 90% of carbon-steel holding force and are generally acceptable. Austenitic stainless steel (304, 316) is essentially non-adherent to permanent magnets; FAIZEAL offers a stainless-steel adapter pad and a hybrid rubber-friction plus vacuum-assist solution for these surfaces, or a mechanical clamping arm as a complete replacement. Aluminum, copper, brass, fiberglass, and plastic are non-adherent and outside the magnetic wheel's operating envelope. Paint coatings ≤ 200 µm reduce holding force by only 5% to 15% and are typically not a problem; thick rubber coatings ≥ 2 mm, 3PE anti-corrosion layers, and polyurethane coatings push the air gap to 0.5 mm or more, reducing holding force by 50% to 80%. For these large-air-gap conditions, FAIZEAL supplies large-gap (g ≤ 1 mm) specialized magnetic wheels at the cost of slightly lower specific holding force, requiring larger wheel diameter or more wheels per robot to maintain the required safety factor.
FAIZEAL has been engineering permanent magnetic assemblies for 15 years, with a dedicated magnetic wheel product line for 8 years and annual production capacity exceeding 300,000 pieces. We do not subcontract the steps that matter: NdFeB and SmCo magnet sintering and magnetization is done through our long-term partner lines in China with full batch traceability; CNC machining of hubs, flanges, yokes, and rotor sleeves uses 5-axis capability with ±0.02 mm tolerance; vulcanized rubber and polyurethane tread bonding is done in-house with one-piece molding to eliminate seams and exposed magnet edges; mechanical assembly, dynamic balancing to G2.5 or G6.3 grade, encoder alignment, and 100% pull-force testing on every wheel are completed on the same engineering thread. Because the entire production chain is in-house, your drawing revisions land in days not months, and a 50-piece pilot run, a 500-piece production run, and a 5-piece RMA replacement all share the same engineering documentation thread. FAIZEAL ships worldwide with DDP, FOB, or EXW terms, full REACH / RoHS / CE compliance documentation, and NDA-friendly engineering workflow. We read your FEA report, your solid model, your 1-pager, and we answer in the same units you design in. Send us your drawing — outer diameter × width, required holding force and air gap, surface condition, mechanical interface, duty environment, quantity, and target date — and we typically return a feasibility note and indicative pricing within 2 working days, and a firm quotation within 5 to 7 working days.
Can the FAIZEAL magnetic wheel hold on stainless steel 304 or 316? Austenitic stainless steel (304, 316) is essentially non-adherent to permanent magnets. The recommended alternatives are: switch to ferritic or martensitic stainless steel (430, 410) which delivers 70–90% of carbon-steel holding force; use a hybrid rubber-friction plus vacuum-assist adhesion system; or replace the magnetic wheel entirely with a mechanical clamping arm. FAIZEAL's engineering team can recommend the right approach based on your specific surface condition.
Can a wall climbing robot with FAIZEAL magnetic wheels climb a 90° vertical wall? Yes, provided the per-wheel holding force is at least 5× to 10× the robot's total weight (the engineering safety factor for vertical climbing). For a 30 kg wall climbing robot, the total required holding force is at least 1500 N, or 375 N per wheel in a four-wheel layout. The robot must also use a rubber-tread magnetic wheel (not bare steel) to maintain friction coefficient above 0.7, and must carry an anti-fall safety rope plus a gyroscope-and-inclinometer attitude sensor as a redundant safety system.
Can a wall climbing robot with FAIZEAL arc-segment magnetic wheels climb curved surfaces? Yes. The larger the radius of curvature, the easier the adhesion. For spherical or cylindrical steel surfaces with radius above 500 mm, a standard circular magnetic wheel typically suffices. For surfaces with radius between 100 mm and 500 mm, the FAIZEAL arc-segment magnetic wheel — assembled from 6, 8, or 12 arc segments into a complete ring — is the recommended solution. Each arc segment is precision-machined to the required curvature radius and verified 100% by optical comparator before assembly.
Can a FAIZEAL magnetic wheel operate underwater? FAIZEAL rubber-sealed magnetic wheels with IP67 or IP68 protection rating support short-term duty at water depths up to 30 meters, suitable for ship hull cleaning, offshore platform inspection, and dam-wall NDT. The rubber tread (NBR or silicone) provides the primary water seal, and the magnetic stack is fully encapsulated in vulcanized rubber to prevent seawater corrosion of the NdFeB magnets. For long-term submersion beyond 30 m or continuous underwater service, FAIZEAL supplies oil-filled sealing or full potting encapsulation. NdFeB grade selection should be N40UH or N42UH (continuous duty 150°C to 180°C) to handle the elevated temperature of tropical seawater and direct sun on the deck.
How do I select the correct NdFeB grade for my wall climbing robot magnetic wheel? For room-temperature applications (≤ 80°C), select N35 to N42. For high-temperature applications (80°C to 180°C), select N42SH to N48UH. For very high temperature (200°C to 240°C) or radiation environments, select Sm2Co17 samarium cobalt. The grade selection is driven by the maximum operating temperature of the application — including direct sun exposure on hot summer days, which can push surface temperature to 70°C to 80°C on a dark-colored steel tower. FAIZEAL's engineering team supports grade selection during the DFM report and provides VSM demagnetization curves for the selected grade as part of the shipment documentation.
What is the typical lifetime of a FAIZEAL magnetic wheel? Under rated operating conditions, irreversible NdFeB demagnetization is less than 2% over a 10-year design lifetime; SmCo demagnetization is less than 1% over 10 years. The rubber tread ring has a typical replacement interval of 6 to 12 months under continuous service, with NBR delivering 8000 to 12000 km of rolling mileage in oily environments and silicone up to 30000 km. The mechanical life of the bearings, shaft, and hub is 20000 to 50000 hours depending on load and rpm. FAIZEL standard magnetic wheels achieve MTBF ≥ 20000 hours under rated conditions, with full-life data sheets and on-site failure analysis available on request.
What custom non-standard magnetic wheel shapes and interfaces are available? FAIZEAL supports full custom engineering including: non-standard shaft diameters and lengths, integrated mounting flanges (3-M3 to 12-M12 bolt patterns), integrated encoder magnet pockets, embedded cable channels, explosion-proof housings rated ATEX / IECEx Ex db IIB T4 to T6, anti-static conductive rubber tread for flammable-vapor environments, low-temperature -40°C grade cold-weather variants, magnetic shielding for medical MRI-zone applications, and FDA-compliant rubber compounds for food-grade and pharmaceutical service. Typical custom-engineered lead time is 15 to 30 days from drawing freeze to shipment.
How is magnetic wheel holding force tested and verified? Every FAIZEAL magnetic wheel is 100% pull-force tested on a calibrated pull-force gauge (or motorized pull-off rig) against a standard GB 20# low-carbon steel test plate with thickness ≥ 10 mm and surface roughness Ra ≤ 1.6 µm. The test is performed at room temperature and at the maximum specified operating temperature for the selected NdFeB grade. The pull-force data, VSM demagnetization curve, CMM dimensional report, and dynamic balance report are all shipped with the goods as part of the standard documentation package. PPAP first-article approval is available for automotive-industry customers.
To request a custom magnetic wheel quotation, please send FAIZEAL the following information: outer diameter × width (or a step / IGS / STL file); required holding force and air gap; surface condition (polished, painted, rusty, coated — and coating thickness); mechanical interface (flange pattern, keyway, bearing spec, shaft diameter); duty environment (indoor, marine, high-temperature, ATEX zone, radiation); annual quantity and target delivery date. FAIZEAL typically returns a feasibility study and indicative pricing note within 2 working days, and a firm quotation with DFM report, magnetic circuit simulation, and sample plan within 5 to 7 working days. Prototype lead time is 10 to 15 days with MOQ of 1 piece; mass-production lead time is 15 to 30 days with MOQ of 100 pieces. FAIZEAL — permanent magnetic wheels, built your way, shipped anywhere. Contact us today to start your wall climbing robot magnetic wheel project.
