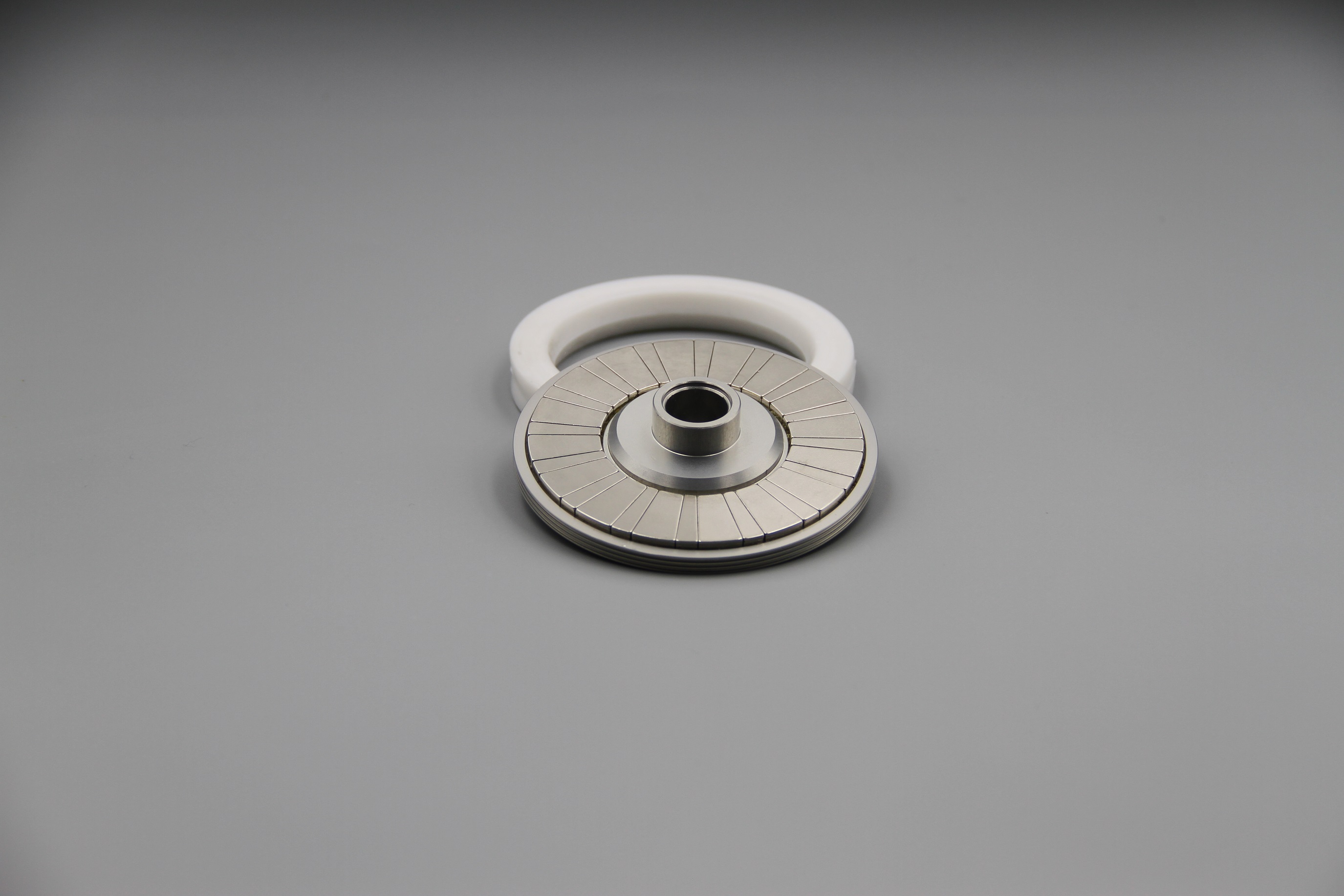

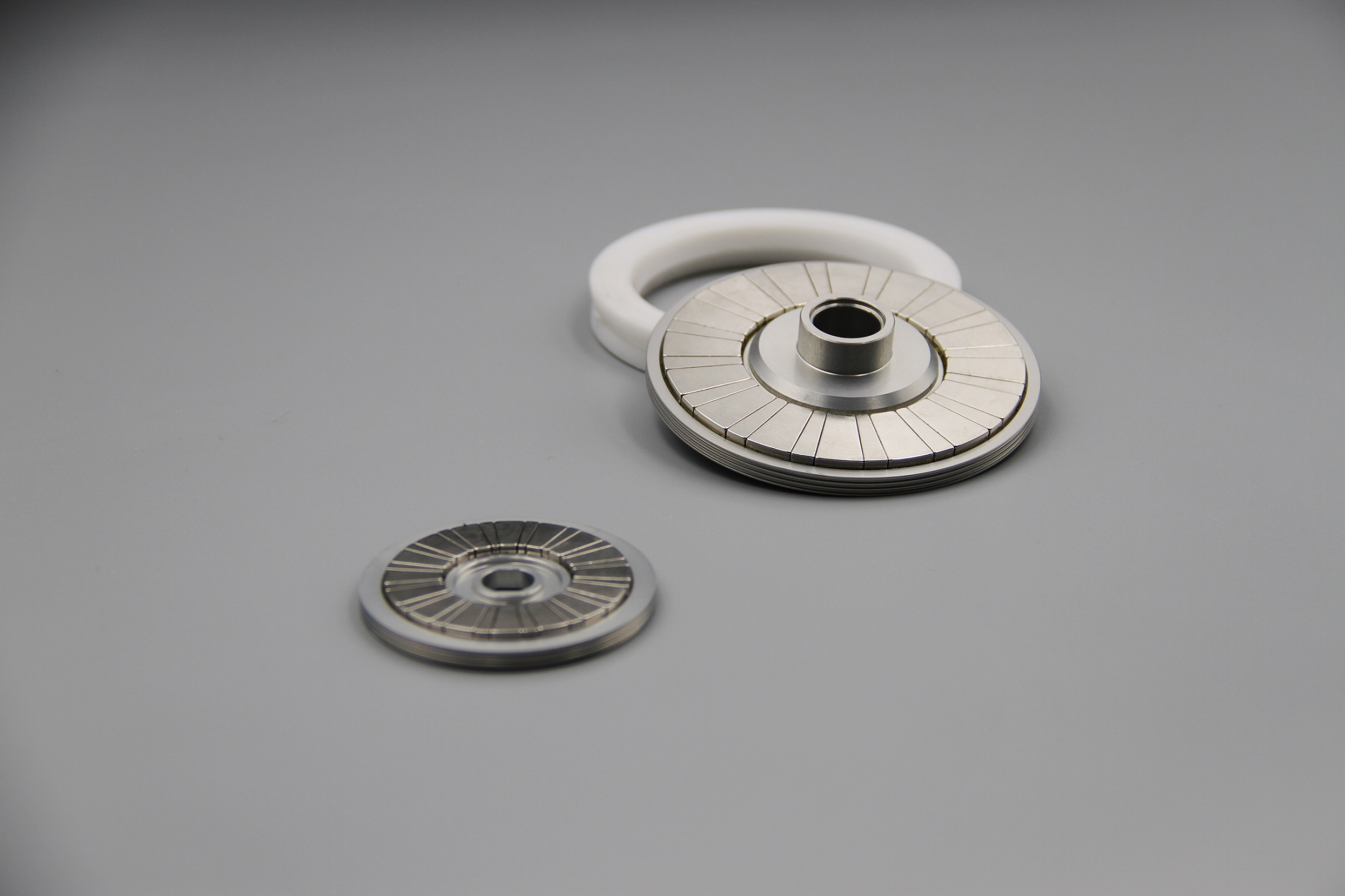

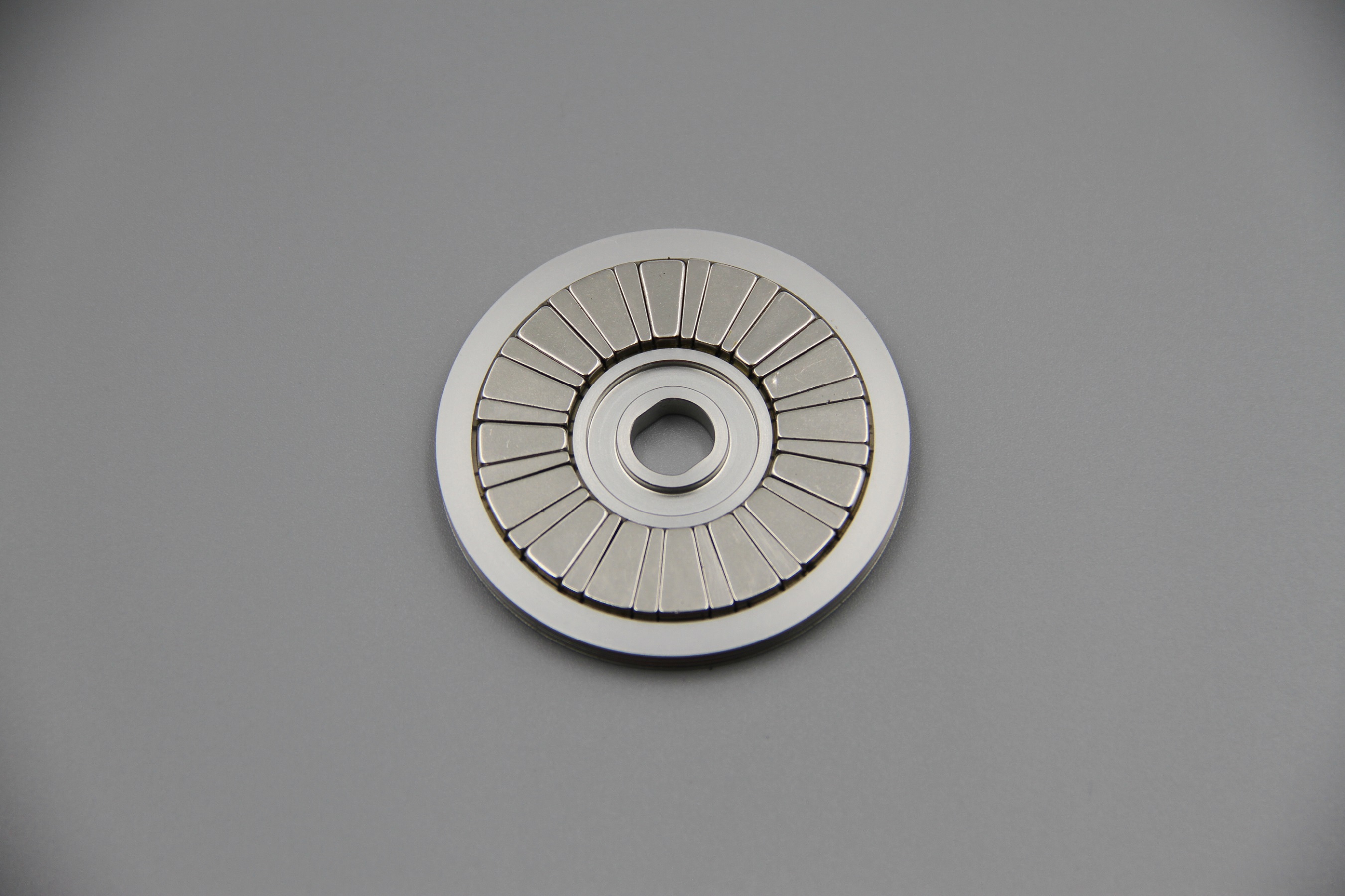

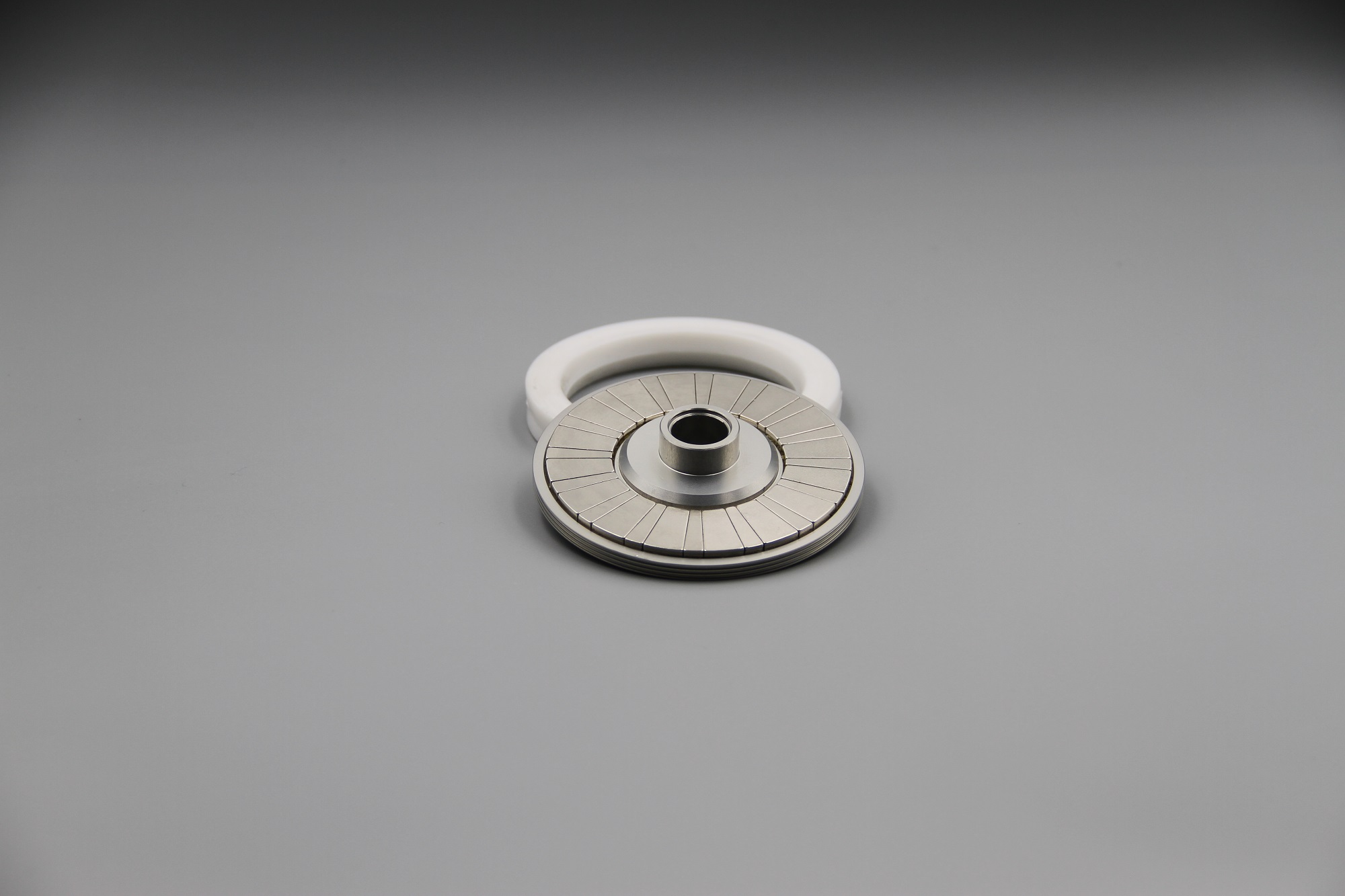

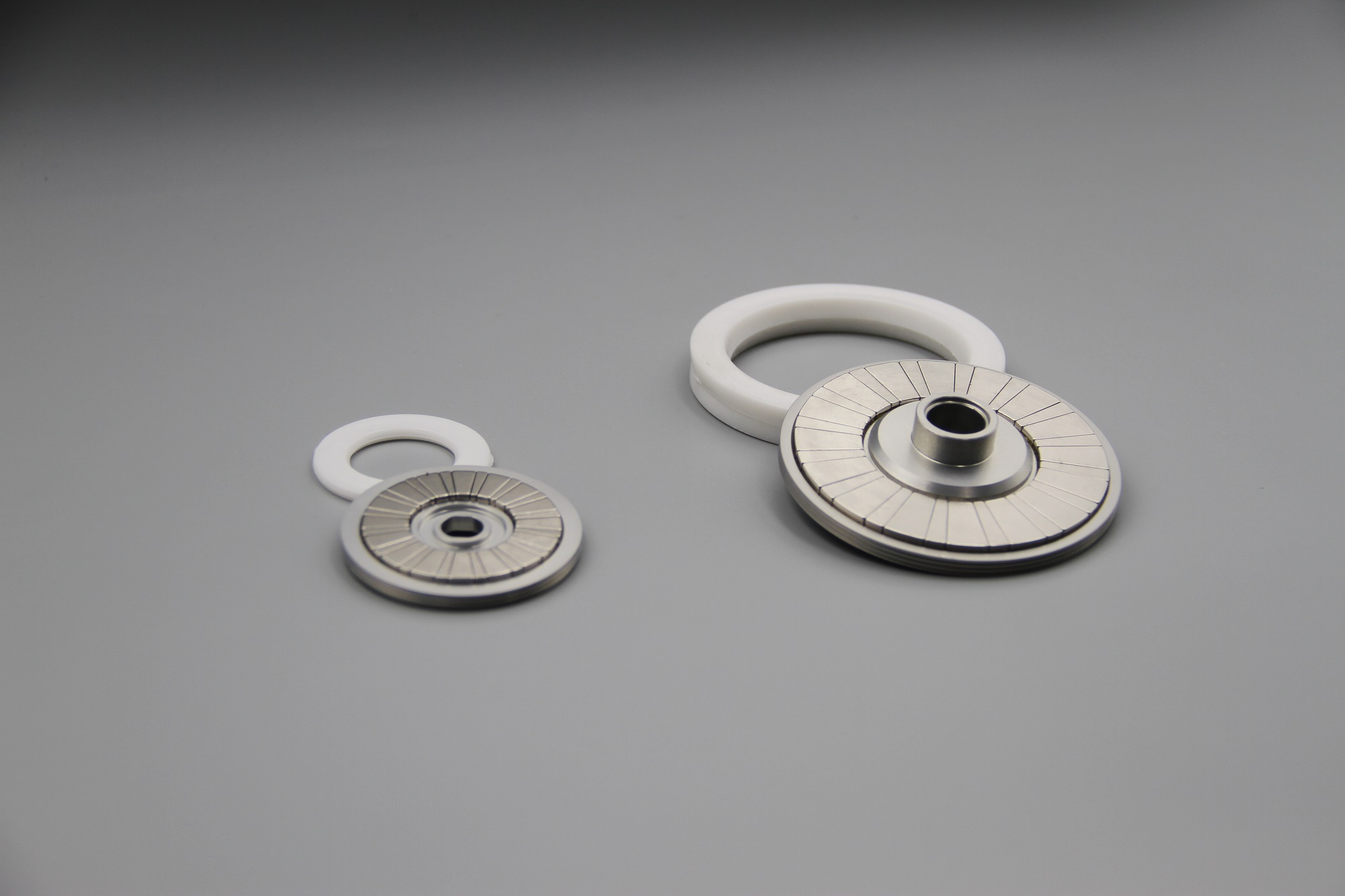

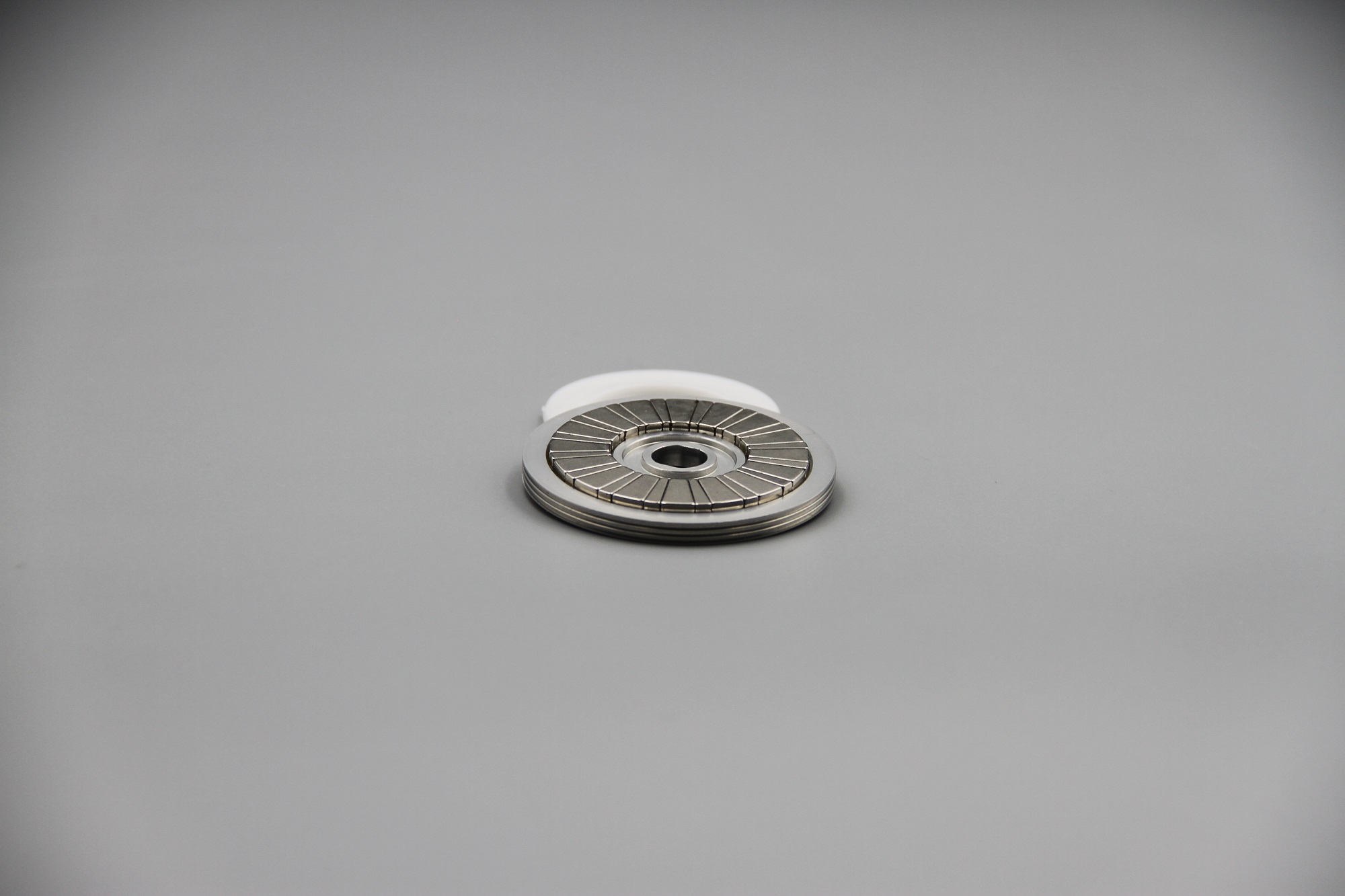

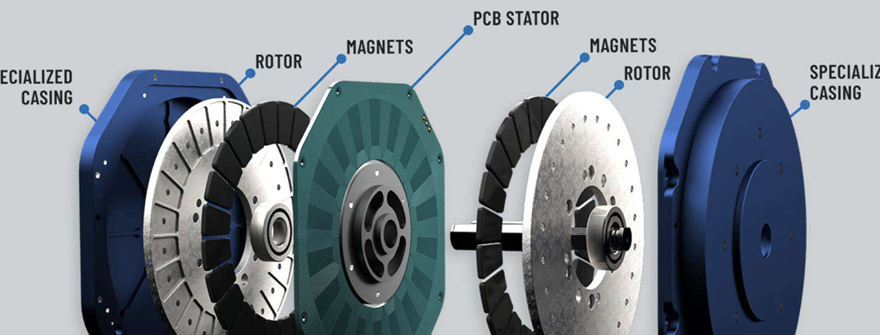

Halbach robotic knee assemblies
Contact Us Now
Lighter rotor. Higher torque. Greater reliability — the fundamental answer for joint motors.
A quadruped robot's joint motor must deliver extreme torque density within a minimal envelope, while enduring frequent shock, drops, and high-load start-stop cycles. Conventional surface-mounted rotors are trapped by the paradox of back-iron weight versus air-gap flux limits — they cannot be both lightweight and high-power. Our Halbach array rotor resolves this at the magnetic circuit level.
One-Sided Flux Concentration
Magnetization rotates progressively around the circumference, reinforcing flux on the air-gap side while canceling it on the back. With the same magnet volume, air-gap flux density rises significantly — directly amplifying motor torque density.
Ironless / Lightweight
With near-zero back-side field, the rotor dispenses with the traditional back-iron yoke. Total mass and rotational inertia drop sharply. A lighter rotor means faster joint dynamics — the robot moves more agilely and efficiently.
Low Cogging, Low Harmonic
The Halbach air-gap field approaches a pure sine wave, substantially reducing cogging torque and harmonic distortion. Low-speed operation is smoother; control precision is higher.
Zero Rotor Iron Loss
No back-iron means no eddy-current or hysteresis loss on the rotor side. Efficiency stays high at speed, thermal load drops — leaving headroom for sustained high-torque output.
The real killer of joint motors is not torque. It is temperature.
Quadruped robot joints are sealed tight for compactness, leaving harsh thermal conditions. Under sustained high load or transient overload, winding heat transfers to the rotor, and the magnet bond-line temperature easily surpasses 100°C. Conventional epoxy bonding begins to degrade in this range — adhesion weakens, thermal expansion mismatches, and centrifugal force plus vibration shock compound the stress. Once a magnet detaches, the motor fails catastrophically and the robot collapses.
We have broken through 100°C high-temperature anti-detachment magnet bonding.
Specialized high-temperature adhesive system with interface treatment, maintaining full bond-line integrity above 100°C
Suppresses interface stress concentration from thermal expansion mismatch, resisting centrifugal force and high-frequency shock
Validated through high-temperature aging and thermal cycling — no demagnetization, no magnet shedding over the long run
Provides the underlying safety guarantee for robot dogs under extreme maneuvers (jumping, hard stops, drop cushioning)
| Dimension | Capability |
|---|---|
| Array Form | Inner / outer rotor Halbach layout, customized to motor topology |
| Pole Pairs | High pole-pair designs for low-speed, high-torque joints |
| Magnet Grade | NdFeB (standard range) SmCo (high-temp high-demag scenarios) |
| Bonding | High-temp anti-detachment bonding, reliable above 100°C |
| Integration | Rotor core, sleeve, balancing — delivered as one assembly |
| Size Range | Custom to joint motor spec, from micro servo to high-power joint |
Hip knee ankle joint motors for quadruped and biped robots
Collaborative robot arm joint modules
Powered exoskeleton joints
High-precision direct-drive rotary stages and actuators
"Halbach puts the flux where it belongs. We bond the magnets above 100°C."
From magnetic circuit layout to bonding process, the core stages of joint motor rotors are fully mastered in-house.
