High-Precision Custom Permanent Magnet Rotor for Robot Joint Motors

Screw-Fixed Magnet Rotor for Robot Joint Motors | FAIZEAL

Meta Description:

Custom permanent magnet rotor with mechanical screw fixation. No adhesive failure at high temperature. Built for robot joints, cobots and frameless motors.

Suggested URL slug:Robotics Industry Applications Magnetic Assemblies - Faizeal

Target keywords: permanent magnet rotor, robot joint motor rotor, screw-fixed magnet assembly, frameless motor magnet rotor, high temperature magnet rotor, custom magnet rotor manufacturer

Catchy Product Headline

Screwed, Not Glued: The Magnet Rotor That Keeps Its Grip at High Temperature

Executive Summary / Product Overview

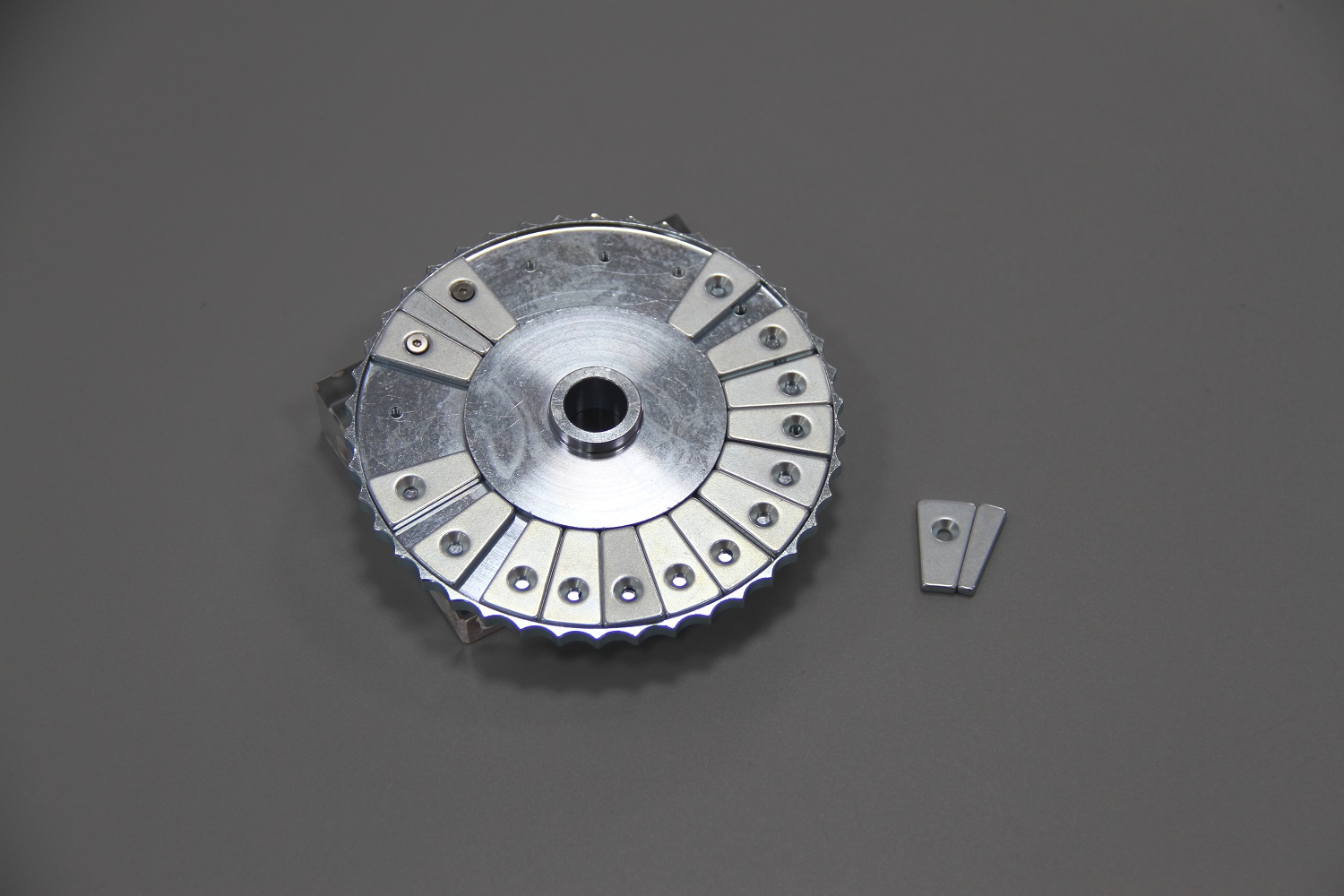

The FAIZEAL high-precision custom permanent magnet rotor is the rotating core of a robot joint motor: a machined steel disc carrier carrying a full ring of high-energy magnet tiles, each one mechanically locked in place by dedicated screws rather than bonded by adhesive. The rotor delivers high torque density and smooth, low-cogging rotation for direct-drive joint actuators, humanoid robots, collaborative robots and high-torque frameless motors.

Every rotor is built to customer specification. Carrier geometry, tile count, magnet grade, screw pattern and balancing grade are engineered against your torque, speed and thermal duty — and the fixing method, the single most important reliability decision on the part, is one you no longer have to compromise on.

Engineering Innovation: From Adhesive Bonding to Mechanical Screw Fixation

For most magnet rotor suppliers, adhesive is the default and the discussion ends there. We took a different route, and it came from testing, not from marketing.

Through rigorous multi-round testing on joint-motor duty cycles — continuous torque, elevated temperature, repeated thermal cycling — we found the industry's quiet weakness: bonded magnet rotors degrade exactly where nobody can inspect them. Adhesive softens and weakens as temperature climbs, and the strength a catalogue quotes at room temperature is not the strength your joint has at its worst case. On a robot that runs hot and never stops, that gap is a reliability risk.

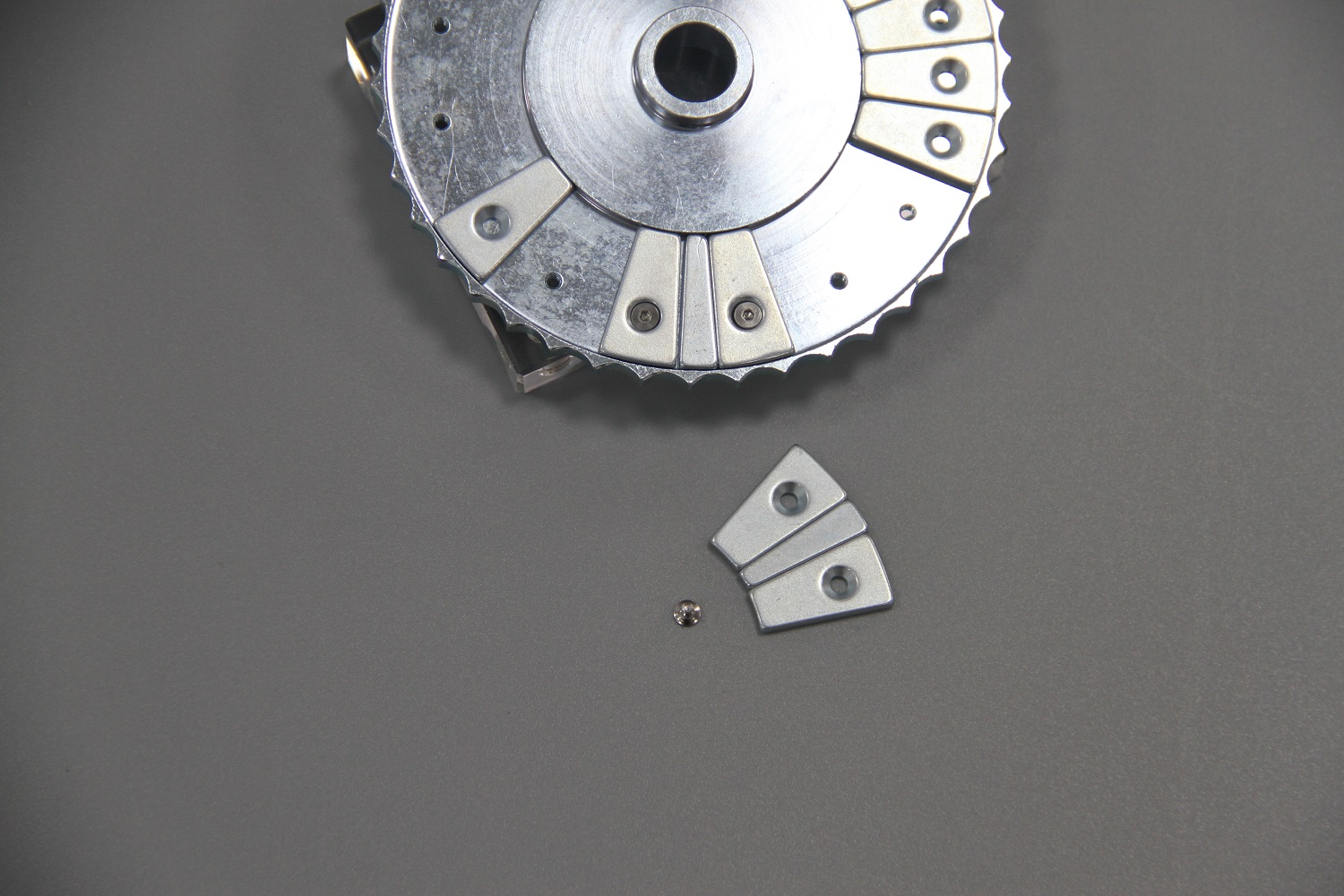

So we changed the fixing method. This rotor replaces traditional special adhesive bonding with advanced mechanical screw fixation: every magnet tile is clamped to the carrier by dedicated screws, so the magnets are held by the steel structure itself, not by a polymer layer with a temperature ceiling.

The breakthrough is structural, and its consequences are practical:

l No adhesive to degrade. There is no glue line whose strength falls with temperature, so holding force is the same hot as it is cold.

l Thermal stability by design. The rotor survives continuous high-load, high-temperature operation without the creeping relaxation that affects bonded rings.

l Safety under overload. If a joint stalls or overshoots, the tiles are mechanically locked; there is no bonded joint waiting at its limit.

l Inspectability and serviceability. Fixing is visible and verifiable — every screw can be checked, torqued and re-torqued, which turns rotor integrity from a hope into a maintenance item.

For robotics manufacturers, this is the difference between a rotor that is rated for the test bench and a rotor that is rated for the production floor.

Key Technical Features & Benefits

High-temperature resistance and thermal reliability. With no adhesive in the load path, the rotor's structural integrity does not decay with heat. Continuous high-load operation at elevated temperature is the design case, not the exception.

Precision-engineered magnet tile arrangement. Tiles are ground in matched sets and arranged for optimal torque density and a near-sinusoidal air-gap field, giving smooth rotation, low torque ripple and quiet-running joints.

Robust mechanical locking design. Screw-fixed magnetic components deliver extreme durability under shock, stall and torque reversal. The fixing is positive, permanent and inspectable across the whole service life.

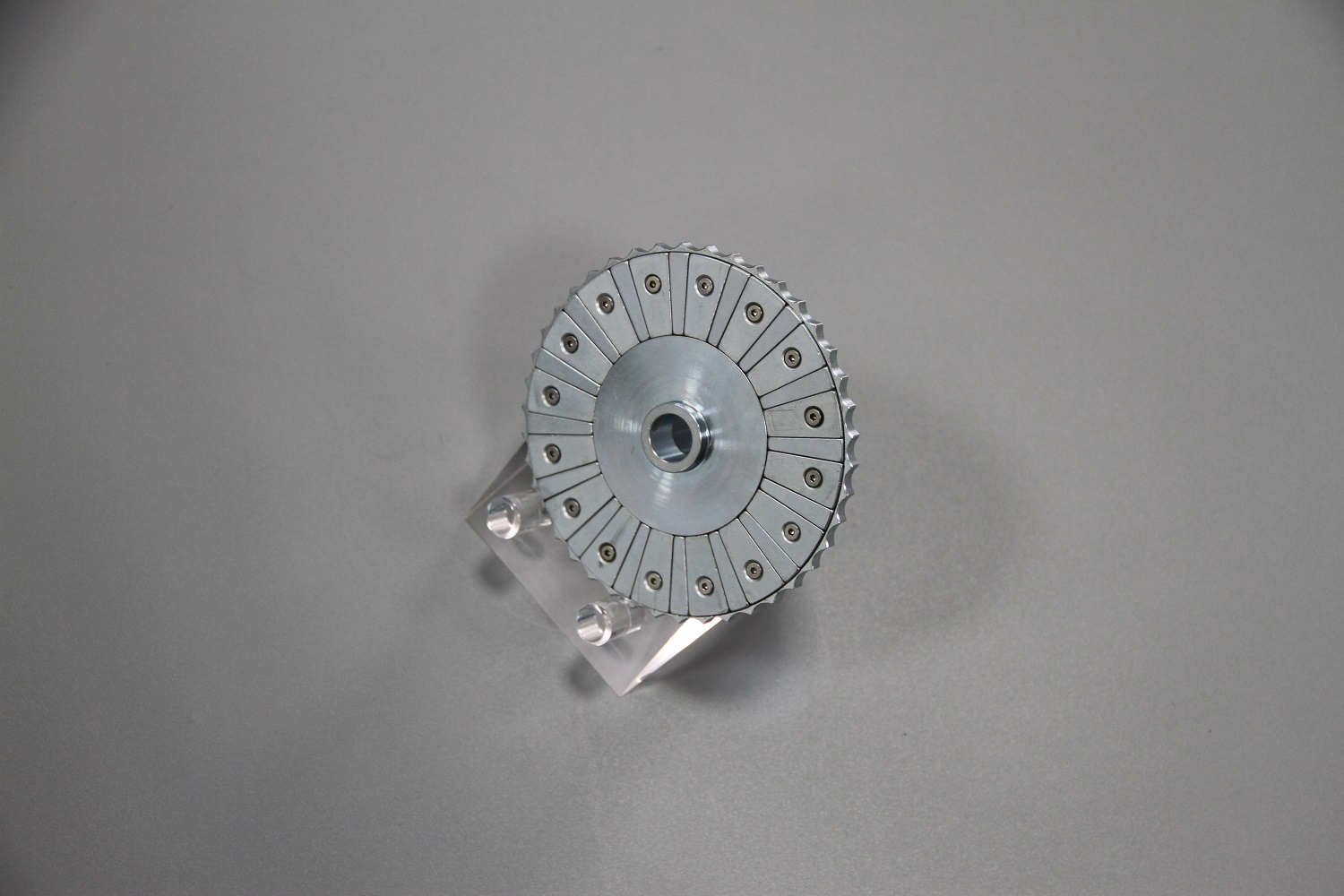

Machined steel carrier with a true mounting interface. The disc carrier is precision machined with its bore, fixing pattern and reference faces in controlled relationship, so the rotor bolts into your frameless motor stack without rework.

Dynamically balanced as a finished assembly. Balancing after the magnets are fixed keeps vibration low at joint speed and protects the bearings on both sides of the motor.

Customised options for robotics developers and motor designers. Diameter, tile count, magnet grade, screw layout, coatings and balancing grade are all specification variables. Send a drawing or a duty cycle and we engineer to it.

Target Applications

Robot joint actuators. Direct-drive and near-direct-drive joints in industrial arms and mobile manipulators, where the rotor's torque density and thermal reliability decide the joint's continuous rating.

Humanoid robots. Multi-axis actuation in constrained envelopes, where every gram at the rotating joint and every degree of thermal headroom in the actuator counts against the robot's runtime and payload.

Collaborative robots (cobots). Compact joints that run frequent, high-dynamic cycles close to people, where predictable behaviour under thermal load is a safety argument, not just a performance one.

High-torque frameless motors. Torque-frame motor builders who need a magnet rotor that drops into their stack — mechanically fixed, balanced and documented — with the magnet system already solved.

Call to Action — Customisation Inquiry

Tell us the duty cycle. We will engineer the rotor.

FAIZEAL is a magnet engineering and manufacturing company, not a trading company. Every rotor on this page started as a customer drawing or a customer problem.

Send us your CAD drawing and your operating requirements — torque, speed, working temperature and envelope — and our engineers will come back with a design proposal, a finite-element-based magnetic assessment and a quotation within 24 hours. Whether you need a prototype for a humanoid knee joint or a production run for a frameless motor platform, the fixing method, the magnet grade and the balance grade will be engineered to your application, not to our catalogue.

Prepared for FAIZEAL · Ningbo FAIZEAL Magnetic Technology Co., Ltd. · fzmag.com · Shopify product page copy, screw-fixed magnet rotor · 2026
