Custom Extra-Large 400mm Halbach Array Magnetic Assembly for MRI Systems — Large-Bore, High-Homogeneity Permanent Magnet Sub-Assembly for Medical Imaging OEMs
24-sector Halbach cylinder, 400 mm outer diameter, internal flux concentration with external self-shielding for medical compliance

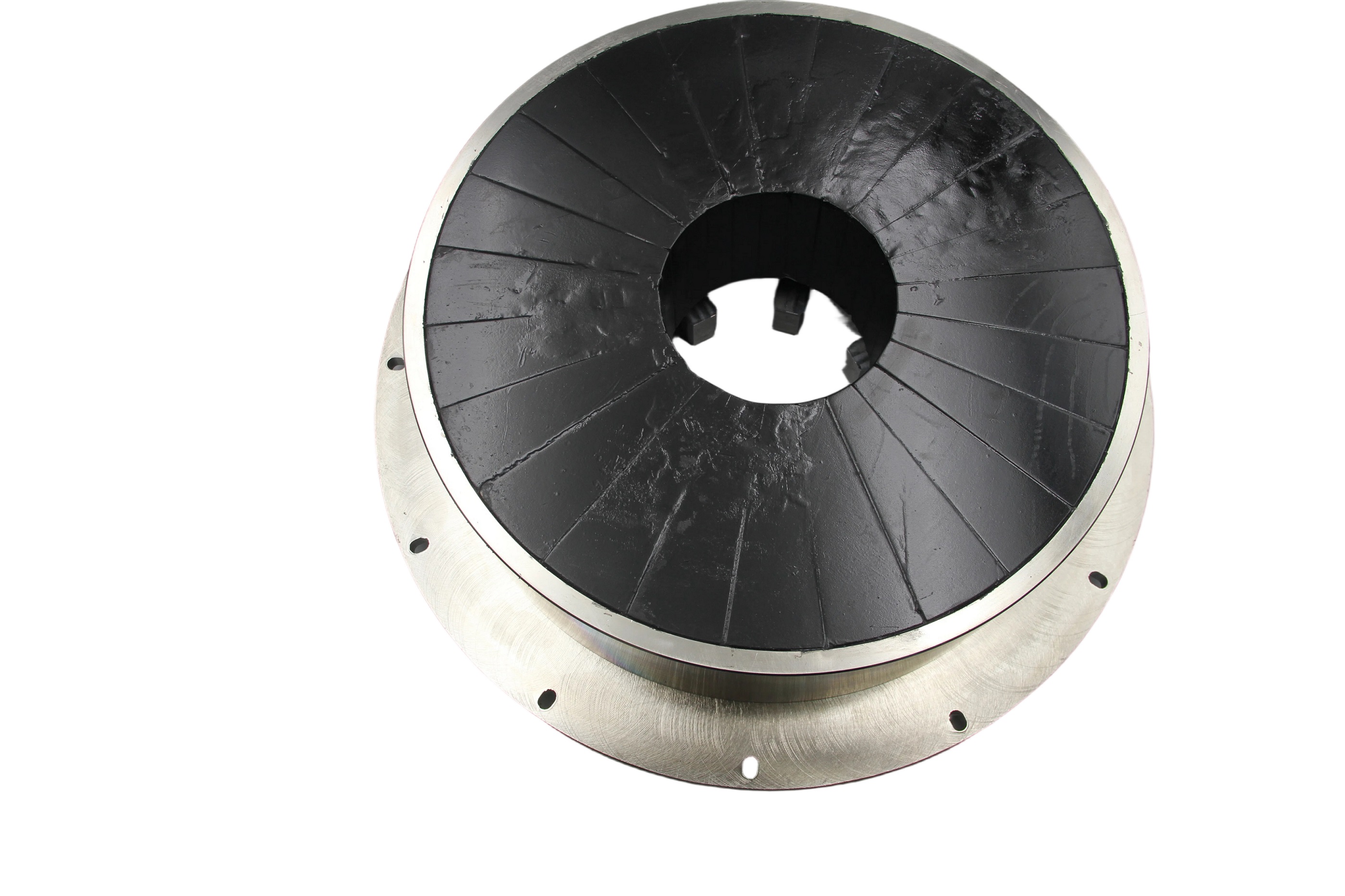

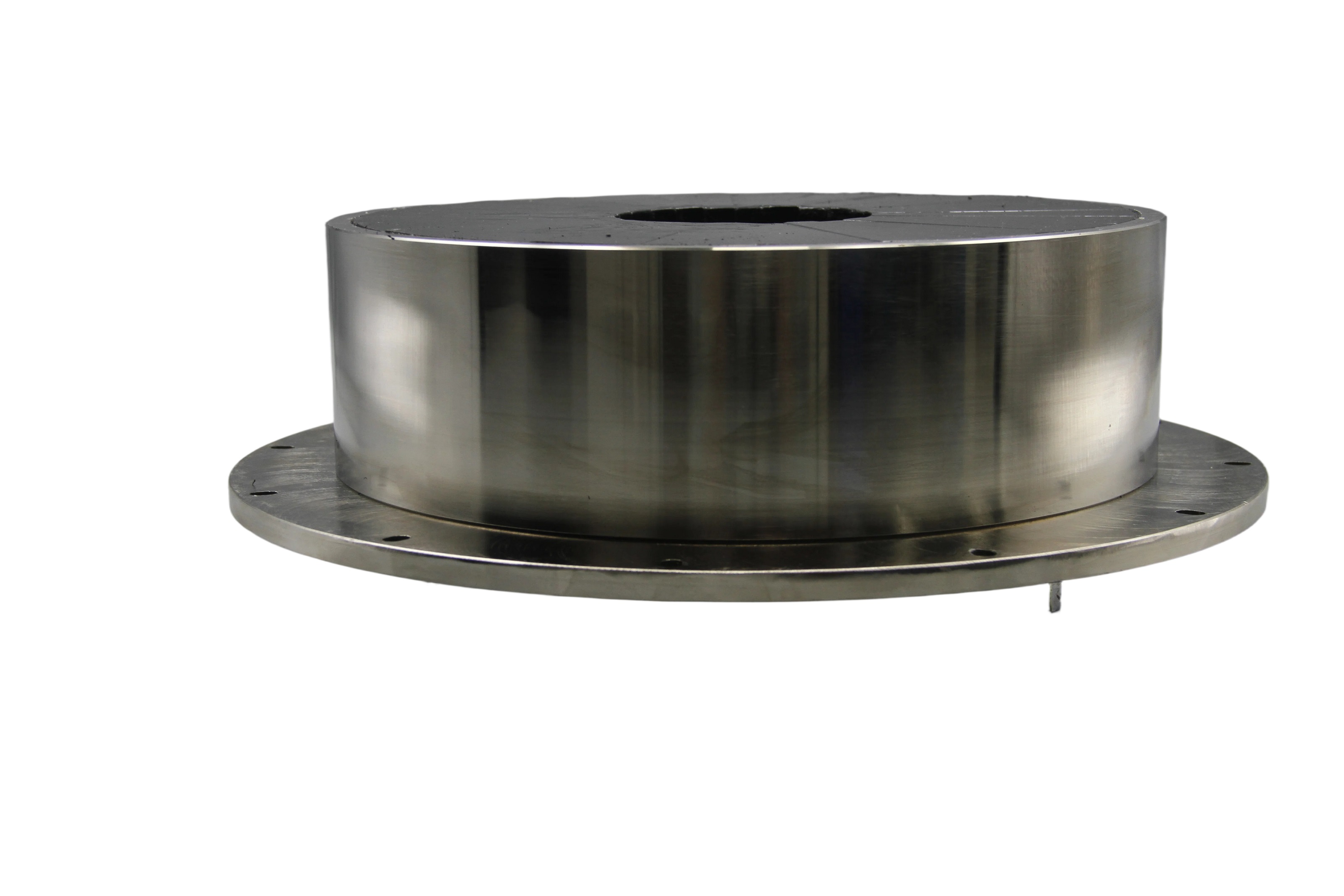

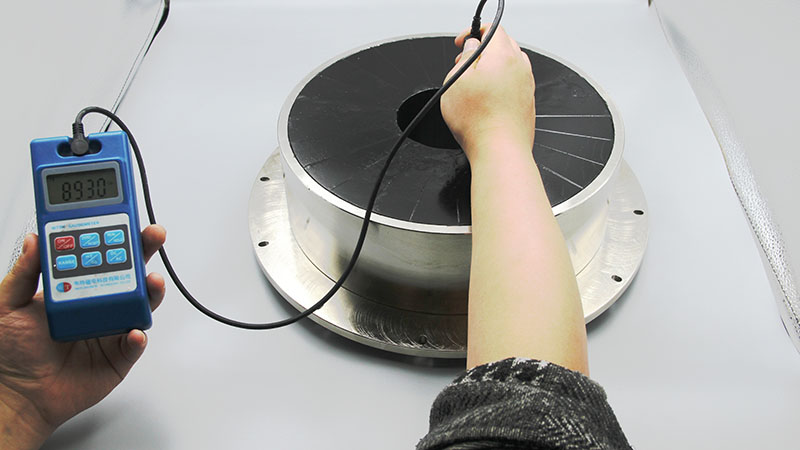

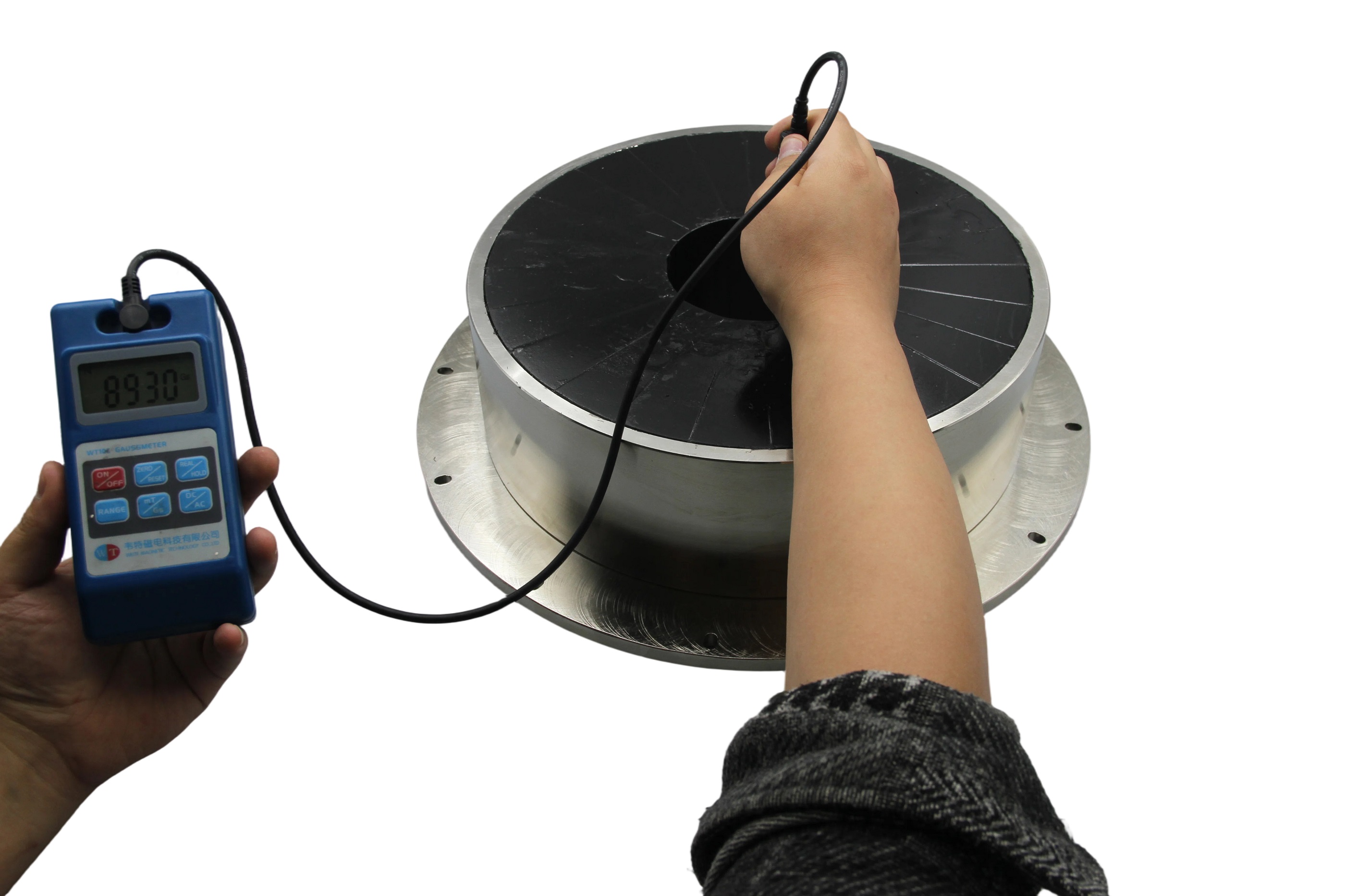

FAIZEAL custom Halbach array magnetic assemblies for MRI are precision-engineered large-bore permanent magnet sub-assemblies designed specifically for medical device OEMs building open MRI, extremity / dedicated MRI, and high-field research magnetic resonance systems. The unit shown in our reference drawing is a 400 mm outer-diameter, 24-sector Halbach cylinder built around a sintered NdFeB N52M magnet ring (24 pieces, black epoxy coated), encapsulated between two 45# steel structural covers (chrome plated for medical-grade cleanability). It delivers the field strength, field uniformity, and stray-field containment that an MRI system integrator needs to clear regulatory and image-quality milestones.
Why a Halbach cylinder is the right building block for medical MRI
A conventional MRI magnet uses a heavy solenoid wound with superconducting wire, helium cryostat, and active shielding coils. It is the right answer for 1.5 T and 3 T whole-body systems, but it is heavy, expensive, and operationally complex. For open MRI, extremity MRI, low-field portable MRI, and dedicated orthopedic imaging — where weight, siting, and total cost of ownership dominate the design — a permanent-magnet Halbach cylinder is often the better answer. The Halbach array is self-shielding by geometry, so the magnet sits in a clinical room without a faraday cage. It is made of solid-state permanent magnets with no cryogen, no power supply, and no quench risk. It runs on a standard 110 V / 220 V outlet and is fielded in offices, ORs, and mobile imaging trucks.
The trade-off is field strength and uniformity. Modern Halbach MRI magnets reach 0.1 T to 0.5 T in clinical use, with research configurations pushing higher. To get acceptable image quality at those field levels, the field homogeneity across the imaging volume must be controlled to tens of parts-per-million (ppm) rather than the thousands of ppm typical of an industrial Halbach cylinder. That requires a magnet built to medical-grade precision — and that is exactly what FAIZEAL delivers.
Key technical features and engineering benefits
· 400 mm large-bore architecture. Reference outer diameter is 400 +0.5/-0.5 mm; inner imaging bore is 220 +0.20/-0.20 mm; central cavity 100 +0.50/0 mm for gradient-insert and RF-coil packaging. The OD envelope fits the most common open-MRI and dedicated-orthopedic system formats.
· Superior field homogeneity for high-resolution MRI. The 24-sector Halbach magnetization pattern is engineered for ppm-level B-field uniformity across the imaging volume. Magnetization vector is set per-segment to control the 1st, 2nd, and higher-order harmonic content of the field map. Optional mechanical shimming rings and ferrofluid shim trays are integrated in the same build.
· Internal flux concentration, external self-shielding. The Halbach geometry concentrates flux inside the bore and cancels it on the outer surface. External 5 gauss line is held to within a few centimeters of the housing, so the system can be sited in a standard clinical room without an iron-shielded enclosure.
· Medical-grade precision manufacturing. The magnet sectors are precision-ground to ±0.02 mm on the arc profile, with pole-arc coefficient and angular position set per segment to control the field map. 45# steel covers are CNC machined to ±0.05 mm and chrome plated to medical-grade cleanability. Black epoxy magnet coating protects against humidity and provides chemical resistance to typical clinical disinfectants.
· High-grade NdFeB N52M magnet, batch-traceable. 24 sintered NdFeB N52M sector magnets with M-class thermal stability (up to 100 deg C continuous operation), reversible temperature coefficient matched across the lot, and full material certificate shipped with each unit. Optional Sm2Co17 substitution for higher-temperature or higher-Hcj requirements.
· Modular mounting and integration. 12 x M8 / Ø8 mounting holes on the rear cover, equally spaced on a Ø280 PCD, integrate the Halbach assembly into the MRI frame with standard fasteners. Central bore accommodates gradient-insert, RF body coil, and optional cryoshim with no further modification.
· Stable field across the imaging session. Magnet sectors are temperature-compensated in selection, and the steel covers are designed with thermal symmetry to keep the field drift below the clinical threshold over an 8-hour scan day. Optional active temperature stabilization of the magnet housing is available on request.
· Engineered for medical compliance. Black epoxy on magnet surfaces, chrome plating on the structural covers, biocompatible material selection for surfaces in the patient bore, and full material traceability documentation (mill cert, surface treatment cert, dimensional report, FEA field map) ship with each assembly.

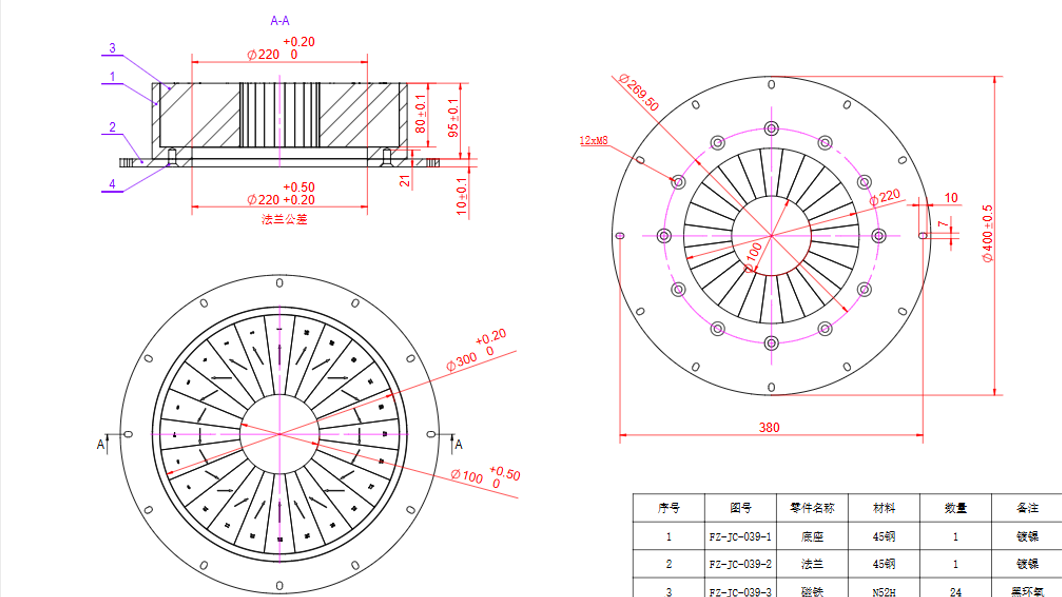

Drawing breakdown — reference Halbach cylinder (PZ-JC-039)
The reference drawing is a 3-view production assembly drawing with A-A cross section. The table below summarizes the dimensions, tolerances, and components used in the reference design. Every value is customizable for your application.
Feature | Nominal Dim. | Tolerance | Notes |
Outer diameter (large bore) | 400 mm | +0.50 / -0.50 mm | Reference OD envelope |
Inner imaging bore | 220 mm | +0.20 / -0.20 mm | Patient / coil access |
Central cavity | 100 mm | +0.50 / 0 mm | Gradient / RF insert |
Rear cover flange OD | 300 mm | +0.20 / 0 mm | Bolt-circle reference |
Mounting holes (qty 12) | 8 mm | H8 fit | Equally spaced on PCD |
Mounting PCD | 280 mm | +/- 0.20 mm | 12 holes equally spaced |
Body height (main) | 80 mm | +0.20 / +0.10 mm | Magnet stack region |
Rear cover height | 10 mm | -0.10 mm | Encapsulation flange |
Top cover step | 21 mm | reference | Front cover relief |
Total assembly height | 95 mm | +0.10 mm | Front face to rear face |
Halbach segment count | 24 | evenly distributed | Per pole-pitch pattern |
Reference direction arrows | radially mapped | in drawing | Magnetization per segment |
Item No. | Part Number | Component | Material | Qty | Finish / Note |
1 | PZ-JC-039-1 | Bottom cover (rear) | 45# steel | 1 | Chrome plated, structural encapsulation |
2 | PZ-JC-039-2 | Top cover (front) | 45# steel | 1 | Chrome plated, front flange |
3 | PZ-JC-039-3 | Halbach sector magnet | NdFeB N52M | 24 | Black epoxy, per-segment magnetized |
Target medical systems and applications
· Open MRI. The Halbach cylinder geometry is the basis of the open-architecture MRI used for claustrophobic, pediatric, and interventional imaging. The 400 mm reference envelope supports a two-pillar open-MRI frame with comfortable patient access.
· Extremity and dedicated MRI. The compact, sit-anywhere form factor is ideal for orthopedic and sports-medicine clinics, where the imaging volume is dedicated to the knee, wrist, ankle, or elbow. Halbach cylinders of this size typically reach 0.1-0.3 T with clinical-grade homogeneity.
· Low-field portable MRI. Mobile and bedside MRI systems need a magnet that ships fully assembled, requires no cryogen, and runs on a standard outlet. The Halbach cylinder meets all three.
· Research-grade high-field systems. Pre-polarizer magnets for hyperpolarized gas imaging, prep magnets for 13C / 129Xe MRI, and field-cycling relaxometry all use Halbach cylinders of this class. Sm2Co17 substitution is available where higher field or higher Hcj is needed.
· Pre-polarization and prep magnets. Compact, self-shielded Halbach cylinders are the standard prep magnet for hyperpolarized noble-gas imaging and other research workflows that need a high-quality homogeneous field in a small footprint.
· Quality control and educational MRI. Low-field permanent-magnet MRI is increasingly used in industrial NDT, food inspection, and physics education. The Halbach cylinder is a low-cost, easy-to-integrate choice for these applications.
Frequently asked questions (B2B engineering FAQ)
Q1. What field strength and homogeneity can your 400 mm Halbach cylinder reach?
A. The 24-sector reference design targets 0.1-0.3 T central field in the imaging bore, with raw B-field homogeneity around 5,000-10,000 ppm peak-to-peak over a 200 mm diameter spherical volume (DSV). With passive ferrofluid shimming and active shim coils, this is brought below 50 ppm in clinical operating conditions — the level needed for low-field clinical imaging. Higher field and tighter homogeneity are available with more sectors, higher-grade magnet, and optimized pole-arc coefficient; FAIZEAL provides an FEA-based field map with every quote.
Q2. How do you handle thermal stability and field drift in a 400 mm permanent-magnet MRI?
A. NdFeB N52M has a reversible temperature coefficient of about -0.10 to -0.12 %/deg C on Br. We match every magnet lot for Br and temperature coefficient within a tight window so that the field map is repeatable from sector to sector. The reference design is rated for 100 deg C continuous operation; for tighter field drift we substitute Sm2Co17 (reversible coefficient -0.03 %/deg C) or add active temperature stabilization of the housing. Field drift is held below 50 ppm/hour in the standard clinical configuration.
Q3. How is a 400 mm Halbach cylinder shipped and installed safely?
A. The assembly is a strong permanent magnet with a high external stray field near the surface, so shipping requires a qualified dangerous-goods logistics partner (IATA magnetized material class 9), wooden crating with magnetic shielding, and a documented field-strength acceptance test on receipt. FAIZEAL provides full shipping documentation including compass safe-distance, pacemakers/implants safety distance, and field map at the air/cargo interface. On-site installation is supervised by a FAIZEAL engineer who verifies field map, mechanical alignment, and shimming before hand-over to the MRI system integrator.
Q4. Can the 400 mm reference design be customized for our MRI platform?
A. Yes. The reference drawing is a starting point, not a fixed design. Bore, OD, segment count (16/20/24/32/40), magnet grade (N48, N50, N52, N52M, Sm2Co17), pole-arc coefficient, housing material (45# steel, stainless 304/316L, aluminum 6061-T6), and mounting interface are all in scope. We work from your CAD, your target field / homogeneity, and your mechanical envelope and return a manufacturability review, an FEA field map, and a quotation. NDA-friendly workflow is standard for OEM medical programs.
Call to action
For MRI OEM programs and dedicated imaging platforms, send your target bore, OD, central field, homogeneity spec, segment count preference, and any thermal / mechanical interface. FAIZEAL returns a manufacturability review, an FEA field map, a sample shim plan, and a quotation under NDA. Engineering white papers, reference FEA reports, and shim plan templates are available on request. Contact FAIZEAL for custom Halbach array MRI magnetic assemblies, 400 mm large-bore Halbach cylinders, and OEM magnetic circuit engineering support.
