Magnetic Rotor of Disc Motor

Magnetic Rotor of Disc Motor

Rotor is the very important component of the disc permanent magnet synchronous motor. Itdirectly affects the motor's reliability and power density.

Rare-earth permanent magnet motor is a new type permanent magnet motor, it began in the early 70s. And the rare-earth permanent magnet motor has a series of advantages, such as small size, light weight, high efficiency and good characteristics. Its applications are very extensive and extend all over fields of aviation, space, defense, equipment manufacturing, industrial and agricultural production and daily life.

We are mainly produce magnetic components in permanent magnet motor field, especially NdFeB permanent magnet motor accessories which can match all kinds of medium and small permanent magnet motor. Besides, in order to reduce the damage of electromagnetic eddy current to magnets, we make multi splice magnets.

We supply pre-assembled magnetic motor parts with glued permanent magnets and metal body according to customers’requirements. And we have modern magnetic assembly line and first rate machining equipments, including CNC lathe, internal grinder, plain grinder, milling machine,etc. Modern inspecting techniques and stricted quality management system ensure us to supply high quality products to you.We will supply a complete motor parts or magnetic coupling that is ready for the fine finishing by you. It is a cost-saving MAGNETIC SOLUTION for clients.

1. Materials
Magnet: Neodymium Magnet
Main part: 10# steel, martensitic stainless steel

2.Size

ø202x9.2mm for this magnetic rotor

3.Application

Flat rotor assembly is mainly used in aerospace, automobile drive system, Unique in design and aerospace composite components. Can provide technical requirements for big torsional torque can be used for high temperature and high-speed and high-strength environment provide application requirements.

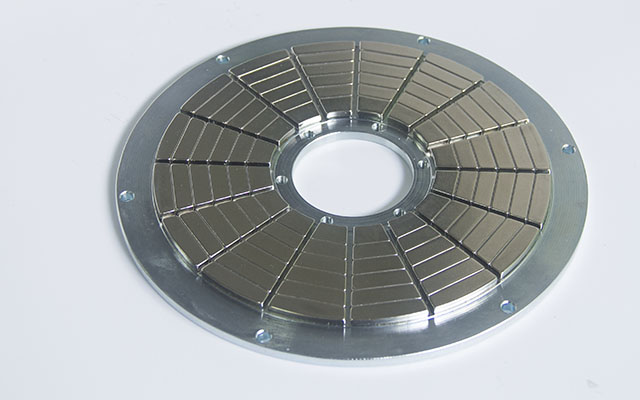

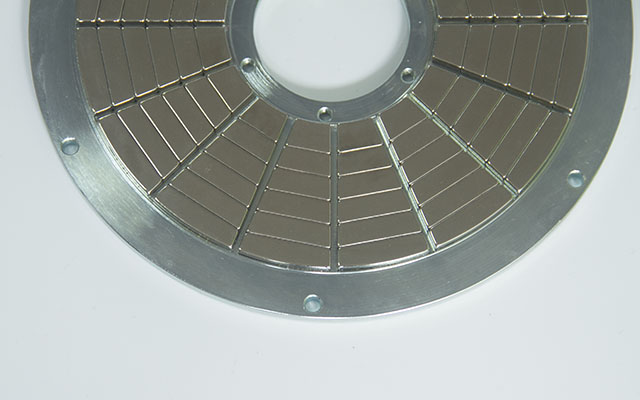

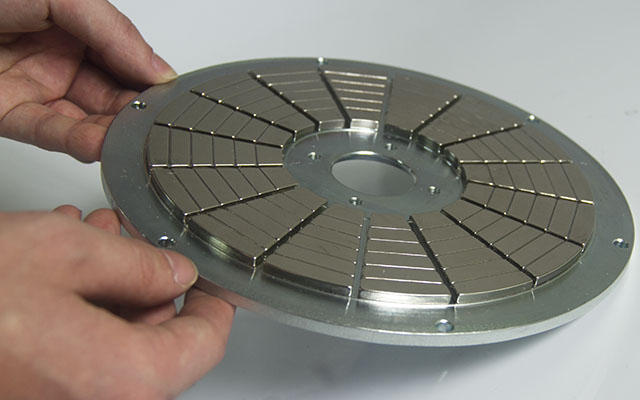

Products Show
