Bonded vs Sintered NdFeB: The Three-Way Trade-Off for Complex Structures

Subtitle: Complex shape, magnetic performance, secondary-processing cost — a selection map for engineers designing complex structures

When engineers get a magnet requirement that is "irregular in shape, needs multi-pole, and tight tolerances," the first reflex is often "which NdFeB has the best performance?" That's the wrong question. For complex structures, the right question is: which process makes shape, tolerance, and cost simultaneously work, while meeting function.

Sintered and bonded are two completely different technology routes, and their strengths lie in exactly different places. This article lays out the three dimensions so engineers can draw a clear selection map.

1. Two Processes, Two Routes

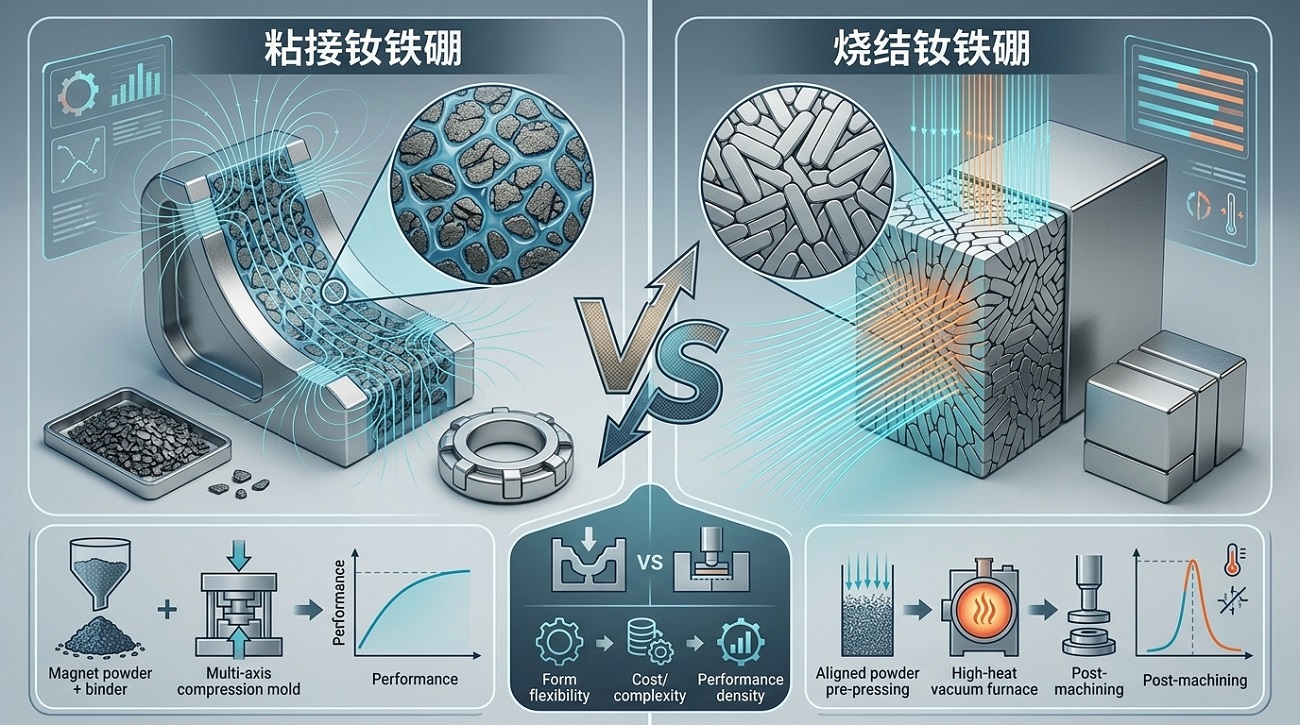

Sintered NdFeB. The powder-metallurgy route: alloy ingot → hydrogen decrepitation (HD) → jet milling → directional pressing → high-temperature sintering → aging. High density and strong magnetic performance, dominated by anisotropy — the magnet performs best along the pressing direction.

Bonded NdFeB. The "magnetic powder + binder" route: rapidly-quenched NdFeB powder (such as MQ-type) is mixed with a binder like epoxy, then compression-molded, injection-molded, or calendered; the resin encapsulates and fixes the powder. In essence it is net-shape forming — shape and dimensions are mainly set by the mold.

One sentence: sintering densifies by high temperature, bonding forms by resin — this fundamental difference determines the direction of every trade-off that follows.

2. Dimension One: Complex Shape and Tolerance — Bonded Wins Decisively

For complex structures, this is the most critical dimension.

Sintered's geometric ceiling. Anisotropic sintered parts need directional pressing; complex 3D shapes, thin walls, internal teeth, irregular internal cavities are hard to make. Worse, sintering has about 15% linear shrinkage, and the sintered body is hard and brittle. To get tight tolerances, almost all depend on post-sinter grinding, wire EDM, and CNC secondary processing — and these processes precisely "can't get a handle" on complex shapes: either impossible, or cost explodes.

Bonded's geometric freedom. Compression or injection molding produces complex near-net-shape parts in one step: thin walls, internal bores, gear teeth, gear-like integrated features, multi-pole rings — all made in one mold. Bonded shrinkage is small and dimensions controllable; tight tolerances are guaranteed by the mold, no grinding needed. A multi-pole rotor ring with internal teeth and locating holes might need sintered parts split and assembled; bonded produces it in one tool.

Data contrast. Sintered complex parts' tight tolerances (±0.02–0.05 mm) almost all come from post-processing; bonded's in-mold tolerance (±0.03–0.10 mm) ships with the part and doesn't add price for complex shape.

Conclusion: Once the requirement includes "complex shape + tight tolerance + one-piece forming," bonded wins decisively on the geometry dimension.

3. Dimension Two: Magnetic Performance — Sintered Leads Decisively

This is sintered's absolute home ground.

Sintered magnetic performance. Remanence Br about 1.0–1.45 T, maximum energy product (BH)max up to 35–52 MGOe, density about 7.5 g/cm³, high coercivity, good temperature stability. Same volume, sintered outputs the most flux and torque density.

Bonded magnetic performance. Remanence Br about 0.6–1.0 T, (BH)max about 8–12 MGOe isotropic, about 16–20 MGOe anisotropic (MQ3-type), density about 6.0 g/cm³ (about 30% by volume resin). Because of resin dilution, flux density is about 60–80% of sintered, energy product about 1/3 to 1/2.

But bonded has headroom. Anisotropic bonded (field-oriented molding) pulls performance up a notch; and bonded magnet rings can be directly multi-pole magnetized after forming (2–32 poles in one piece), very friendly for small motors, steppers, encoders.

Conclusion: If the goal is maximum flux, maximum torque density, or high-temperature duty (>150°C, where sintered has SH/UH/EH high-temp grades), choose sintered; if performance "good enough" suffices, bonded's geometric advantage is more valuable.

4. Dimension Three: Secondary-Processing Cost — Bonded Is Cheaper for Complex Parts

This is the most miscalculated line item.

Sintered secondary processing. The sintered body is hard and brittle; to get final shape and tight tolerance, it typically goes through multiple steps — grinding (diamond wheel, slow), wire EDM, slicing, CNC. Multiple clampings per piece, and brittleness brings chipping scrap; labor and tooling aren't cheap. The more complex the shape, the steeper this bill climbs — secondary processing of sintered precision parts often exceeds 30% of total cost (rising with shape complexity).

Bonded secondary processing. Near-net-shape; most parts only need deflashing or very light machining. Best of all: the cost of complex shape is carried by the mold, not by machining hours — the more complex the shape, the more bonded saves versus sintered.

Key insight. For complex structures, bonded is often "lower unit price, lower performance, but cheaper overall" — the saving isn't in material, it's in secondary processing. Count that in, and many "sintered is cheaper" intuitions get overturned.

5. Decision Map: How the Engineer Chooses

Combine the three dimensions into a direct selection reference:

· Complex shape + one-piece integrated features (internal teeth / bores / thin walls) + tight tolerance + mid-to-low performance need → bonded NdFeB.

· Maximum torque density / high air-gap flux / high temperature (>150°C) / high consistency → sintered NdFeB (accept the processing cost).

· Multi-pole small-motor rotors, stepper motors, magnetic encoders, sensors, pump multi-pole rings → bonded is naturally suited (multi-pole in-one-piece magnetization).

· Robot joint motors, main drives, high-power-density magnetic assemblies → sintered.

· Compromise → use anisotropic bonded to lift performance; or a combined structure of "partial sintered + partial bonded," separating the performance part from the shape part.

6. Conclusion

Sintered and bonded aren't "which is better" but "which fits the need better." Sintered wins on performance, bonded wins on shape and processing cost; the two routes' strengths lie in exactly different places. Lay out "shape complexity, performance floor, secondary-processing budget" clearly, then map against the decision guide above, and selection stops being a guess.

For complex-structure magnet process selection, or bonded/sintered feasibility evaluation, please feel free to reach out — FAIZEAL can provide technical support.
