Mechanical Seal vs Magnetic Coupling: How Complete Static Sealing Eliminates "Leak"

Subtitle: From dynamic sliding seal to non-contact transmission — the magnetic coupling uses a containment shell to solve wear, leakage, contamination, and energy loss at once

Pumps, reactors, and mixers in chemical, pharmaceutical, food, oil & gas, semiconductor, and nuclear industries all face one question: how to keep process fluid from leaking out along a rotating shaft. The traditional answer is the mechanical seal — two precision faces pressed together by a spring, lubricated by a thin fluid film. The cost is that those two faces slide against each other, so they wear, heat up, and fail.

The magnetic coupling takes a different path: eliminate the dynamic sealing surface altogether. Torque crosses a containment shell through a magnetic field; the containment shell is a static part — by nature, a static seal — and that pulls "leak" out by the root.

This article puts the four pain points of the mechanical seal against the hard-core advantages of the magnetic coupling with containment shell, in quantifiable engineering terms.

1. How a Mechanical Seal Works — and Why It Leaks

A mechanical seal consists of a rotating face, a stationary face, a spring, and secondary seals:

· The rotating face turns with the shaft and mates precisely with the stationary face;

· A spring through a follower applies a stable compressive force on the faces;

· A thin fluid film (micrometer scale) between the faces provides both lubrication and sealing.

The premise is that the rotating and stationary faces must slide against each other. That is exactly why they must wear — the faces are always rubbing, always consuming themselves.

Once wear, thermal distortion, vibration, pressure swing, dry running, or chemical crystallization disturbs the face pair, the face gap drifts, the fluid film breaks down, and leakage begins. Almost every process using mechanical seals has walked this failure path.

2. The Four Pain Points of Mechanical Seals

Pain 1 · Face wear, finite life. The rotating and stationary faces slide continuously, hard alloy (SiC, tungsten carbide) against soft graphite or resin-impregnated graphite. Typical life 6–18 months, 3–6 months in heavy service. Dry run burns them out within hours. That means at least 1–2 replacements a year — a huge cost in continuous chemical production.

Pain 2 · Drip-leak, safety and compliance risk. Face wear → seal failure → media escape:

· Chemical / oil & gas: VOC emissions tightly controlled by EPA and equivalent regulations;

· Food / pharmaceutical: product contamination = entire batch scrapped;

· Nuclear / military: radioactive or toxic media must not leak;

· Flammable / explosive: leakage = fire and explosion incident.

The "acceptable leak rate" of a mechanical seal is unacceptable in harsh service.

Pain 3 · Frequent maintenance, huge downtime cost. Replacing a mechanical seal requires shutdown, pump disassembly, cleaning, new-part install, realignment. In a continuous chemical plant, a single unplanned shutdown costs hundreds of thousands to millions of RMB. Maintenance interval 6–18 months versus 10+ year equipment design life — overhauls are counted in years.

Pain 4 · Friction energy loss and media contamination. Face friction eats 5–15% of pump power; the wear particles shed into the process media (fatal for pharmaceutical / food / semiconductor); the friction heat accelerates face wear further — a vicious cycle.

3. How a Magnetic Coupling Transmits Without Contact

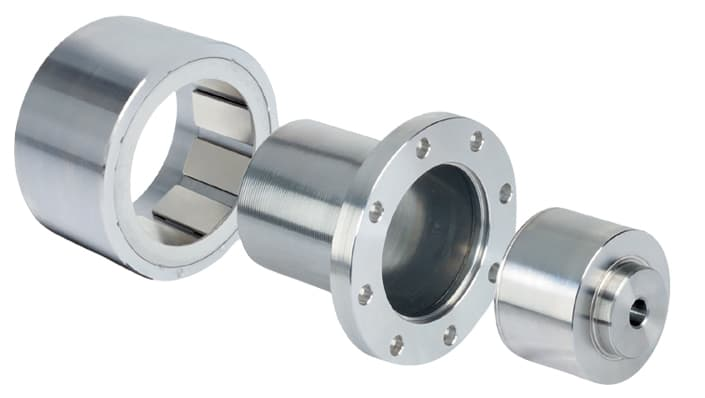

The magnetic coupling structure is simple:

· Outer rotor: mounted on the motor-side input shaft, with N-S-N-S multi-pole permanent magnets;

· Containment shell: the sealing-cavity wall, thin-walled metal / alloy / plastic, welded or flanged to the pump body as a static part;

· Inner rotor: mounted on the pump-side output shaft, multi-pole permanent magnets, immersed in the pumped media.

The magnetic field leaves the outer rotor, crosses the containment shell, reaches the inner rotor, and transmits torque. There is no mechanical connection, no relative sliding, across the containment shell — the shell is a static seal by nature.

That is the root of why "leak" is killed: the dynamic sealing surface simply does not exist.

4. Six Hard-Core Advantages of Magnetic Coupling with Containment Shell

Advantage 1 · Absolute sealing, zero leak path. The containment shell is static, welded, flanged, or bolted, integrated with the pump body. No dynamic face — no leak path. Suits highly toxic, flammable/explosive, strongly corrosive, radioactive, ultra-pure, and high-value media that "absolutely must not leak."

Advantage 2 · Zero wear, zero maintenance. Magnetic-field non-contact transmission, no face friction → no wear → no consumable. Permanent magnet life 20+ years; machine life is set by bearings. Maintenance interval 5–10 years or more — an order of magnitude longer than the mechanical seal's 6–18 months.

Advantage 3 · Fail-safe overload protection. On overload, the magnetic circuit "slips" — magnetic poles misalign, torque drops to zero, the motor and the media are not damaged. A mechanical seal burns out on overload. If the containment shell ever does rupture (very rare), there are still seconds to tens of seconds of handling window before any large leak.

Advantage 4 · Significant energy saving. Mechanical seal face friction loses 5–15% of pump power; the magnetic coupling's main loss is the induced eddy current in the containment shell. Optimized magnetic circuits (e.g., Halbach array) plus a thin containment shell can push eddy loss down to 0.5–2% of transmitted torque. The saving is especially visible in large pumps and continuous operation.

Advantage 5 · Long life and high reliability. MTBF 30,000–50,000+ hours, 3–5× that of a mechanical seal (5,000–15,000 hours). Basically no major overhaul through the equipment's full life. Design life 10–20 years.

Advantage 6 · Adapts to harsh service. High temperature (SmCo with containment shell up to 350°C), strong corrosion (Hastelloy / titanium containment shell), high vacuum (UHV/XHV-class welded containment shell), extreme cold (LN₂/LHe environment) — all well beyond the reach of a mechanical seal.

5. Containment-Shell Materials and Design

The containment-shell material directly defines the magnetic coupling's service envelope.

Table 1 — Common Containment-Shell Materials and Applicable Scenarios

Design notes:

· The thinner the shell, the stronger the magnetic coupling and the higher the torque, but the lower the strength and the more sensitive the eddy loss;

· Welded containment shells must be 100% leak-tested (helium mass spec / vacuum chamber) — the most critical manufacturing step;

· High pressure-difference service needs stress calculation and fatigue analysis;

· Long-term operation requires periodic ultrasonic / eddy-current NDT on wall thickness to monitor corrosion thinning.

6. The Boundaries and Limits of Magnetic Couplings

· Torque density: limited by magnetic-circuit design; large torque needs larger diameter or more poles;

· Speed ceiling: containment-shell eddy loss rises with speed; high-speed service needs SmCo magnets + very thin shells or a disc (axial-flux) structure;

· No thrust transmission: the magnetic coupling transmits torque only; axial thrust must be carried by a separate thrust bearing;

· Containment-shell leak testing: must be done periodically; it is not as visually obvious as "the mechanical seal failed, just replace it."

7. Magnetic Coupling vs Mechanical Seal — Core Data Comparison

Table 2 — Core Data Comparison

8. Conclusion

A mechanical seal uses precision face contact to "plug" the leak, but as long as a dynamic sealing surface exists, wear and leakage are a matter of time. The magnetic coupling uses the containment shell's static seal to eliminate the dynamic sealing surface itself — this is a principle-level advantage, not just a performance bump.

For processes that run continuously long-term, handle toxic / high-value / ultra-pure media, or face harsh temperature / corrosion, the magnetic coupling with containment shell is the more reliable, more economical, and safer engineering answer.

For chemical / pharmaceutical / food / oil & gas / semiconductor magnetic coupling with containment-shell selection, torque-speed-thickness matching, and periodic leak-test specification, please feel free to reach out — FAIZEAL can provide technical support.
