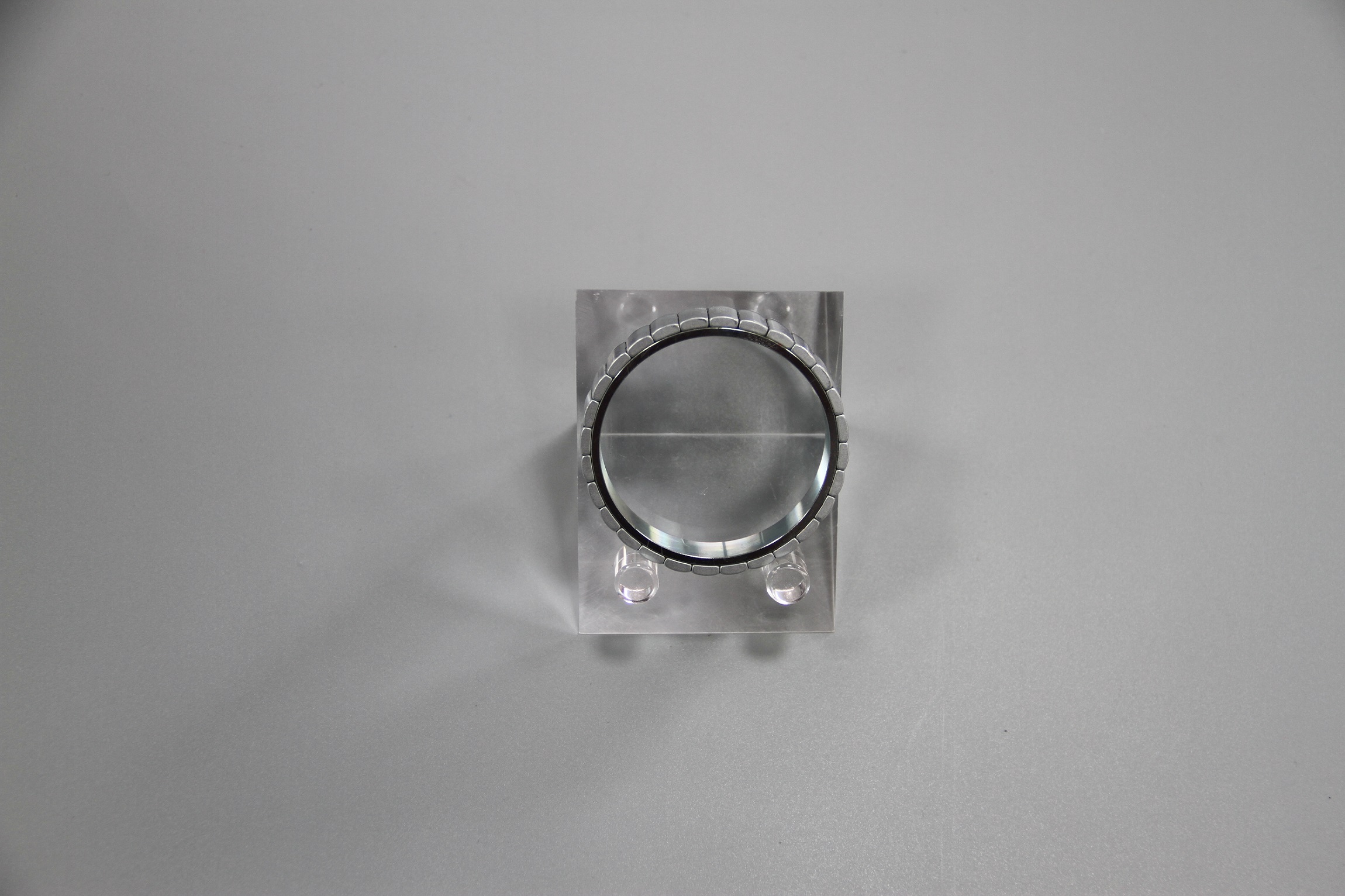

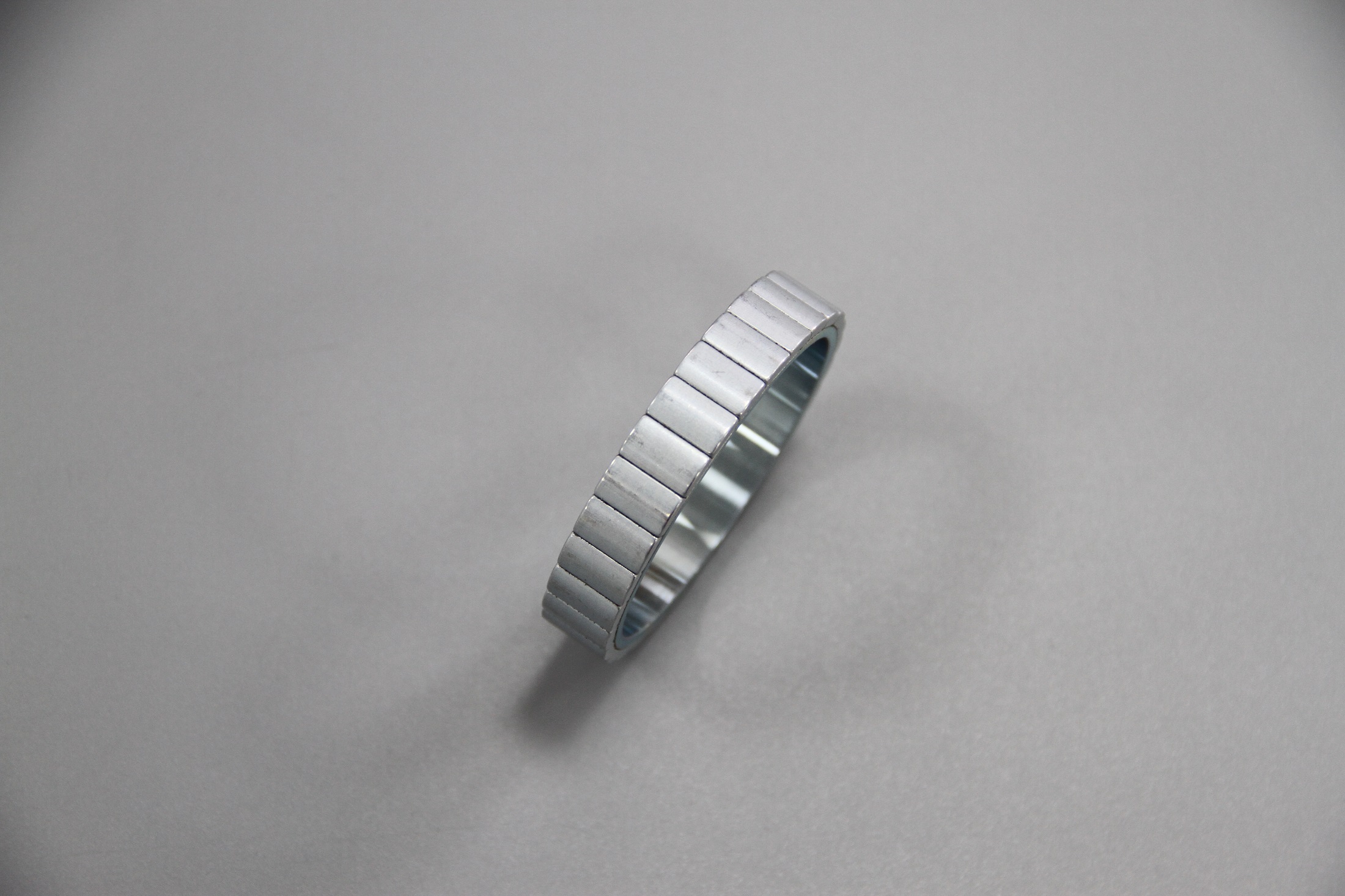

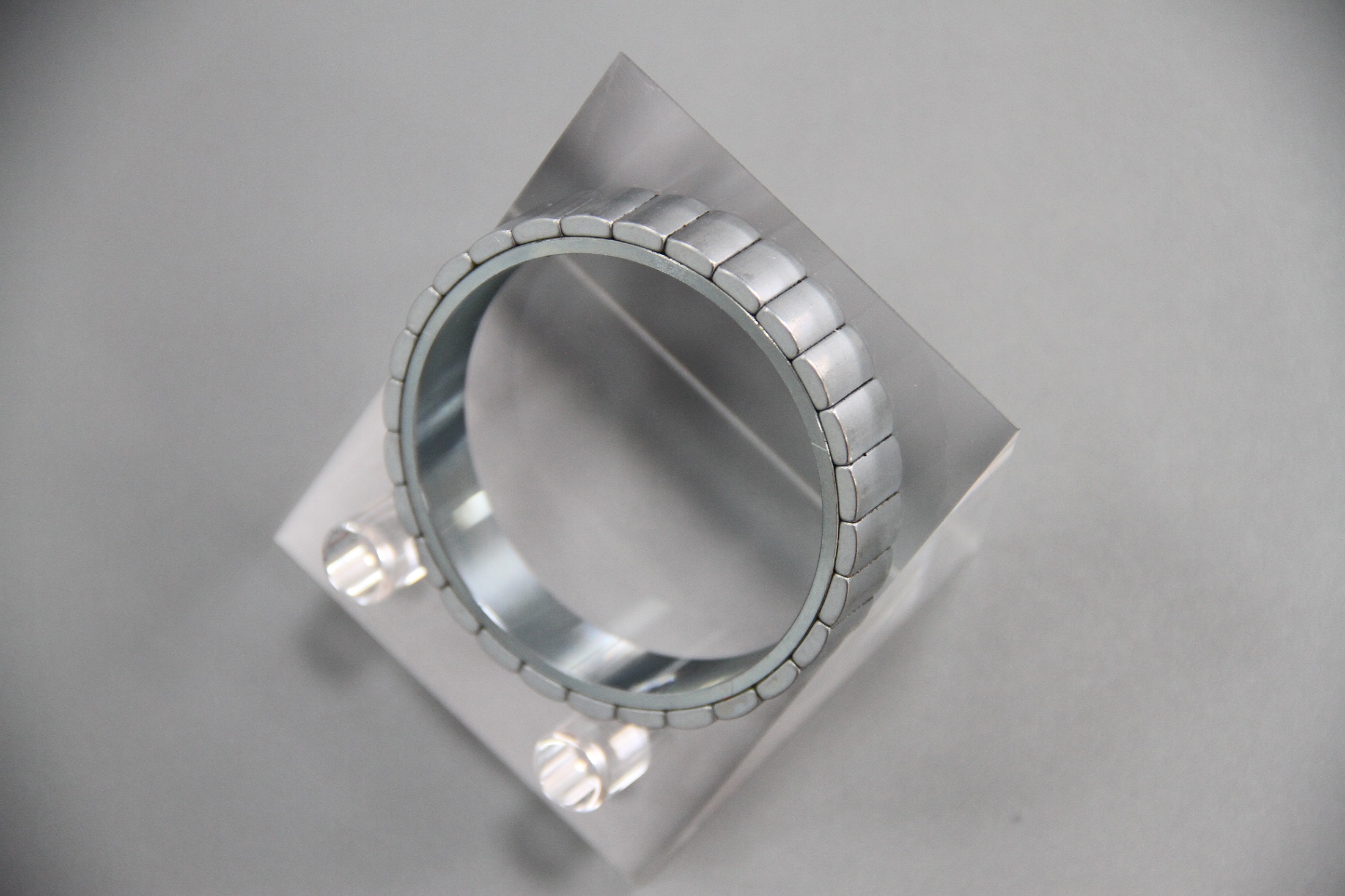

Magnetic motor rotor for robotic hip joints
Contact Us Now
Custom Sintered NdFeB Permanent Magnet Rotor for High-Torque-Density Robot Actuators
The hip joint is the single most torque-demanding actuator in any humanoid robot, quadruped robot, or bipedal robot platform. Unlike finger joints or shoulder joints, the hip joint must continuously support the full weight of the robot while producing high torque across a wide range of motion — typically 60 degrees of flexion-extension, 30 degrees of abduction-adduction, and 40 degrees of internal-external rotation. The hip joint motor rotor is therefore the engineering component that most directly determines whether a humanoid robot can walk, squat, climb stairs, or recover from a stumble without falling.
At FAIZEAL, we manufacture custom robot hip joint motor rotors using sintered neodymium iron boron (NdFeB) permanent magnets arranged in a Halbach array configuration on a precision-ground steel back-iron hub. Our hip joint rotors deliver 35 to 50 percent higher air-gap flux density than conventional radial-magnetization rotors at the same magnet volume, which directly translates into higher torque density, smaller motor envelope, lower weight, and longer battery runtime for the robot.
This engineering guide is intended for robot drivetrain engineers, humanoid robot chief mechanical engineers, quadruped robot actuator designers, and technical procurement specialists who need to specify, source, or evaluate a permanent magnet rotor for a hip joint servo motor or hip joint BLDC motor. Every parameter, every material choice, and every manufacturing decision documented below is engineered to meet the unique demands of robot hip joint applications.
A robot hip joint motor rotor is the rotating permanent magnet assembly inside a hip joint servo motor, hip joint BLDC motor, or hip joint PMSM motor. The rotor is mounted on the motor shaft and produces the magnetic field that interacts with the stator winding to generate torque. In a humanoid robot, the hip joint motor rotor is the component that converts electrical energy from the battery into the mechanical torque required to lift the robot’s torso, swing the leg forward during gait, push off during walking, and absorb impact energy during foot strike.
The Halbach array configuration is the optimal permanent magnet arrangement for a robot hip joint motor rotor because it concentrates the magnetic flux on the air-gap side of the rotor while canceling the flux on the back-iron side. This self-shielding property of the Halbach array eliminates the need for a heavy back-iron return path in some configurations and, more importantly for hip joint applications, allows the motor designer to achieve much higher air-gap flux density — typically 0.7 to 1.0 Tesla peak — in a much smaller rotor volume than would be possible with a conventional radial or tangential magnetization arrangement.
For humanoid robots, where every gram of weight in the hip actuator directly increases the torque requirement of every downstream actuator (knee, ankle, foot), the weight savings enabled by the Halbach array robot hip joint motor rotor have a compounding positive effect on the entire robot drivetrain. For quadruped robots, where the hip joint must deliver high torque at moderate speed with excellent thermal endurance, the Halbach array configuration enables continuous-duty operation without the demagnetization risk that plagues conventional high-torque NdFeB rotors.
FAIZEAL robot hip joint motor rotors use a tangential Halbach array with three, five, seven, or nine arc-shaped sintered NdFeB segments per pole pair. This multi-segment Halbach array configuration produces an air-gap flux density that is 35 to 50 percent higher than a single-piece radial-magnetization rotor at the same magnet volume and the same outside diameter. For a hip joint servo motor designer, this means that the same torque output can be achieved with a smaller and lighter rotor, or alternatively, a substantially higher torque output can be achieved with the same rotor envelope.
Robot hip joints typically operate at low to medium rotational speeds, in the range of 50 to 500 revolutions per minute depending on the gait phase and the robot’s locomotion mode. At these low speeds, cogging torque and torque ripple from a low pole-count rotor become very noticeable in the robot’s motion and can introduce vibration, audible noise, and tracking error in the position control loop. FAIZEAL robot hip joint motor rotors are typically configured with 14, 16, 18, 20, 22, 24, or 26 poles to push the cogging frequency above the audible range and to deliver smooth, ripple-free torque across the entire operating speed range.
Each arc magnet segment in a FAIZEAL robot hip joint motor rotor is cut from sintered NdFeB block material using wire electrical discharge machining followed by precision surface grinding. The arc width tolerance is held to plus or minus 0.04 millimeters, the thickness tolerance to plus or minus 0.02 millimeters, and the precision-grade option holds the slot width tolerance to plus or minus 0.01 millimeters. These tight geometric tolerances are essential for achieving uniform magnetic field distribution around the rotor circumference, which directly determines the symmetry of the back-EMF waveform and the smoothness of the torque output.
Many humanoid robot hip joint designs use a direct-drive motor configuration without any gear reduction between the motor and the hip joint output. In a direct-drive configuration, any rotor concentricity error or axial runout is transmitted directly to the output motion and degrades the position control accuracy of the hip joint. FAIZEAL robot hip joint motor rotors are built with concentricity and runout control of 0.02 to 0.05 millimeters total indicator reading at typical production grade, with a precision-grade option at 0.01 millimeters total indicator reading for the most demanding direct-drive humanoid robot hip joint applications.
Robot hip joint motor rotors must operate reliably across a wide temperature range, from cold-start conditions below zero degrees Celsius to continuous-duty operating temperatures that can exceed 120 degrees Celsius in high-torque humanoid robot gait patterns. FAIZEAL engineers the magnet grade selection for each robot hip joint application based on the maximum continuous operating temperature, the peak temperature during fault conditions, and the required safety margin against irreversible demagnetization. Standard grades include N35, N38, N42, N48, N50, and N52 for moderate-temperature applications; N38SH, N40UH, N38EH, and N35AH for elevated-temperature continuous-duty humanoid robot hip joints; and Sm2Co17 or SmCo5 for the most demanding high-temperature robot hip joint applications up to 350 degrees Celsius.
The following engineering specifications define the typical envelope of a FAIZEAL robot hip joint motor rotor. Every parameter can be customized to the specific requirements of your robot platform, your hip joint motor design, and your target performance metrics.
The outer diameter of a typical robot hip joint motor rotor falls in the range of 40 millimeters to 80 millimeters, with no upper engineering limit beyond what is practical for the robot’s hip joint envelope. Smaller outer diameters in the 30 to 40 millimeter range are used for compact humanoid robot hip joint designs and for some quadruped robot hip joints where the leg geometry constrains the actuator diameter. Larger outer diameters up to 100 millimeters or more are used for high-torque humanoid robot hip joints and for industrial humanoid robot platforms where the hip actuator envelope is less constrained.
The inner diameter of the robot hip joint motor rotor is customer-specified and is typically defined by the bearing seat diameter and the motor shaft diameter. The back-iron inner diameter sets the maximum motor shaft diameter and the bearing selection.
The axial length of a single-disc robot hip joint motor rotor is typically in the range of 15 millimeters to 40 millimeters. For higher-torque hip joint designs, multiple rotor discs can be stacked axially with intermediate spacers to achieve total axial lengths of 60 millimeters to 100 millimeters or more.
The back-iron wall thickness of a FAIZEAL robot hip joint motor rotor is typically 2.5 millimeters to 6.0 millimeters, corresponding to 5 to 10 percent of the rotor outer diameter. This back-iron thickness is engineered to carry the magnetic return flux without saturating while maintaining the structural rigidity required for high-speed rotation.
The pole count of a robot hip joint motor rotor is typically 14, 16, 18, 20, 22, 24, or 26 poles, with custom pole counts available for specialized humanoid robot or quadruped robot hip joint designs. Higher pole counts reduce cogging torque and torque ripple at low operating speeds but increase the switching frequency requirement of the motor drive electronics.
The arc magnet segment tolerance of a FAIZEAL robot hip joint motor rotor is plus or minus 0.04 millimeters on arc width, plus or minus 0.02 millimeters on segment thickness, and plus or minus 0.01 millimeters on precision-grade slot width. These tolerances are critical for uniform magnetic field distribution and for low cogging torque in the finished robot hip joint motor.
The concentricity and runout of a FAIZEAL robot hip joint motor rotor is held to 0.02 to 0.05 millimeters total indicator reading at typical production grade and 0.01 millimeters total indicator reading at precision grade. This level of geometric control is required for direct-drive robot hip joint applications where any rotor eccentricity is transmitted directly to the output motion.
The air-gap flux density of a FAIZEAL robot hip joint motor rotor at a 1 millimeter air gap is typically 0.6 Tesla to 1.0 Tesla peak, depending on the magnet grade, the Halbach array configuration, and the specific rotor geometry. Higher air-gap flux density directly translates into higher motor torque constant and higher continuous torque output for the same stator winding current.
The torque density of a FAIZEAL robot hip joint motor rotor is typically 40 to 80 kilonewton-meters per cubic meter for a Halbach-optimized multi-disc stack configuration, which is substantially higher than the 25 to 40 kilonewton-meters per cubic meter achievable with conventional radial-magnetization robot hip joint motor rotors.
FAIZEAL robot hip joint motor rotors are manufactured from sintered neodymium iron boron (NdFeB) permanent magnet material, the strongest commercially available permanent magnet material in the world today. The sintered NdFeB material is produced by powder metallurgy, including jet milling of the NdFeB alloy to fine powder, pressing in a magnetic field to align the magnetic domains, vacuum sintering to full density, and aging heat treatment to optimize the magnetic properties.
The most common NdFeB grades used in FAIZEAL robot hip joint motor rotors are N42 for moderate-temperature applications, N42SH and N40UH for elevated-temperature humanoid robot hip joint applications, and N38EH or N35AH for the most demanding high-temperature robot hip joint designs. For applications where the maximum operating temperature exceeds 200 degrees Celsius, samarium cobalt (Sm2Co17 or SmCo5) permanent magnet material is recommended.
The back-iron of the robot hip joint motor rotor is manufactured from low-carbon steel such as 1010 or 1020 grade for standard applications, or from 316L stainless steel or 17-4 PH stainless steel for applications where corrosion resistance is critical. Titanium grade 2 back-iron is available for weight-sensitive humanoid robot hip joint applications.
The magnet segment surface treatment options for FAIZEAL robot hip joint motor rotors include electroless nickel plating (Ni), nickel-copper-nickel triple-layer plating (NiCuNi), zinc plating (Zn), epoxy coating, parylene coating, PTFE coating, and custom multi-layer coating systems. For robot hip joint applications where the motor operates in a sealed enclosure, electroless nickel plating is typically sufficient. For humanoid robot applications where the hip actuator may be exposed to moisture from perspiration or environmental humidity, epoxy or parylene coating is recommended for additional corrosion protection.
The humanoid robot hip joint is the most demanding application for a permanent magnet rotor in any robot platform. The hip joint must produce continuous torque to support the robot’s body weight during standing and walking, peak torque to lift the robot from a seated position or to recover from a stumble, and smooth low-speed torque for natural gait motion. FAIZEAL robot hip joint motor rotors for humanoid robot applications are typically configured with 18 to 26 poles, N42SH or N40UH NdFeB grade, tangential Halbach array with five or seven arc segments per pole pair, and a multi-disc stack configuration to achieve the required torque output in the available envelope.
The quadruped robot hip joint is similar to the humanoid robot hip joint in torque demand but typically operates at higher rotational speeds during trotting and galloping gait patterns. FAIZEAL robot hip joint motor rotors for quadruped robot applications are typically configured with 14 to 20 poles to balance torque smoothness against switching frequency, N42 or N48 NdFeB grade for moderate operating temperatures, and a single-disc or dual-disc stack configuration optimized for high-speed rotation.
The industrial robot hip joint, used in humanoid industrial robots and in collaborative robot platforms with hip articulations, typically operates at higher duty cycles and higher continuous torque than than humanoid robot or quadruped robot hip joints. FAIZEAL robot hip joint motor rotors for industrial robot applications are typically configured with 20 to 26 poles, N38UH or N38EH NdFeB grade for high-temperature continuous-duty operation, and a robust mechanical retention system including optional screw fixation for safety-critical industrial robot applications.
The bipedal robot hip joint, used in research humanoid robots and in lower-cost humanoid robot platforms, requires a cost-optimized permanent magnet rotor that delivers acceptable torque density at the lowest possible unit cost. FAIZEAL robot hip joint motor rotors for bipedal robot applications are typically configured with 14 to 18 poles, N42 or N48 NdFeB grade, and a single-disc configuration optimized for cost-effective volume production.
FAIZEAL provides full customization engineering support for every robot hip joint motor rotor project. Our engineering team begins each project with a magnetic circuit simulation in ANSYS Maxwell or COMSOL Multiphysics, using the customer-specified outer diameter, inner diameter, axial length, pole count, and air-gap geometry to optimize the Halbach array configuration for the target torque density, target efficiency, and target continuous-duty operating temperature.
Custom engineering options available for FAIZEAL robot hip joint motor rotors include custom outer diameter from 30 millimeters to 200 millimeters or more, custom inner diameter and bearing seat geometry, custom axial length and multi-disc stack configuration, custom pole count from 4 poles to 48 poles, custom arc segment count per pole pair from 3 segments to 9 segments, custom NdFeB grade selection from N35 to N54, custom back-iron material selection, and custom surface treatment specification.
Engineering deliverables for every robot hip joint motor rotor project include a magnetic circuit simulation report, a 2D or 3D CAD model of the proposed rotor geometry, a stack-up tolerance analysis, a thermal analysis at the target continuous-duty operating point, and a prototype fabrication plan with lead time and unit cost estimate.
Every FAIZEAL robot hip joint motor rotor is subjected to a comprehensive quality control and testing protocol before shipment. The inspection and testing protocol includes dimensional inspection of every critical feature using calibrated digital calipers, digital micrometers, and a coordinate measuring machine for precision-grade parts. Magnetic inspection includes surface flux density mapping at multiple axial and circumferential positions using a calibrated Hall-effect Gauss meter, automated peak flux distribution measurement using a multi-point scanning fixture, and visual inspection of the magnetic field pattern using magnetic viewing film to confirm the Halbach array configuration is correct.
Mechanical inspection includes concentricity and runout measurement on a precision lathe or air-bearing spindle, dynamic balance measurement to G1.0 or G0.4 balance grade depending on the customer specification, and surface finish inspection. For safety-critical applications including humanoid robot hip joints, every rotor is 100 percent inspected for magnetic uniformity and dimensional conformance before shipment.
