Subtitle: From magnetization tooling to assembly fixtures — how a magnetic semi-assembly is driven to micron-level tolerances
In the magnetic-assembly supply chain, the "semi-assembly" is a key concept. It refers to an integrated magnetic-circuit part where the magnets, steel back-iron (or steel shell), shaft sleeve (or bearing seat), and end ring (disc-type parts include a protective ring) are already assembled — but it does not include the stator, housing, windings, or the rest of the motor.
Why do customers increasingly buy semi-assemblies directly instead of bare magnets and assembling themselves? Three reasons. First, magnets are brittle; customer-side press-fit and bonding easily cause chipping and cracking. Second, multi-pole magnetization and arc-segment polarity alignment are specialized work the customer lacks tooling and capability for. Third, the semi-assembly's precision directly determines the machine's air gap and flux density — handing this block to the source factory means the "foundation" of machine performance is built at the source.
In other words, the assembly precision of the semi-assembly is the foundation of the machine's torque, efficiency, noise, and lifespan. If the foundation is unstable, no matter how good the motor design is afterward, it can't be recovered.
Many people think magnetization is "just magnetize it and done" — exactly the opposite. Magnetization is the source of precision for multi-pole magnetic assemblies; magnetize the wrong direction, under-magnetize, or offset the pole arc, and no amount of assembly afterward can save it.
FAIZEAL's key control points in precision magnetization include:
Multi-pole magnetization and pole-arc coefficient. Micro encoder rings can reach 16–64 pole pairs; joint-motor rotors commonly 16–48 poles. The pole-arc coefficient (the proportion of each pole along the circumference) is controlled within ±1°, directly determining whether the back-EMF waveform is near-sinusoidal or trapezoidal. For servo and robotics applications, a sinusoidal wave means smaller torque ripple.
Saturated magnetization field strength. NdFeB magnetization requires a pulse field strength of 2–3× its intrinsic coercivity Hcj to truly saturate. FAIZEAL's magnetizers match the field-strength curve by grade, avoiding the "looks magnetized but actually unsaturated" weak-magnet hazard.
Magnetization-direction precision. Radial, axial, skewed (to weaken cogging torque), and Halbach magnetization each have different tooling and positioning requirements. A 1° skew-angle deviation changes the cancellation effect of cogging torque.
Magnetization tooling and magnetic-circuit simulation. The magnetization coil, locating fixture, and magnetic shield are a set. Before making a new spec, FAIZEAL uses FEA to simulate the magnetic circuit, optimize coil turns, air gap, and shielding, minimize leakage and edge effects, then build the physical tooling.
Piece-by-piece flux verification. After each semi-assembly is magnetized, a flux mapper scans the air-gap flux density and waveform, intercepting weak magnetization, wrong pole count, and pole-arc deviation. This step is the backstop for "invisible precision."

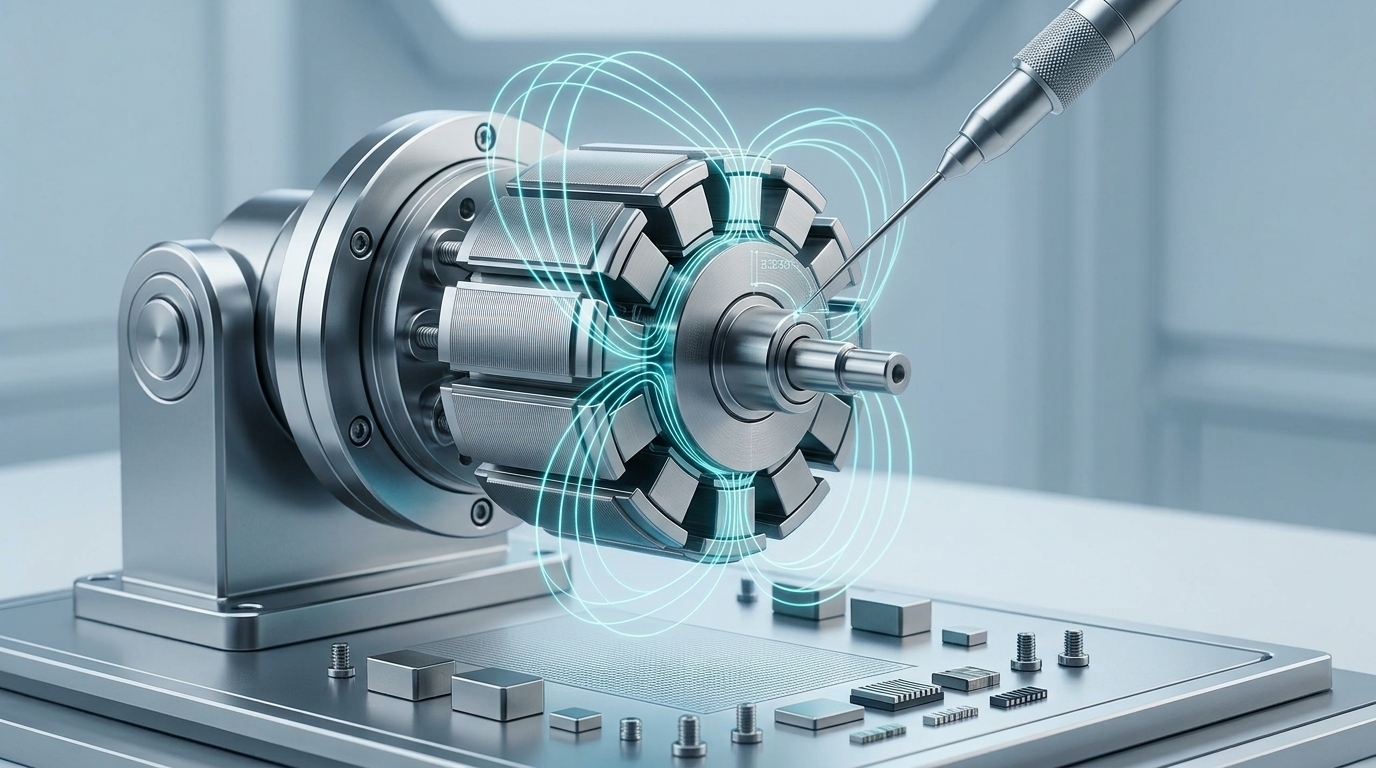

For multi-pole rotors, a single magnet block isn't the part — the full-circle array assembled from a dozen to dozens of sintered NdFeB arc segments is. The difficulty of multi-pole assembly: fitting十几 to几十 arc segments of sintered NdFeB, in N-S alternating or Halbach arrangement, precisely back into a circle.
FAIZEAL's approach:
Arc-segment polarity alignment. Each arc segment is sorted and marked by polarity before assembly, then placed strictly in N-S alternating or Halbach sequence — one segment wrong and the whole-circle flux is disordered.
Adhesive process. High-temperature structural epoxy bonds arc segments to back-iron; dispensing volume, bond-line thickness, and pressure-holding fixtures are controlled throughout. The bond line must fill yet stay thin (0.05–0.20 mm) — too thick means high internal stress, too thin means voids. For high-duty parts, a screw-through reinforcement plus bonding composite solution is used (an industry-hard problem; brittle magnet drilling needs ≤±0.05 mm precision and must avoid high-stress zones).
Inter-pole gap control. The inter-pole gap of arc segments is a double-edged sword: larger gap means better mechanical strength but more air-gap leakage; smaller gap means higher flux but stress concentration and cracking. FAIZEAL finds the balance window through FEA simulation, then locks it with precision tooling.
Post-assembly roundness. The roundness and concentricity after multi-segment assembly directly determine the subsequent air gap. Assembly tooling ensures consistent radial positioning of each segment, then runout is measured.
The air gap is the clearance between the semi-assembly's outer diameter and the stator inner diameter, typically on the order of 0.3–1.0 mm. The air gap is the semi-assembly's achilles' heel — because its effect on flux density is nonlinear: roughly double the air gap and the air-gap flux density drops on a roughly squared basis (B_g ∝ 1/g² order of trend), and the machine's torque and efficiency plummet with it.
FAIZEAL's means of air-gap control:
Geometric tolerances. The semi-assembly outer diameter's concentricity is controlled at 0.02–0.05 mm TIR (total indicator reading); roundness and cylindricity are managed in sync; the inner bore (shaft sleeve / bearing seat) is ground to H7 or tighter, ensuring fit with the shaft.
Surface roughness. The mating surface roughness is controlled at Ra 0.4–0.8 μm, avoiding local air-gap jumps from microscopic unevenness.
Air-gap uniformity measurement. Key dimensions are measured with optical/CMM; circumferential flux uniformity is measured with a flux mapper (FAIZEAL controls within ±3%), the two cross-validating whether the air gap is uniform.
Consequences of air-gap deviation. Non-uniform air gap directly causes torque ripple, increased cogging torque, and rising motor noise and vibration. The semi-assembly's air-gap uniformity is the prerequisite for whether the motor runs "smoothly."
No matter how good the process, without fixtures to land it, it's empty talk. Fixtures are the physical carrier of semi-assembly precision; FAIZEAL invests heavily in fixture design:
Magnetization fixtures. Coil bobbin, locating mandrel, and magnetic shield designed as one; repeat-positioning precision ensures consistent magnetization direction per batch; magnetic shielding reduces external interference and leakage.
Assembly fixtures. Press-fit / bonding locating fixtures ensure consistent radial and axial positioning of arc segments; pressure-holding fixtures keep the bond line at constant gap during curing; for disc-type parts, the concentricity of central sleeve and back-iron disc is guaranteed by dedicated fixtures.
Design principles. Repeat-positioning precision, thermal-deformation compensation (curing / press-fit temperature rise), and anti-impact (soft contact surfaces) are the three bottom lines. Brittle magnets must never contact hard-on-hard throughout.
Digitalization and quick-change. Fixtures are designed with CAD/CAM, key dimensions verified by simulation; multi-spec uses quick-change modules to shorten changeover time, supporting small-batch multi-variety robotics magnetic-component delivery.
Summarizing the above, FAIZEAL's key semi-assembly precision metrics are:
· Concentricity / runout: 0.02–0.05 mm TIR
· Roundness / cylindricity: corresponding outer diameter ±0.02–0.05 mm
· Flux-distribution uniformity: within ±3%
· Dynamic balance grade: G1.0 (high-speed parts) / G2.5 (general parts)
· Magnetization pole count / pole-arc precision: zero pole-count error, pole-arc coefficient ±1°
· Magnetization-direction deviation: radial / axial / skewed ≤1°
· Key dimensional tolerance: ±0.02–0.05 mm
· Bond-line thickness: 0.05–0.20 mm controllable
These metrics aren't single-point capabilities but a system result strung together by four links: "magnetization + assembly + air gap + fixtures."
Precision relies on system, not luck. FAIZEAL's full-process quality control for semi-assemblies includes:
Incoming inspection. Each batch of magnets is first checked for magnetic performance (Br, Hcj, BHmax), dimensions, and plating.
Post-magnetization inspection. A flux mapper scans each piece's air-gap flux density and waveform, intercepting weak magnetization, wrong pole count, pole-arc deviation.
Post-assembly inspection. Air gap, concentricity, runout, roundness measured with optical/CMM; bond-line strength sampled by pull test.
Dynamic balancing. Rotating semi-assemblies get G1.0/G2.5 dynamic balancing, no vibration under high-speed duty.
100% outgoing inspection. Critical safety parts (robot joints, pump inner rotors) are fully inspected piece-by-piece, not sampled. Each batch keeps traceability records.
Micron-level precision of semi-assemblies can't be achieved by manual feel. FAIZEAL's experience: process and fixtures must drive on two wheels.
Process-front simulation. Magnetization magnetic circuit, press-fit interference, adhesive stress, air-gap leakage — all calibrated by FEA simulation before building physical parts, moving "trial and error" to the computer.
Fixtures lock consistency. Same drawing, fixture-assembled dispersion is far lower than manual; batch consistency is then guaranteed. At million-unit scale, consistency is the life-and-death line of yield and cost.
Data traceability. From raw-material batch number, magnetization parameters, assembly fixtures to outgoing inspection, full-process data is logged; deviations can be quickly traced to the responsible link.
FAIZEAL's semi-assembly precision capability has landed in several typical products:
· Robot-joint Halbach rotors: multi-arc-segment Halbach assembly, Ø18–100 mm, G1.0 dynamic balancing, ±3% flux uniformity.
· Contactless magnetic-coupling inner/outer rotors: concentric and disc types, isolation-shell mating air gap strictly controlled.
· Linear-motor magnetic tracks: long-stroke multi-pole magnetization, flux uniformity determines thrust ripple.
· Magnetic-encoder rings: Ø8–20 mm, 16–64 pole pairs, pole arc ±1°, the precision source of position feedback.
A magnetic semi-assembly, from magnetization to assembly to air gap to fixtures, is a system engineering of precision strung across four links. FAIZEAL has precipitated this "process + fixture + inspection" combination into a reusable semi-assembly delivery capability — not a single black-tech, but landing every micron-level tolerance in fixtures and data.
For precision magnetization, multi-pole assembly, air-gap control, or magnetic semi-assembly customization, please feel free to reach out — FAIZEAL can provide technical support.
