A rotary magnetic switch is a manually operated, switchable permanent magnet device that lets you turn magnetic force ON or OFF simply by rotating a handle — no external power required. Unlike electromagnets that consume continuous electricity to maintain holding force, a rotary magnetic switch uses a mechanically redirected magnetic flux path to engage or disengage the field instantly.
In this guide, we will cover:
• How a rotary magnetic switch works internally
• Eight real-world application scenarios
• Five advantages over electromagnets and clamps
• How to customize force, shape, and materials
• Selection criteria for your application
A rotary magnetic switch (also called a switchable permanent magnet, manual magnetic chuck, or magnetic on-off switch) is a mechanical device that uses a rotating handle to redirect the magnetic flux inside a permanent magnet assembly.
In the OFF position, the magnetic flux is short-circuited inside the device body — the external magnetic field collapses to near-zero, allowing easy release of workpieces.
In the ON position, the flux is channeled through the working surface, generating strong holding force on any ferromagnetic material such as steel and iron.
The unique advantage is no electricity required to maintain holding force. The permanent magnet inside stays magnetized forever; only the flux path changes.
Internally, a rotary magnetic switch typically contains:
1. One or more high-energy permanent magnets (usually NdFeB N35 to N52 grade, or SmCo for high-temperature applications).
2. A movable pole piece or flux director connected to the rotating handle.
3. A fixed pole piece or magnetic yoke forming part of the housing.
4. A non-magnetic spacer or rotor that physically rotates between ON and OFF positions.
In ON state: the rotor aligns the magnets’ flux with the working face; the magnetic field projects outward; strong attractive force acts on ferrous material.
In OFF state: the rotor rotates 90 degrees (or another angle) to short-circuit the flux inside the device; the magnetic field collapses; the workpiece releases easily.
This mechanism is sometimes called the “magnetic circuit short-circuit” principle, and it is the same technology behind magnetic chucks used in surface grinders for decades.

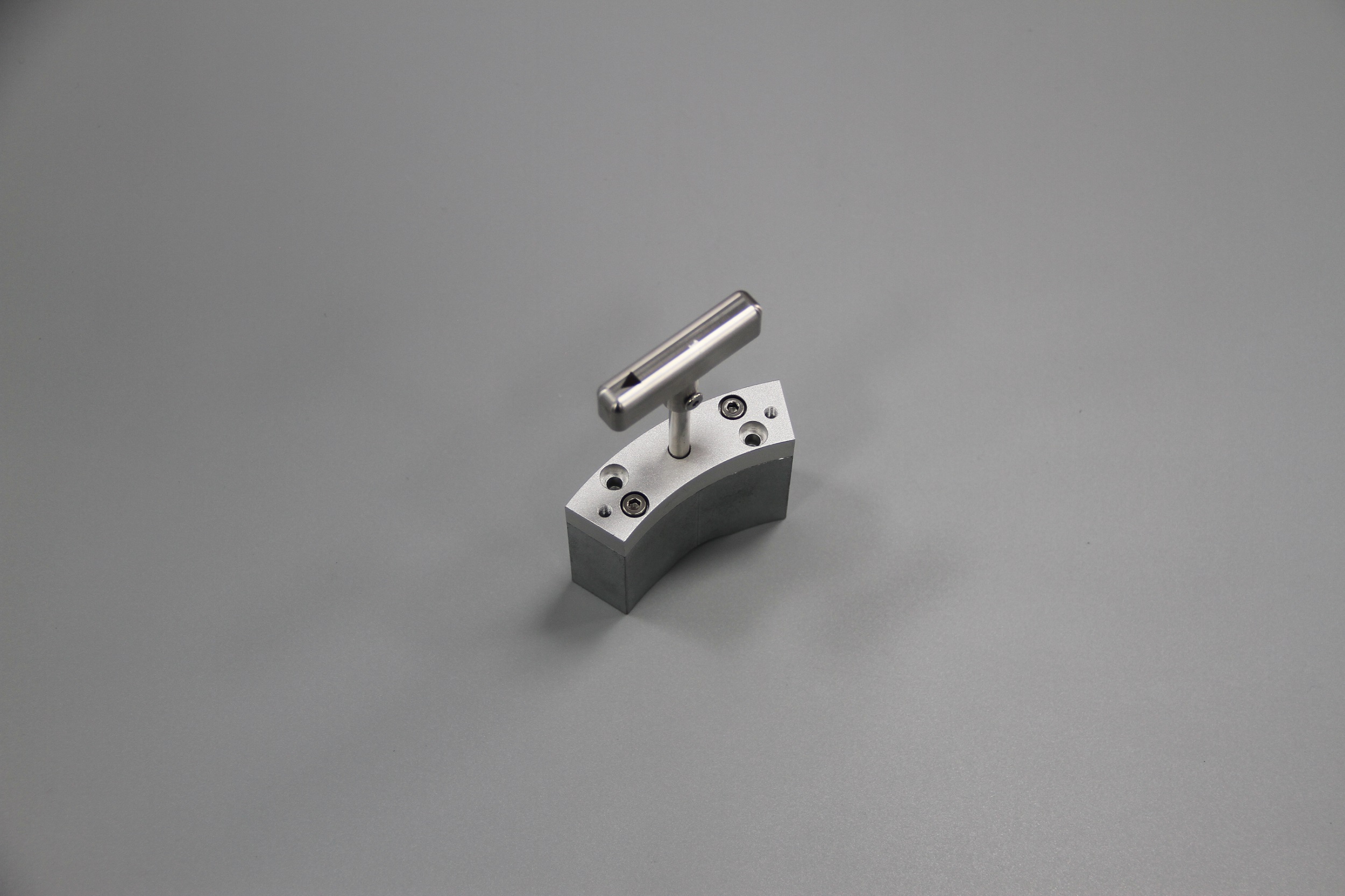

Replace mechanical clamps with a magnetic chuck switch to hold steel workpieces during milling, drilling, and grinding. Switching between parts takes seconds and no re-clamping is required. Ideal for five-axis CNC machining of small to medium-sized steel parts.
Surface grinders have used switchable permanent magnetic chucks for over 50 years. Our compact rotary-handle version brings the same technology to smaller workpieces and custom fixtures.
A magnetic gripper for robot arms needs instant ON/OFF control. Our switchable design lets the robot engage the magnet only when picking up ferrous parts — no electrical wiring, no driver boards, no failure modes from power loss.
Hold steel parts during MIG/TIG welding without clamps that interfere with the torch path. The instant-release feature makes loading and unloading parts fast in batch production.
For emergency exit doors, equipment guards, and cabinet doors where fail-safe, no-power magnetic locking is required. The handle can be turned manually from outside to release in seconds.
Replace pneumatic or hydraulic tool clamping with a manually operated magnetic chuck — eliminates air lines, hydraulic leaks, and seal maintenance.
Hold parts during manual assembly, dimensional inspection, or marking operations. Operators love the one-hand operation and instant release.
Hold surgical instruments, sample trays, or instrument trays during procedures — no power, no heat, no interference with sensitive equipment.
Permanent magnets hold force forever without electricity. No driver circuit, no coil heating, no energy bill. Critical for portable, battery-powered, or explosion-proof applications.
If power fails, electromagnets lose their holding force — dangerous for hanging loads. A rotary magnetic switch keeps holding until the handle is manually rotated, making it inherently safer.
Electromagnets heat up under continuous duty, which can deform precision workpieces. Permanent magnet switches stay thermally stable during long holding cycles.
A 90-degree or 180-degree handle rotation toggles force ON/OFF. Faster than loosening clamps and simpler than wiring up solenoids.
No moving electrical parts, no coil burnouts, no contact welding. Typical service life exceeds ten years with no consumables.
Every application is different. That is why our custom rotary magnetic switches are built to your specifications:
• Range: from a few Newtons up to several kilonewtons.
• Determined by magnet grade, magnet volume, and contact surface area.
• We tune the design until your required holding force is achieved — verified on calibrated test rigs.
• Flat-face, curved (concave or convex), arc-shaped, cylindrical, or fully custom geometry.
• Mounting hole patterns: M4 / M5 / M6 / M8 / UNC equivalents, or custom locations.
• Handle style: T-handle, lever, knob, or removable handle for safety.
• Magnet grade: NdFeB (N35 to N52, various temperature grades), SmCo (for 200°C plus), AlNiCo (for high-temperature stability).
• Housing material: aluminum alloy (lightweight), low-carbon steel (high flux containment), stainless steel (corrosion-resistant), or engineering plastic (electrical isolation).
• Surface treatment: anodizing, nickel plating, black oxide, powder coating.
• Temperature range: from -40°C to +200°C depending on magnet grade.
• IP rating: IP54 / IP65 / IP67 for wet or dusty environments.
• Holding surface treatments: smooth, knurled, or with locating features.
Unlike many magnetic switch suppliers who simply assemble bought parts, we manufacture every component in-house:
• NdFeB and SmCo magnet production — own sintering, machining, and surface treatment lines.
• CNC machining for housing and pole pieces — five-axis capabilities for complex arc shapes.
• Assembly and calibration — every switch tested on a pull-force rig before shipping.
• Quality control — full traceability from raw material batch to finished unit.
This vertical integration means:
• Faster lead times (no waiting on third-party suppliers).
• Tighter tolerances (we control every step).
• Better cost efficiency (no middleman markup).
Intellectual property protection (your design stays inside our facility).Parameter |
Range or Options |
Holding force |
5 N to 5,000 N (customizable) |
Magnet material |
NdFeB (N35 to N52), SmCo, AlNiCo |
Operating temperature |
-40°C to +200°C |
Housing material |
Aluminum, low-carbon steel, stainless steel |
Surface treatment |
Anodizing, Ni plating, black oxide, custom coatings |
Mounting |
M4 to M8 screws, custom patterns, or integrated bracket |
Handle type |
T-handle, lever, knob, removable |
Switching angle |
90° / 180° (application-dependent) |
Cycle life |
More than 50,000 ON/OFF cycles |
Certifications |
ISO 9001, RoHS, REACH |
Minimum order quantity |
From 5 units (prototypes) |
Lead time |
15 to 25 days for samples; 30 to 45 days for production |
Answer these five questions to specify your ideal switch:
1. What is the workpiece material? (Steel, iron, or other ferromagnetic alloy?)
2. What holding force do you need? (In Newtons; consider safety factor 2 to 3 times.)
3. What is the contact surface area available? (Larger area yields more force with the same magnet.)
4. Any environmental constraints? (Temperature, humidity, chemicals, clean room.)
5. How will the switch be mounted? (Through-holes, bracket, threaded boss?)
Send us your answers along with a sketch or CAD file — our engineering team will return a DFM-optimized proposal within 48 hours.
：What is a rotary magnetic switch and how does it differ from an electromagnet?
：A rotary magnetic switch is a mechanically switched permanent magnet that uses a rotating handle to engage or disengage the magnetic field. Unlike an electromagnet, it requires no electricity to maintain holding force — only a handle rotation to switch states.
：Can the holding force be customized?
：Yes. We customize holding force from a few Newtons up to several kilonewtons by tuning magnet grade, magnet volume, and contact surface area. Each design is verified on a calibrated pull-force test rig.
：What applications are rotary magnetic switches used in?
：Common applications include CNC workholding, surface grinding fixtures, robotic end effectors, welding positioners, magnetic locks for safety doors, quick-change tooling systems, and assembly line jigs.
：Do rotary magnetic switches require external power?
：No. They use permanent magnets internally. Only a manual handle rotation is needed to switch between ON and OFF states. Zero power consumption is a key advantage over electromagnets.
：What materials can a rotary magnetic switch hold?
：Any ferromagnetic material — steel, iron, nickel, cobalt, and their alloys. It will not attract non-ferrous materials such as aluminum, brass, copper, or plastic.
：Are there temperature limits for rotary magnetic switches?
：Yes — depending on the magnet grade. Standard NdFeB switches operate up to 80 to 120°C; high-temperature grades (N35SH to N52SH) reach 150 to 180°C; SmCo magnet switches can operate up to 250 to 350°C.
：Can the shape and mounting pattern be customized?
：Yes. We offer fully custom housing shapes (flat, curved, arc, cylindrical) and mounting hole patterns (M4 to M8 or custom). Send us your CAD or sketch for a DFM review.
：What is the typical lead time for a custom rotary magnetic switch?
：Prototypes: 15 to 25 days. Production batches: 30 to 45 days. Rush services are available for urgent projects.
：Is the switch fail-safe?
：Yes. In the ON state, the holding force is permanent and does not depend on external power. Only a manual handle rotation releases it. This makes it ideal for fail-safe applications where power loss must not drop the load.
：Do you offer OEM and ODM service for our own brand?
：Yes. We support OEM and ODM manufacturing with private labeling, custom packaging, and design modifications. Contact us for OEM program details.
