OEM Halbach Ring for Robot Finger Joints
Concentrated-Flux Permanent Magnet Rings for Humanoid Robot Hands, Grippers, Prosthetic Fingers
Sub-10 mm to 50 mm+ OD | Tangential Halbach Array | Joint-Grade Precision | Volume ProductionA humanoid robot hand is built from a chain of small, dense, repeatable joints. Each finger needs a few newton-meters of torque in a cylindrical envelope smaller than a thimble. The component that decides whether that joint can do its job is the Halbach ring pressed into the rotor of the joint motor.
The Halbach array is the only permanent-magnet arrangement that gives you both high air-gap flux density and a near-zero back-leakage outside the ring. In a finger joint, that means you can put the motor in a smaller housing, push the rotor speed higher, and still hold the joint's torque target. With conventional radial magnets you trade air-gap flux for back-iron thickness. With a tangential Halbach array the flux is concentrated where you want it and cancels where you do not.
We have been building Halbach magnet assemblies since 2011. For robot finger joints in particular, we know where most suppliers fail: tangential magnetization direction errors above 3 degrees, arc-segment chamfers that do not seat flush, back-iron concentricity that walks the rotor, coating thickness that throws the air gap, and one-off prototype tooling that cannot scale to a thousand-unit run. These are not exotic problems. They are the everyday engineering of joint-grade Halbach rings, and they are what we solve for every robot manufacturer we ship to.

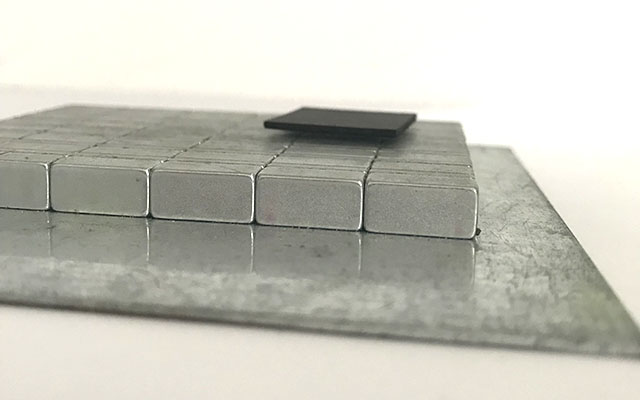

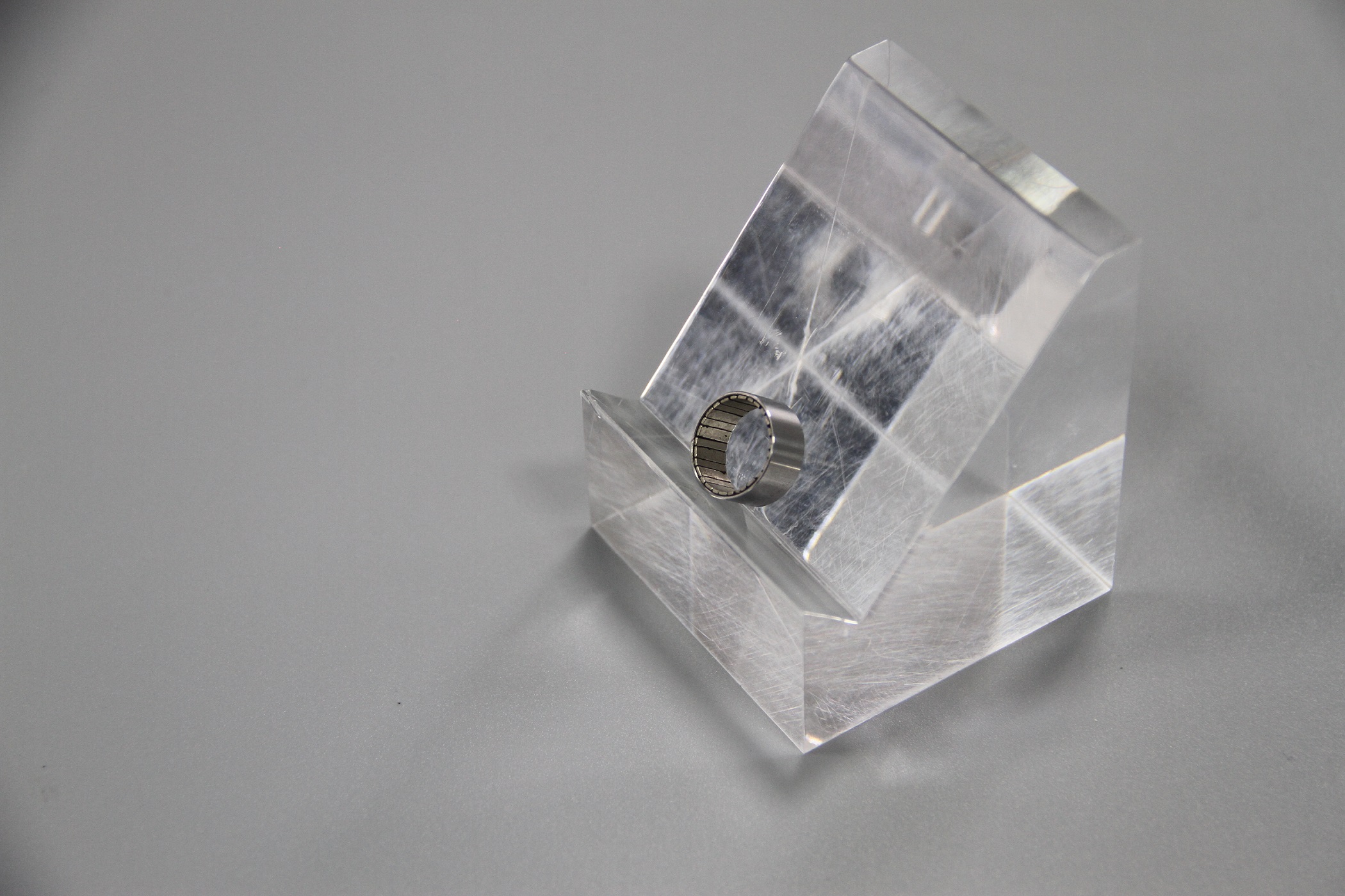

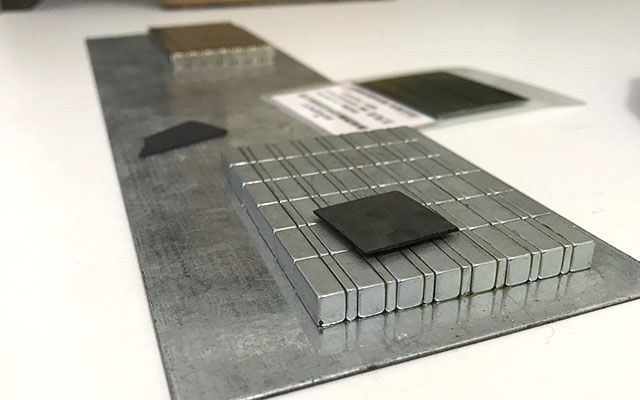

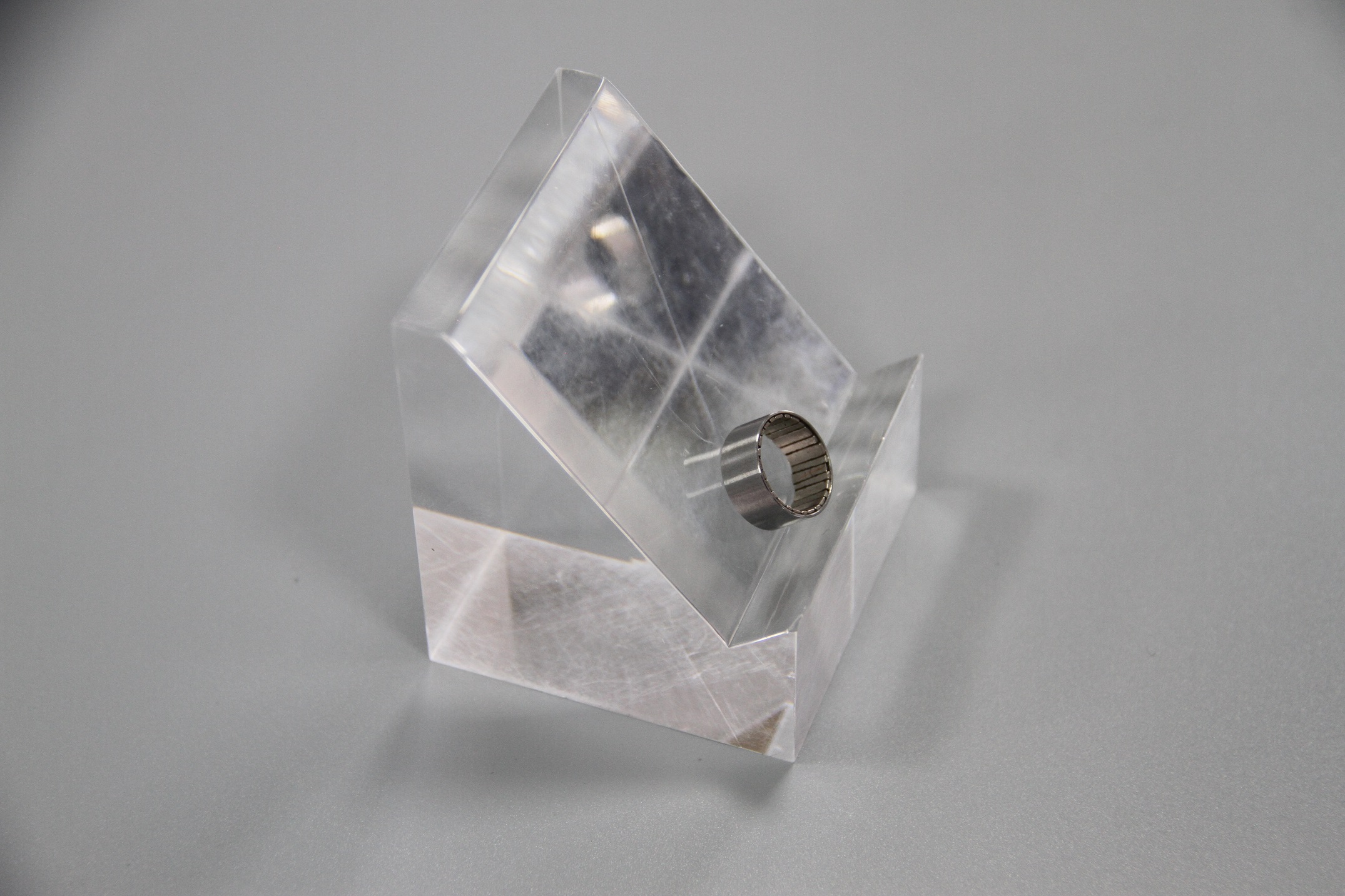

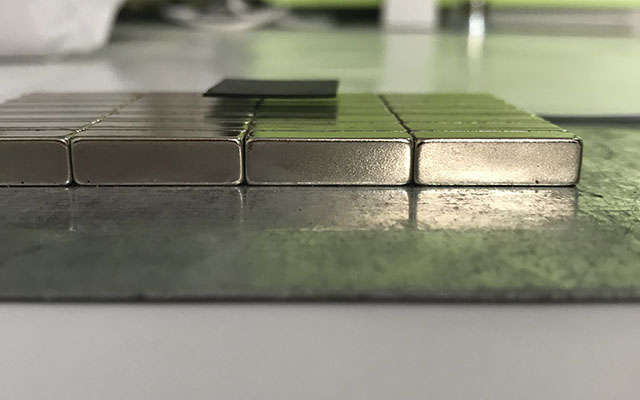

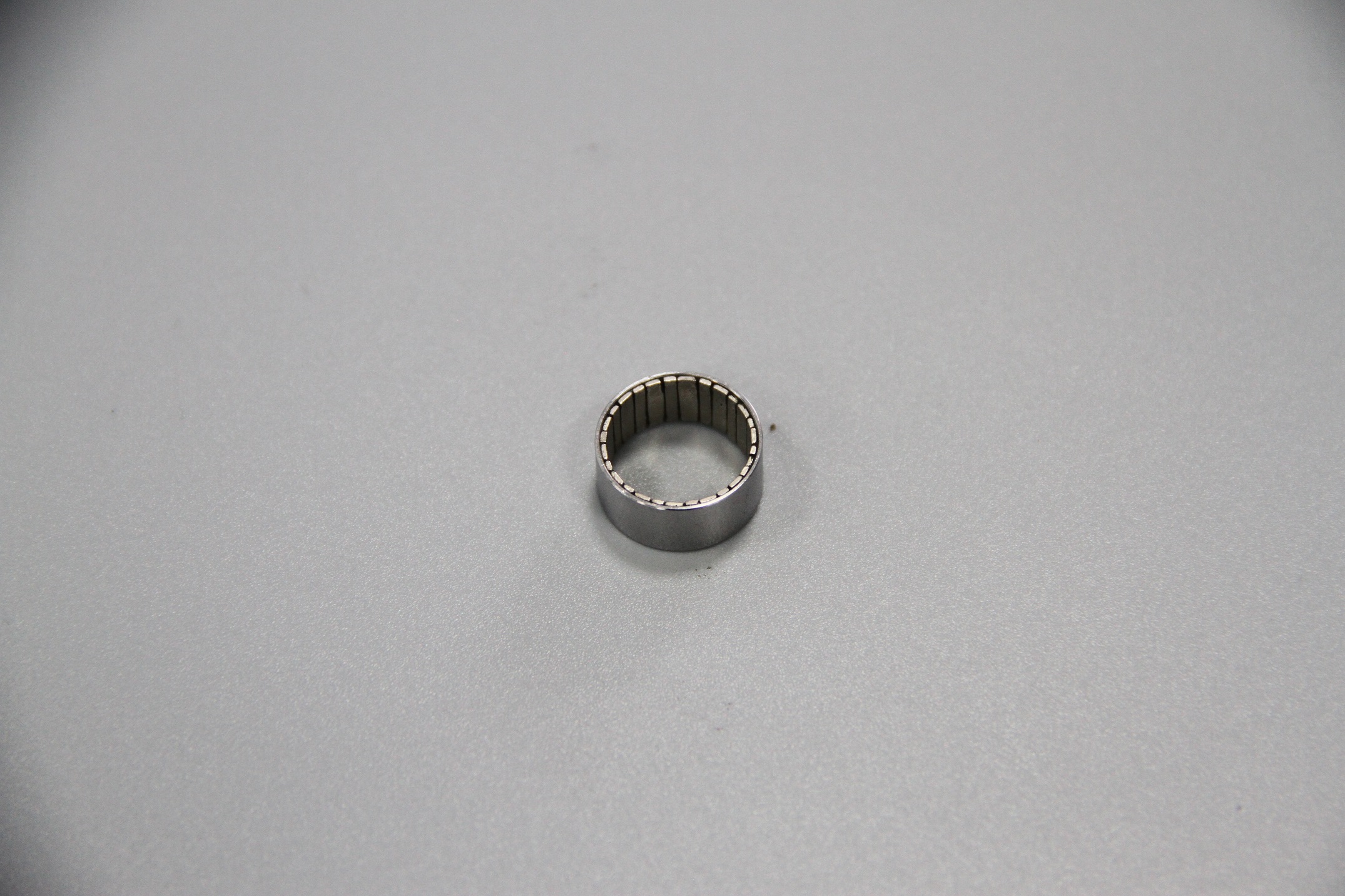

A robot finger-joint Halbach ring is a small, precision permanent-magnet rotor assembly designed to be press-fit (or bonded) into the rotor of a brushless DC / PMSM servo motor that drives a humanoid robot finger, prosthetic finger, robotic gripper, or other small robotic articulation. It combines a thin-walled steel back-iron sleeve with a tangential Halbach array of high-energy sintered NdFeB arc segments, precision-ground, magnetized in a multi-pole pattern, and assembled to a concentricity of typically 0.02-0.05 mm TIR.
A FAIZEAL finger-joint Halbach ring is typically delivered as:
• Tangential Halbach array: 3 / 5 / 7 / 9 arc segments per pole pair, with the central segment magnetized radially and the side segments at 45 degrees to the air gap
• Sintered NdFeB grade: N35 to N52; SH / UH / EH for high-temperature duty
• Optional SmCo for >200 C or harsh-chemistry applications (rare for finger joints, but available)
• Back-iron sleeve: low-carbon steel (10 / 20 / 1010 / 1020), 316L or 17-4PH stainless, or titanium Gr2 — wall thickness 0.5 to 3.0 mm
• Multi-pole configuration: 2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 poles, or any non-standard count you need
• Surface treatment: Ni (NiCuNi) / Zn / epoxy / parylene / PTFE / multi-layer coating on the magnet segments
• Optional: non-magnetic coating on the outer surface of the back iron to suppress eddy-current heating and to keep the bearing fit clean
• Dimensional control: arc width +/-0.03 mm, thickness +/-0.02 mm, concentricity / runout 0.02-0.05 mm TIR, precision-grade at 0.01 mm
Every ring is balanced to ISO 1940 G2.5 / G6.3, magnetized on a multi-Tesla pulse magnetizer, and 100% dimensionally inspected before pack-out.
There are three ways to put permanent magnets on a small motor rotor: radial, axial, and Halbach. For a finger joint, Halbach is the right choice almost every time. Here is the engineering reason:
A conventional radial array pushes flux out toward the stator, but it also pushes flux back into the rotor core. You need a thick back iron to carry that return flux, and the back iron adds mass and inertia to a joint that is supposed to be light and fast. A Halbach array self-shields: the side segments of the array are oriented to cancel the back-side leakage, so most of the flux shows up on the air-gap side. The result is higher air-gap flux density with less back iron, which is exactly what a finger joint needs.
Tangential magnetization — where each segment is magnetized in the plane of the ring rather than through its thickness — gives the cleanest Halbach geometry at small OD. We tune the segment count per pole pair (3 / 5 / 7 / 9) to your air-gap target and your torque target. 3-segment-per-pole is the most common for finger joints; 5- and 7-segment variants give incremental flux gains at the cost of tighter tolerance stack-up.
If you are benchmarking against a Chinese-made or a reference finger joint, we can reverse-engineer its Halbach geometry, simulate the air-gap field, and back-propose a drop-in. Send us the existing rotor, a magnetic field map, or a CAD model with the magnetic circuit spec.
• Humanoid robot finger joints — thumb, index, middle, ring, pinky, with 2 to 4 DOF per finger
• Robotic grippers and end-effectors that need compact, high-torque finger joints
• Prosthetic hands and bionic fingers — bionic limb manufacturers building human-scale articulating fingers
• Dexterous robot hands for assembly, pick-and-place, and human-robot collaboration
• Collaborative robot (cobot) small articulation joints — wrist, knuckle, ankle where the rotor is small
• Surgical and medical robot joints — da Vinci-class manipulators, capsule endoscopes, steerable catheters
• Drone gimbal motors and small UAV joint motors (Halbach rings in 14-30 mm OD range)
• Haptic device and force-feedback actuators
• Optical / lens positioning stages and high-precision rotary stages
• Any small PMSM / BLDC rotor where 0.4-0.9 T air-gap flux density and tight concentricity drive the design
If your robot's finger or small joint motor is between roughly 8 mm and 50 mm OD, we have probably already built a Halbach ring in that size range. Send us your existing rotor or your target spec, and we will return a feasibility note within 2 working days.
Most finger-joint Halbach rings are not bought from a catalog. The robot manufacturer has a target torque, a target OD/ID envelope, a target cogging-torque limit, and a target rotor mass. We engineer the Halbach ring to those targets, not to a stock part.
• No upper size limit on the engineering range. From sub-15 mm micro-finger Halbach rings to 50 mm+ knuckle / wrist rings
• OD / ID / axial length / wall thickness all per your drawing
• Need a non-standard pole count, an odd segment-per-pole count, or a non-symmetric stack? Tell us the magnetic spec, we reverse-engineer the geometry
• N35 to N52 standard; SH / UH / EH for high-temperature joints (under-hood, near actuator)
• SmCo option for >200 C steady-state or for harsh-chemistry environments
• HcJ, urec, and irreversible loss budget computed for your max operating temperature, with margin
• Grain-boundary diffusion (GBD) on heavy-rare-earth grades for thinner walls at the same flux
• 3 segments per pole pair: most common for finger joints, clean magnetization, fast production
• 5 segments per pole pair: incremental flux gain (~5-8%), used when the air gap is constrained
• 7 / 9 segments per pole pair: highest flux density, tightest tolerance, used in precision stages and surgical robots
• Custom segment count available for asymmetric pole arcs or for special motor control waveforms
• Low-carbon steel (10 / 20 / 1010 / 1020): the workhorse for most finger-joint applications
• 316L / 17-4PH stainless: for medical, food, or moisture-exposed joints
• Titanium Gr2: for the lightest finger joints, where mass at the rotor directly hurts dynamic response
• Wall thickness 0.5-3.0 mm, optimized to your back-iron saturation target — not a catalog default
• Optional non-magnetic coating on the OD of the back iron to suppress eddy-current heating in the stator
• Arc-segment width: +/-0.03 mm standard, +/-0.01 mm precision
• Arc-segment thickness: +/-0.02 mm standard, +/-0.01 mm precision
• Concentricity / runout: 0.02-0.05 mm TIR typical; 0.01 mm achievable on precision grade
• Surface finish on magnet ID (air-gap face): Ra 0.4-0.8 um typical, lapped to Ra 0.2 um on precision builds
• 100% dimensional inspection with batch traceability per robot manufacturer requirement
• Ni (NiCuNi), Zn, epoxy, parylene, PTFE, multi-layer — your corrosion environment drives the choice
• Pulse magnetized in a custom multi-pole fixture up to multi-Tesla
• Optional flux-map inspection per batch (Hall-probe scan of the air-gap field)
• Optional skew magnetization to reduce cogging torque
A Halbach ring is half magnetic circuit, half mechanical assembly. The decisions that drive your joint's performance are made before the first arc segment is ground:
• Segment count per pole pair: 3 / 5 / 7 / 9. This is the largest single contributor to air-gap flux density. We size it to your torque and OD envelope
• Magnetization angle precision: tangential-magnetization direction error is the most common cause of cogging. We hold direction within +/-2-3 degrees per segment, batch-verified by Hall-probe scan
• Back-iron wall thickness: must be thick enough to carry the return flux without saturating, thin enough to keep mass and inertia low. We design to your back-iron flux density target, not a default
• Air-gap stack: the ring ID, the magnet thickness, and the back-iron wall together define the air-gap stack. We coordinate the whole stack with your stator design, not in isolation
• Concentricity: ring-to-shaft concentricity drives cogging and torque ripple. We machine the back-iron ID to a single reference datum and assemble to that, not to the OD
• Cogging and torque ripple: skew-magnetization, segment-chamfer optimization, and arc-width tuning are tools we routinely use to drop cogging into the 1-3% range
We do not outsource the steps that define your joint's torque:
• Sintered NdFeB (and SmCo) production, grain-boundary diffusion, and multi-Tesla pulse magnetization through controlled, audited supply chains
• Multi-axis grinding of arc segments to +/-0.03 mm (precision +/-0.01 mm), with batch-level CMM inspection
• CNC machining of back-iron sleeves in low-carbon steel, 316L, 17-4PH, and titanium — boring, ID-grinding, balancing features
• Tangential Halbach assembly on a custom magnetizing fixture, with magnetization angle verified by Hall-probe scan on every production batch
• Surface treatment: Ni, Zn, epoxy, parylene, PTFE, or multi-layer coating stacks
• 100% dynamic balance to ISO 1940 G2.5 / G6.3 on in-house balancer
• 100% dimensional and magnetic inspection with full traceability per batch — magnet lot, sleeve material cert, balance report, optional flux map
• Volume production lines: 100 to 100,000+ units per month per assembly line, with cycle time quoted per part
All values are typical ranges — every parameter is engineered to your joint spec.
Parameter / 参数 |
Typical Range / 典型范围 |
参数 |
典型范围 |
Outer Diameter (OD) |
Sub-15 mm - 50 mm+ (no upper limit on engineering range) |
外径 |
15 mm 以下 - 50 mm+(工程范围无上限) |
Inner Diameter (ID) |
Customer-specified; back-iron ID defines the motor rotor envelope |
内径 |
按客户指定;背铁内径即电机转子包络 |
Axial Length |
3 mm - 30 mm typical; 50 mm+ for joint-stack builds |
轴向长度 |
3 mm - 30 mm 典型;多环堆叠可至 50 mm+ |
Wall Thickness (back iron) |
0.5 mm - 3.0 mm (10-30% of OD) |
壁厚(背铁) |
0.5 mm - 3.0 mm(外径 10-30%) |
Magnet Grade |
N35 / N38 / N42 / N48 / N50 / N52; SH / UH / EH; SmCo on request |
磁钢牌号 |
N35 / N38 / N42 / N48 / N50 / N52;SH / UH / EH;SmCo 可选 |
Magnet Array |
Tangential Halbach (3 / 5 / 7 / 9-segment per pole pair) |
阵列形式 |
切向 Halbach(每对极 3 / 5 / 7 / 9 段) |
Pole Count |
2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 / custom |
极数 |
2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 / 定制 |
Back-Iron Material |
10 / 20 / 1010 / 1020 carbon steel; 316L / 17-4PH stainless; titanium Gr2 |
背铁材质 |
10 / 20 / 1010 / 1020 碳钢;316L / 17-4PH 不锈钢;钛 Gr2 |
Magnet Segment Tolerance |
Arc width +/-0.03 mm; thickness +/-0.02 mm; precision +/-0.01 mm |
磁瓦公差 |
弧宽 +/-0.03 mm;厚度 +/-0.02 mm;精密级 +/-0.01 mm |
Concentricity / Runout |
0.02 mm - 0.05 mm TIR typical; 0.01 mm on precision-grade |
同轴度/跳动 |
0.02 mm - 0.05 mm TIR 典型;精密级 0.01 mm |
Surface Treatment |
Ni (NiCuNi) / Zn / epoxy / parylene / PTFE / multi-layer; non-magnetic coating on back iron |
表面处理 |
Ni(NiCuNi)/ Zn / 环氧 / 派瑞林 / PTFE / 多层;背铁非磁镀层可选 |
Flux Density at Air Gap |
0.4 T - 0.9 T peak (1 mm air gap, geometry dependent) |
气隙磁密 |
0.4 T - 0.9 T 峰值(1 mm 气隙,取决于几何) |
Torque Density |
Up to 25-40 kN.m/m^3 (Halbach-optimized stack) |
转矩密度 |
可达 25-40 kN.m/m^3(Halbach 优化堆叠) |
1. 10 years of magnet-component engineering — NdFeB, SmCo, Halbach arrays, magnetic couplings, inner and outer rotors, pot magnets, joint magnet assemblies. We do not subcontract magnetic know-how
2. Deep, specific experience in robot joint Halbach rings — finger joints, knuckle joints, wrist joints, cobot small joints. We have shipped Halbach rings in OD ranges from 8 mm to 200 mm+ to robot and motor manufacturers
3. Tangential Halbach geometry is a core competency — 3 / 5 / 7 / 9 segments per pole pair, magnetization direction held within +/-2-3 degrees, cogging torque pushed into the 1-3% range
4. Joint-grade precision — arc-segment tolerance to +/-0.01 mm, concentricity to 0.01 mm TIR, air-gap face finish to Ra 0.2 um on precision builds
5. Custom is our default — every Halbach ring BOM is open to your torque, speed, temperature, mass, and cogging constraints
6. End-to-end in-house production — magnet powder, arc-segment grinding, back-iron CNC, Halbach assembly, surface treatment, balance, magnetization, and 100% inspection all in one factory
7. Volume production ready — 100 to 100,000+ units per month per line, with cycle time and yield quoted per part, and a 5-year material and process reproducibility guarantee per fleet reference
8. Reverse-engineering capability — send us an existing Halbach rotor, a magnetic field map, or a CAD model with the magnetic circuit spec; we back-propose a drop-in, including a cogging and torque-ripple estimate
9. Standards-ready documentation — REACH / RoHS / CE; ISO 1940 balance report; magnet lot and sleeve material certificates per batch
A Halbach array is a permanent-magnet arrangement in which the magnetization direction of each segment rotates through 360 degrees over one pole pair. The result is that the flux from the array is concentrated on one side (the air-gap side, toward the stator) and cancels on the other side (the back-iron side, toward the rotor shaft). For a robot finger joint, that means higher air-gap flux density with less back-iron mass — exactly the trade-off a finger joint needs to hit its torque target in a small, light envelope.
Radial magnetization magnetizes each segment through its thickness, from the inner surface to the outer surface. Axial magnetization magnetizes along the shaft axis. Tangential Halbach magnetizes each segment in the plane of the ring, with the direction rotated through the pole pair. For small finger-joint Halbach rings, tangential magnetization gives the cleanest geometry, the highest air-gap flux density, and the most repeatable production process.
We deliver Halbach rings from sub-15 mm (micro-finger applications, capsule endoscope joints, haptic devices) to 50 mm+ (knuckle / wrist joints, cobot small joints). For larger Halbach arrays up to 200 mm+ — for humanoid knee, hip, or shoulder joints — we have a separate engineering thread and ship those as well. The finger-joint range below 50 mm OD is our highest-volume production.
3 segments per pole pair is the most common for finger joints — clean magnetization, fast production, good flux density. 5 segments per pole pair gives ~5-8% more flux and is used when the air gap is constrained. 7 / 9 segments per pole pair give the highest flux density and are used in precision stages and surgical robots where every tenth of a millimetre of air gap matters. We help you choose per your torque and OD envelope.
We hold magnetization direction within +/-2-3 degrees per segment on a custom magnetizing fixture, and verify the result on every production batch with a Hall-probe air-gap field scan. This is the single biggest contributor to low cogging and low torque ripple in a Halbach rotor.
Standard tolerance: arc width +/-0.03 mm, arc thickness +/-0.02 mm, ring concentricity / runout 0.02-0.05 mm TIR. Precision grade: arc width +/-0.01 mm, concentricity 0.01 mm TIR, air-gap face lapped to Ra 0.2 um. Precision grade is the right choice for surgical robots, optical stages, and any application where cogging below 1% matters.
Low-carbon steel (10 / 20 / 1010 / 1020) is the workhorse for most finger-joint applications — it is the most magnetically efficient, the lowest cost, and the easiest to machine. 316L or 17-4PH stainless is used for medical, food, or moisture-exposed joints. Titanium Gr2 is used for the lightest finger joints, where rotor mass directly affects the dynamic response. We help you choose per your mass, environment, and magnetic targets.
NdFeB is the default — higher torque density, lower cost, suitable for -40 to +80 C (N-grade) or +200 C (EH-grade). SmCo is the choice when (a) sustained operating temperature is above ~180 C, (b) the joint is in a harsh-chemistry or sterilizable environment, or (c) the customer requires the higher Curie temperature for safety margin. SmCo is rare for finger joints but is available for medical / downhole / aerospace builds.
Yes. Cogging is driven by the slotting in the stator, the arc-width of the magnets, the chamfer on the magnet edges, the air-gap uniformity, and the magnetization direction. We tune the magnet side of that stack — arc width, chamfer, magnetization direction, optional skew-magnetization — to hit your cogging target. We have shipped Halbach rings with cogging in the 1-3% range for high-precision robot joints.
We run dedicated Halbach assembly lines. Capacity per line is 100 to 100,000+ units per month, with cycle time and yield quoted per part. For a robot manufacturer shipping 1,000-10,000+ finger Halbach rings per month, we can typically scale capacity within 60-90 days of order placement.
Prototype / sample Halbach ring: 10-20 working days after drawing freeze. Pilot run: 20-30 working days for 100-1,000 units. Volume production: 30-60 working days per batch, scaled to your forecast. Repeat orders from a frozen design typically ship in 15-30 working days.
Yes. We offer scheduled batch-rotation stock for OEM customers, with a 5-year material and process reproducibility guarantee per fleet reference. Tell us your weekly / monthly offtake and your safety stock target, and we will hold the right number of finished Halbach rings in our bonded warehouse for call-off.
Send us:
• OD x ID x axial length of the Halbach ring (or your existing rotor drawing / OEM model)
• Pole count, segments per pole pair (3 / 5 / 7 / 9), and target air-gap flux density
• Joint motor torque target, max speed, and cogging / torque-ripple budget
• Operating temperature range and joint environment (medical, food, outdoor, etc.)
• Magnet grade preference (N35-N52 / SH / UH / EH / SmCo) — or let us specify
• Back-iron material and wall thickness (or let us specify to your mass target)
• Surface treatment preference (Ni / Zn / epoxy / parylene / PTFE / multi-layer)
• Required tolerance class (standard / precision) and balance grade (G2.5 / G6.3)
• Annual volume target and any required certifications (REACH / RoHS / CE / medical)
We typically return a feasibility and indicative pricing note within 2 working days, and a firm quotation within 5-7 working days.
